DGET-1000L
DGET
8438400000
Beer has as long a history as human civilization. It first appeared in human life before other alcoholic drinks. After the technology of brewing beer spread to Europe, it developed rapidly. Through the continuous improvement and development of europeans, beer has become one of the most popular drinks in the world. When we say beer, of course, beer equipment is essential.
Beer brewing equipment can be designed according to the requirements of different brewers.The whole set commercial used beer brewing equipment includes miller, mash system, fermentation system, cooling system, control system, cleaning system, filtration system, sterilizer, filling line (bottle, barrel, can), packaging.
The two most important steps in beer production are beer mashing and fermentation.So let's focus on the equipment needed for these two parts.
| Mashing system/beer brewhouse |
Beer mashing is one of the most important processes in the preparation of wort. The equipment required is mash tank, lauter tank, boiling tank and whirlpool tank. Of course, in order to improve mashing efficiency, most customers will choose a hot water tank to prepare hot water in advance,which can save time.

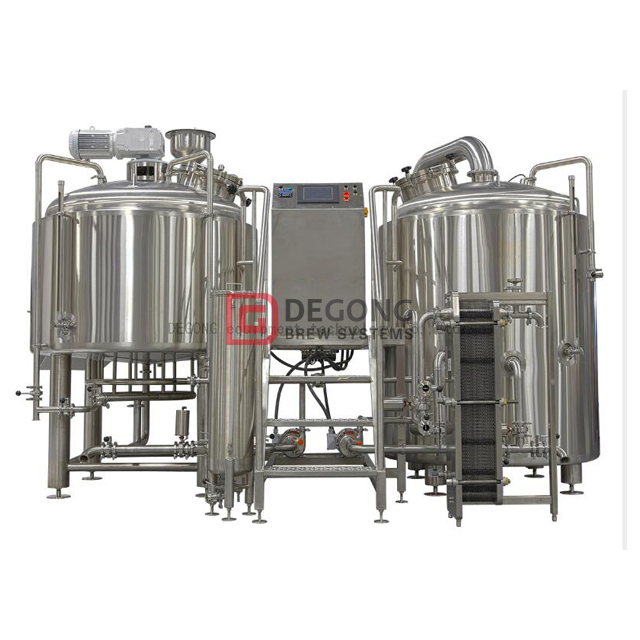

1000L Stainless steel beer mashing brewing system
Normal configuration of mashing system
| Heating method of brewhouse | |
| Steam heating | More efficiency,suitable for 1000L and more than 1000L brewhouse |
| Electric heating | Save cost,suitable for brewhouse under 1000L |
| Direct fire heating | If electric and steam is not convenient for the brewery,so we can choose direct fire heating |
| Main technical parameter | |
| Material | Stainless steel 304,Inner thickness:3mm,Outer thickness:2.0mm,Jacket thickness:2.0mm |
Inner surface treatment: | welds grinded to Ra 0.4µm without dead corner. |
Insulation | Polyurethane-thickness 100 mm |
Jacket Pressure | design pressure 0.3 MPa, working pressure <0.2 MPa.(If steam heating) |
| Cleaning | Top mounted 360° coverage CIP spraying ball and port |
Other features | Hopper and grist hydrato US made top mounted VFD controlled mixing agitator,raker and pump Top many with tempered sight glass Interior LED lights Side man way for spent grain removal process Crossbar support system for false bottom Automactic spent grain removable system Tangential whirlpool port |
Raker
Raker Grist Hydrator
Back wash PIPE

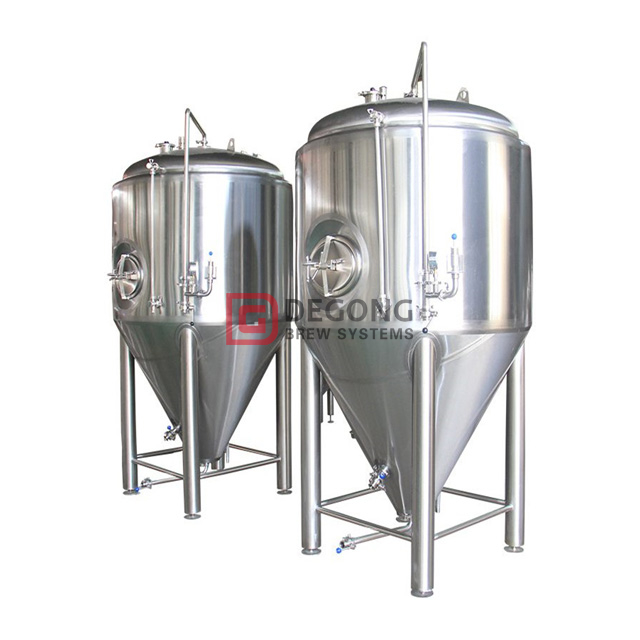

| Beer fermentation tank/beer fermenting vessels |
Fermentation tanks, or more commonly fermenters, are key components in beer brewing. Fermenters are specialized tanks designed to precisely control temperature and maintain the optimal conditions for fermentation, which occurs once the wort has been transferred from the brewhouse to the fermenter; a conical-bottom design is highly recommended for fermenters allowing for easier yeast harvesting.
| Beer fermentation tank technical parameter |
100% food-grade 304 and 316 stainless steel |
All fermenters are rated to 0.15MPa (1.5 bar) operating pressure |
Two-zone glycol jacketing,and 60-degree conical cone |
Top-mount manway (Meanwhile optional side-mount configurations available) |
Complete thermal insulation of side walls and cones |
All insulation is fire retardant fiber cloth (not foam) |
All welds are blended and finished to a sanitary food-grade finish |
Every fermenter is equipped with: racking arm pressure relief valve blow-off/ clean-in-place (CIP) tube CIP spray ball sample valve butterfly valves TC clamps, gaskets and clamps 90-degree elbows optional rupture disc assemblies available |
Sample valve
Racking arm valve
Themometer valve
Breathing valve
Side manhole
| Exhibition |
| Certification |
FAQ
1.Electric power:It can be customized according to customer’s local condition.Such as 220V,230V,380V,430V; 50HZ or 60HZ;3 phases or single phase.
2.Price:Every customer has different requirement,so we need to confirm your requirement first,then give you price.Such as some customer require steam heating,some customer require electric heating;Some customer require 2 vessels brewhouse and some customer require 3 vessels brewhouse;Some customer require top manhole for fermentation tank and some customer require side manhole.So even both 1000L equipment,there price are different.So we need to confirm your detailed requirement first.
3.How to see if your company is trust?
We have sold many equipment to EURO.We can give you our customer’s contact information,you can listen to their advice or visit their brewery.
4.How should we do if we don’t know how to brew beer and install equipment?
We will dispatch engineer to install equipment and teach you how to brew beer freely.
If you have interest,please get in touch with me freely.
