DGET- 1000L
DGET
8438400000

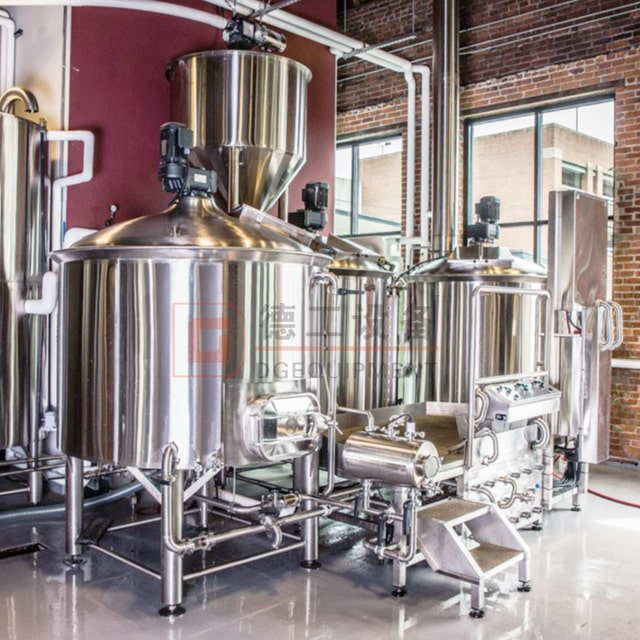

| Beer brewhouse introduction |
Our 1000l beer equipment is an excellent small to medium brew pub system! Get your microbrewery or nanobrewery started with variety and flexibility. This 5bbl brewing system is easily expandable as demand grows, and is an ideal brewing system for micro brewery owner, restaurateur and artisan. Our 5bbl brewing system accord with Germany TUV certification that meet the internationally recognized Standards for Safety, which keeps your brewers safe and avoids major hassles at inspection time.
Basic configruation
1.Malt miller
Two roller malt mill is designed for grinding of malt.It has a storage bin,the ability to adjust the bite between the rollers.Rotation of the rollers carries out by belt gearing,driven by an electric motor.Power consumption:1.5kw,300-500kg/h
2.Mash/boiling tun
It is designed for mashing and boiling of wort with hops.It has a mixing machine,driven by an electric motor.The tank has heating steam jacket which covers the cylinder and its bottom.Mash tun is thermally insulated with 100mm rock wool.Temperature sensor located in the cylindrical part of the tank.
3.Lauter tank
It is intended for filtration of mash-separation of its solid and liquid.Lauter tank is carried our through removable sieve,consisting of several individual segments.it is also has a raker,driven by an electric motor.It is thermally insulated with 100mm rock wool.Temperature sensor located in the cylindrical part of the tank.The tank has a rectangular hatch in the cylindrical part for spent grain removable.
4.Whirlpool tank
It will produce hot coagulant when the wort is boiled in a boiling tank. It is intended for the separation of hot solidification and clear wort.There is a tangential port on the cylindrical conical tank.It is thermally insulated with 100mm rock wool.Temperature sensor located in the cylindrical part of the tank.
5.Hot water tank
Hot water tank is intended for heating water,which is used to cover the sieve before filtration in lauter tank(deaeration of space beneath the sieve) and washing of grains.
6.Wort pump
It is intended for pumping of mash and wort between tanks of the brewhouse(mash tun-lauter tun-boiling tun-whirlpool tun) at different stages of brewing process.PowerL0.75kw,3t/h,18m lifting
7.Plate heat exchanger
It is double stage plate heat exchanger.It is intended for cooling of wort before it pumping into fermentation tank.The cooling in the first stage is carried out with cold water and with the glycol water in the second stage.
Beer mashing details
| Beer fermentation tank introduction |
Fermentation tank
Beer fermentation tank can be individually temperature controlled through glycol jackets and are mostly equipped with accessories such as over-pressure and under pressure valve(PVRV), CIP arm, sanitary sample calve, manway, etc, The design of fermenters is based on our vast beer knowledge and we combine fermentation and maturation in the same vessel is very important. When calculating your fermenting& lagering capacity and configuration, sufficient time for fermenting and lagering to produce quality beers must be taken into consideration.
Cooling system
Cooling Unit is intended for cooling of the refrigerant solution,which cools is in turn the second stage of heat exchanger and fermentation tank.
Include refrigeration unit,glycol water tank,circulate pump

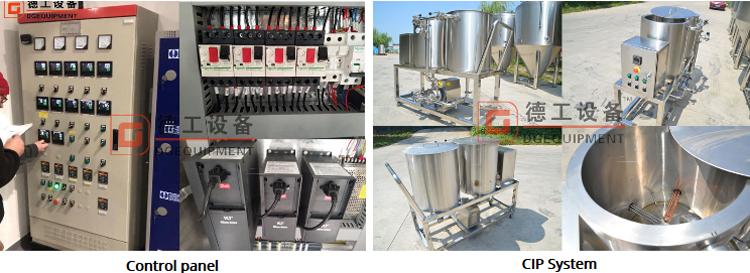

Control panel
The control panel is intended for control of all brewing processes.
On/off of the motor/pump
Temperature control
Refrigeration unit control
Cip control
| Company information |
If you have interest in beer brewing equipment,welcome to contact me freely
