1000L Industrial Stainless Steel Automated Craft Beer Brewing Equipment for Sale
Home » Brewery Equipment » Beer brewery equipment » 1000L Industrial Stainless Steel Automated Craft Beer Brewing Equipment for Sale

Product Detail

Share to:

1000L Industrial Stainless Steel Automated Craft Beer Brewing Equipment for Sale

Degong manufactures custom, high-efficiency brewing systems tailored to your unique brewing needs and production space. We offer steam-powered, electric, and direct fire brewhouses in 2, 3, 4, and 5-vessel configurations. Because We know what you want, We know how to help you brew beer, We know brewer's need best.
Choose Degong, Choose the finest beer.

Insulation:
Material:
Certificate:
Maximum pressure:
Voltage:
Quantity:
  • DGET-1000L
  • DEGONGET
  • 8438400000


Degong manufactures custom, high-efficiency brewing systems tailored to your unique brewing needs and production space. We offer steam-powered, electric, and direct fire brewhouses in 2, 3, 4, and 5-vessel configurations. Degong brewhouses integrate advanced design and manufacturing techniques to maximize energy efficiency and water conservation. All brewhouses include pipings, fittings, and a centralized automated control system to easily and accurately monitor and manage your current batch. With every brewhouse project we take on, our team of technical experts take into account your facility, target production volume, and process flow to ensure your new brewing system is a perfect fit for your team.


Main Configuration Of 1000L Beer Brewing Equipment


Equipments Request

Components

1. Milling System

Malt Miller

2. Mashing System

Mash/Lauter Tun

Boiler Tank

Boiler

Heat Exchanger

Wort Pump

Stiring Device (Optional)

Other accessories are available: 1. Ornamental Pipe; 2. Mashing Pipeline; 3. Operating Plateform; 4. Yeast Feeder; 5. Venturi Tube; 6. Butterfly Valve DN40; 7. Butterfly Valve DN32; 8. Soft Pipe; 9. Dregs Rake; 10. Sugar Measuring Cylinder; 11. Saccharimeter;

3. Fermenting System

Fermentation Tank

Other accessories are available: 1. L-Pipe; 2. Butterfly Valve; 3. Pressure Gage; 4. Solenoid Valve; 5. Vacuum Valve; 6. Cooling Pipe; 7. Thermal Insulation Pipe;

4. Cooling System

Ice Water Tank

Refrigeration Machine

Centrifugal Pump

Evaporator

Ice Water Pump

Relative Pipes and Valves

5. CIP System

Washing Tank

Sterilization Tank

Pump and Valve

6. Filter System

Kieselguhr Filter

Membrane Filter

Filtered Beer Tanks

7. Packing System

Fresh Keg Packing Machine

Pop Can Packing Machine

Glass Bottle Packing Machine

8. Controlling System

Mashing Control Panel

Fermenting Control Panel

Refrigerating Control Panel


Detailed info of 1000L beer brewing equipment


Brewhouse system:


1. Material: Inner(SUS304), thickness: 3.0mm; Outer (SUS304), thickness:2.0mm;

2. Inner surface treatment: welds grinded to Ra 0.4µm without dead corner.

3. 100% TIG welding with pure argon gas shield

4. Insulation: Polyurethane-thickness 80 mm.

5. Dished top and conical bottom

6. Glass top manhole

7. Temperature way:Double metal thermometer

8. Outer surface: Weld polishing processing

9. Top mounted 360° coverage CIP spraying ball and port TC Easy clean

10. Stainless steel laser cutting False Bottom/Filter

11. Thermometer well for high accuracy temperature sensor

12. 4 pcs completely SUS304 heavy duty legs with leveling

13. Grain raker with VFD controlled motor and gear reducer .

14. The use of advanced inverter control of motors, energy-saving mute. The Motor speed can be controlled and adjusted by transducer.

15. With sight light on top

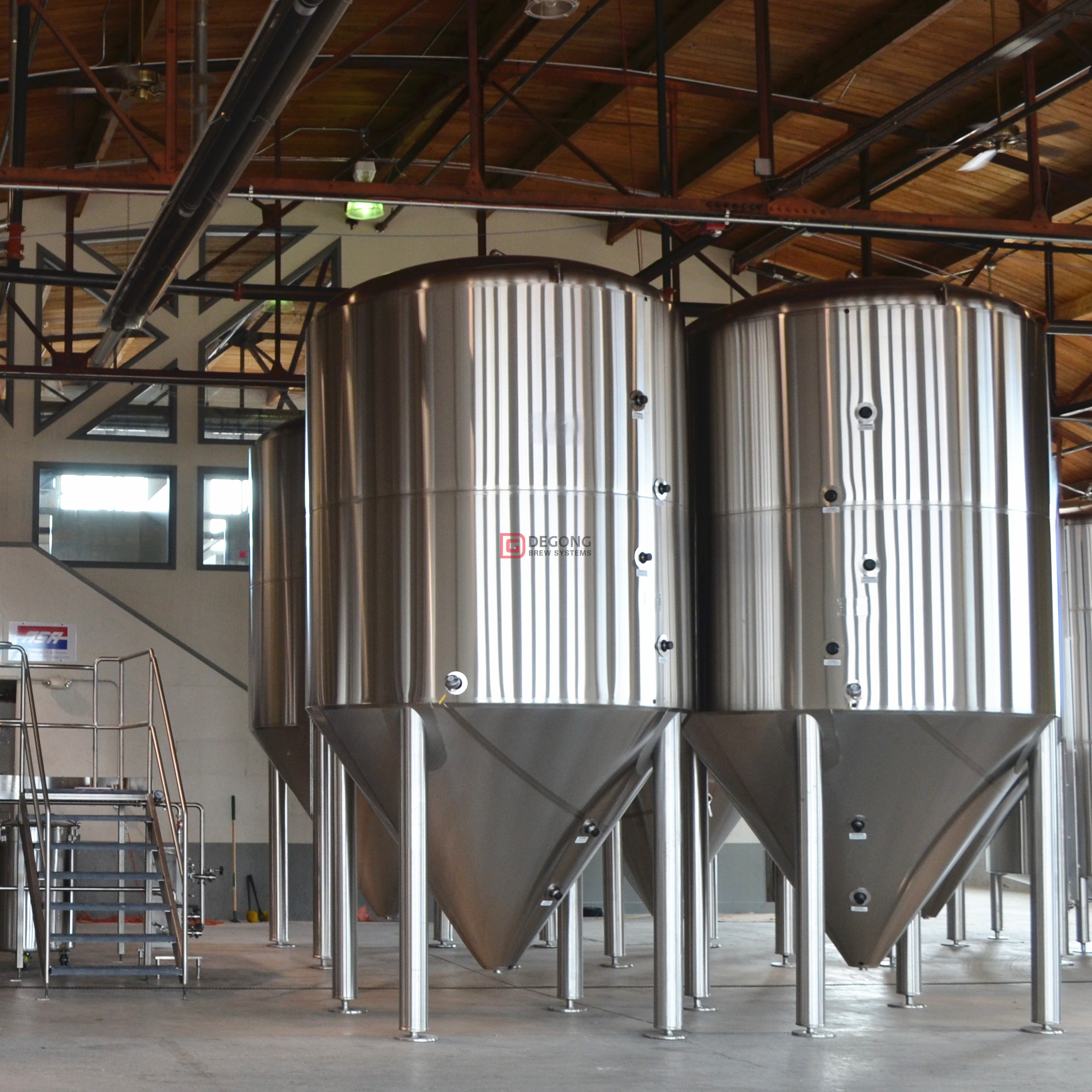

Fermentation system:


1. Material Inner (SUS304) thickness: 3.0mm; Outer (SUS304), thickness: 2.0mm

2. External-Jacket(SUS304) thickness: 1.5mm;

3. Oval head cone bottom, thickness: 3.0mm.

4. Heat exchange area:2.69 ㎡

5. Equipment with: cone 60°resist compression design, dripping

6. 100% TIG welding with pure argon gas shield

7. Interior Finish: Sanitary 2B finish, Pickled and Passivity; (8K Mirror finish optional)

8. Exterior Finish: Oil brushed finish(2B, 8K Mirror finish optional)

9. Interior full polished to 0.2~0.4 μm without dead corner

10. Insulated with high density Polyurethane foam 100mm

11. Glycol Jacket: Dimpled plate on cone and side

12. Stringent tank leakage test by water and pressured gas

13. Stringent Jacket leakage test by water and pressured gas

14. Sanitary side mounted manway with pressured door

15. TC connected CIP arm with 360° coverage spraying ball

16. CO2 blow-off arm with butterfly valve

17.Full sanitary metallic sealed sampling valve

18.Mechanical safe valve PVRV 2 bar on top

19.Hydraulic shock pressure gauge on CIP arm

20.Rotating racking arm and port on cone with butterfly valve

21.Tri clamp discharge arm with butterfly valve

22.Thermowell for high accuracy temperature sensor

23.4 pcs completely SUS304 heavy duty legs with leveling pad and legs support

24.Complete valves, fittings and all parts

25.Dry hopping port 4'' TC with solid end cap

26.Sanitary level tube and valves TC for special request

27.Pressure gauge Thermometer gauge Sample valve Dry Hop Port



Our services & guarantee:


1. Free consultation service before, during, and after sales;
2. Project planning and design services;
3. Free debugging instruction of equipment until everything is functional;
4. Management of equipments' long distance shipping from seller's factory to named port or station by buyer;
5. Training of equipment maintenance and operating personally;
6. The remind of regular maintenance and maintenance register consultant;
7. Provide 36 months complete warrantee for tanks body and life-time maintenance service; All of the accessories and auxiliary facilities are guaranteed for one year; The seller is responsible for the nature damage of the machinery in the warranty period except for man-made damage. All spare parts and wearing parts are attached with the machinery for free.


Certificates:


photobank


All of our beer brewing machine are CE and ISO Certificated, so they are fully meet the requirements or regulations in Australia, Korea, Japan, Singapore, Germany, Belgium, Austria, Netherlands, Turkey, United Kingdom, United States, Canada, Mexico, Russia etc.


Exhibition:



We always attend different expo or exhibitions across the World, such as BrauBeviale and Drinktec in Germany, Craft Brewers Conference in United States, Brewcon in Australia, Sea Brew in Sourthest Asia,Beviale Moscow in Russia etc.The customers can learn more about our design and quality with seeing and touching the equipment in person at these expo or exhibition. In addition, face-to-face talking with customers at booth also makes everything more simple and easier.


Logistics & Packaging:



1. All tanks will be packaged with soft protection material and mounted on strong carbon steel frame

2. All accessories and spare parts will be packaged with seperated box.

3. After loaded into containers, all equipments will be well fixed to the containers.


Where it can be used:
