1000L Commercial Used Stainless Steel Automatically Beer Brewing Equipment for Sale
Home » Brewery Equipment » Beer brewery equipment » 1000L Commercial Used Stainless Steel Automatically Beer Brewing Equipment for Sale

Product Detail

Share to:

1000L Commercial Used Stainless Steel Automatically Beer Brewing Equipment for Sale

Features of our brewing system:
1)Full Automatic or semi-automatic brewing system
2)You can make different kinds beer with our equipment,such as ale,lager, IPA, stout beer and so on.
3)We have different capacity from 50L to 10000L per batch , our brewery equipment approved Pessure CE, ISO ,ROHS,TUV certificate
4) We provide Installation/Operation/ Service/ Maintenance

Thickness of material:
Insulation:
Heating method:
Manhole:
Material:
Quantity:
  • DGET-1000L
  • DGET
  • 8438400000


Production discription

Features of our brewing system:

1)Full Automatic or semi-automatic brewing system
2)You can make different kinds beer with our equipment,such as ale,lager, IPA, stout beer and so on.
3)We have different capacity from 50L to 10000L per batch , our brewery equipment approved Pessure CE, ISO ,ROHS,TUV certificate
4) We provide Installation/Operation/ Service/ Maintenance

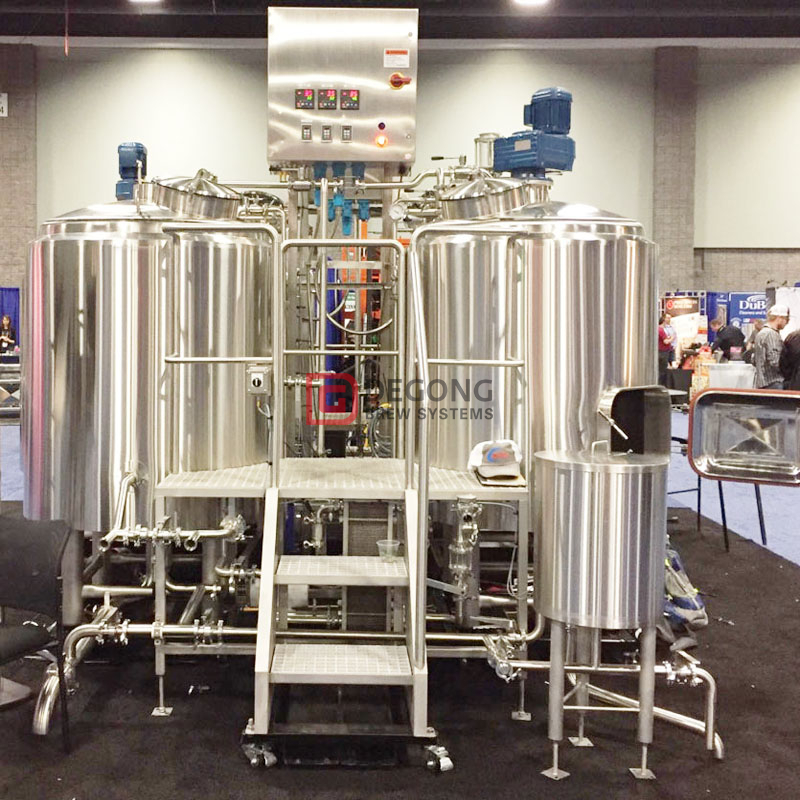

1.Brewhouse


1.Mash/lauter tank
2.Boiling/whirlpool tank
3.Hot water tank

a.Used for the malt mashing and wort filtrating
b.Material adopt stainless steel 304,double wall SS304
c.Welding and polishing processing on surface welds grinded to Ra 0.6um
d.Inner equip with 360 degree omni bearing cleaning ball
e.Insulation:polyurethane -thickness100mm
f.On the surface of the tank equips with manhole,temperature gaugeetc
g.VFD CONTROL MOTOR,VFD CONTROL AGITATO

7bbl1

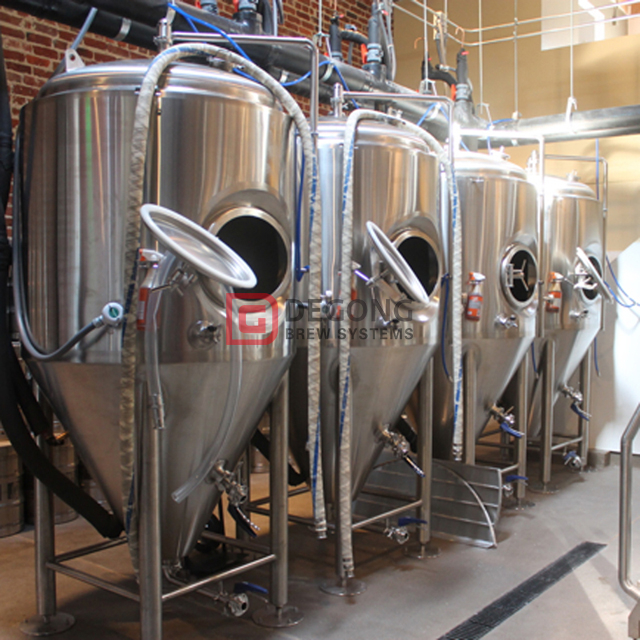

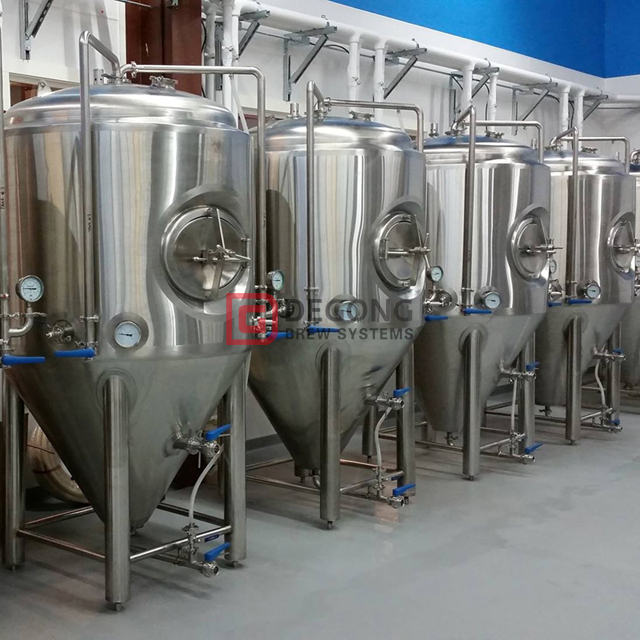

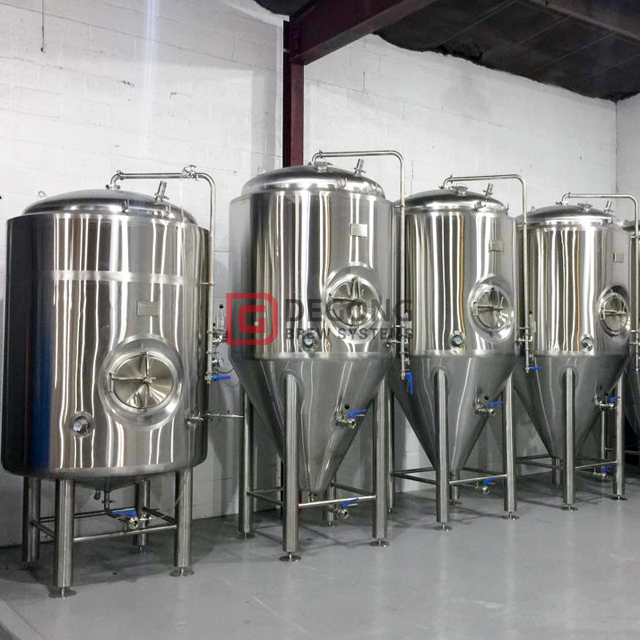

2.Fermentation tank



Fermentation tank

a.Used for the main fermentation of the beer
b.Double wall stainless steel 304,mirror finishing
c. Insulation: Polyurethane-thickness100 mm.
d.Equipment with:Cone 60 or 72 ,resist compression design,dripping temperature drop
e. Surface: Finish   2B - cold-rolled, annealed, pickled
f. Vessel Pressure: 1.5 bar / 3.0 bar
g.cooling zone
h.Breathing valve,pressure gauge,apunding valve,carbonation stone,sample valve,racking arm,


2


3.Cooling system


Cooling system

1.Glycol tank
2.Refrigeration unit
3.Circulate pump

机组



4.CIP system


CIP system

a.Stainless steel304, thickness: 2mm
b.Inner surface treatment:  welds grinded to Ra 0.6µm.
c.Material all adopt the international standard of 304 stainless steel, all welding are argon protection single-sided, double-sided forming.
Caustic tank,sterilizing tank,circulate pump

CIP

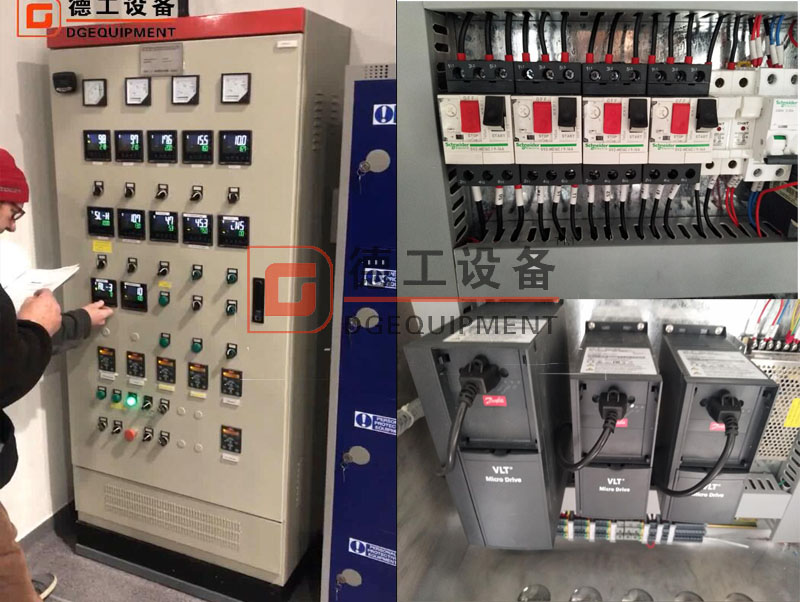

5.Control system

Control system

Semi-automatic control or automatic control
All of the element is Omron/Schneider/Siemens

PLC Control

control1 (2)


6.Miller

Miller

Breaker Roll Type;
Adjustable mill degree;
Ratio of Magnetic Metal Material:≤0.003g/kg



Other details picture

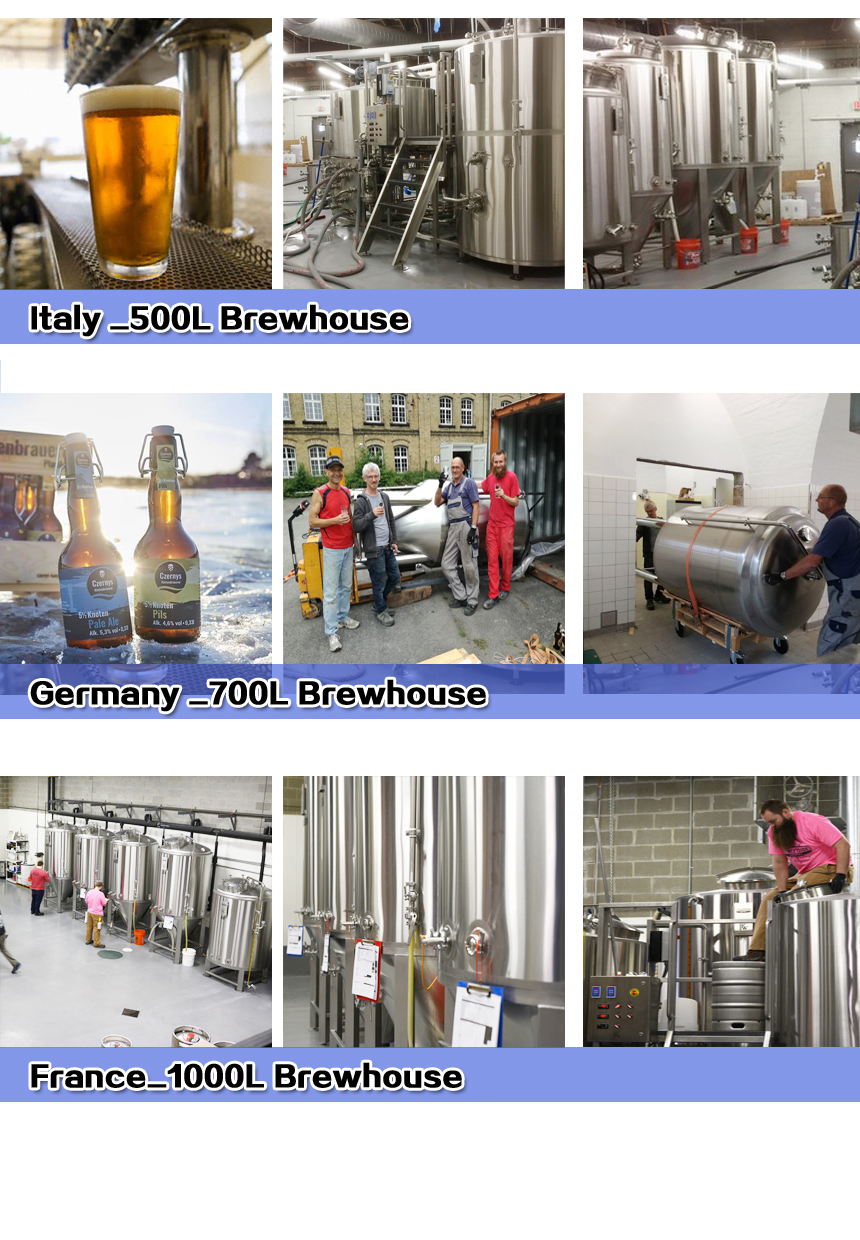

Equipment Show

图片1eee

FAQ


1.Electric power:It can be customized according to customer’s local condition.Such as 220V,230V,380V,430V; 50HZ or 60HZ;3 phases or single phase.



2.Price:Every customer has different requirement,so we need to confirm your requirement first,then give you price.Such as some customer require steam heating,some customer require electric heating;Some customer require 2 vessels brewhouse and some customer require 3 vessels brewhouse;Some customer require top manhole for fermentation tank and some customer require side manhole.So even both 1000L equipment,there price are different.So we need to confirm your detailed requirement first.



3.How to see if your company is trust?

We have sold many equipment to EURO.We can give you our customers contact information,you can listen to their advice or visit their brewery.



4.How should we do if we don't know how to brew beer and install equipment?

We will dispatch engineer to install equipment and teach you how to brew beer freely.


If you have interest,please get in touch with me freely.

Auril
















More detailed pictures


IMG_8654


20643519_18316


IMG_8623


Carb+Stone1



Equipment shows

图片3233321图片1eee

Certification


renzheng


FAQ


1.Electric power:It can be customized according to customer’s local condition.Such as 220V,230V,380V,430V; 50HZ or 60HZ;3 phases or single phase.



2.Price:Every customer has different requirement,so we need to confirm your requirement first,then give you price.Such as some customer require steam heating,some customer require electric heating;Some customer require 2 vessels brewhouse and some customer require 3 vessels brewhouse;Some customer require top manhole for fermentation tank and some customer require side manhole.So even both 1000L equipment,there price are different.So we need to confirm your detailed requirement first.



3.How to see if your company is trust?

We have sold many equipment to EURO.We can give you our customers contact information,you can listen to their advice or visit their brewery.



4.How should we do if we don't know how to brew beer and install equipment?

We will dispatch engineer to install equipment and teach you how to brew beer freely.


If you have interest,please get in touch with me freely.

Auril
