1000L Commercial/craft Premiun Quality Brewery Equipment

We manufacture and supply brewhouse sizes from 1BBL to 100BBL based on customer’s demand. Our brewery equipment consists of mill system, mash system, fermentation system, cooling system, cleaning system , control system and accessories. With brewery equipment you are able to produce outstanding full-bodied beers.

Mill Machine

200Kg/h;

Breaker Roll Type:Adjustable mill degree;

Poewr:0.75KW；Voltage:380V;Model:Fm-011.

Mash system

 Brewhouses has the following combinations:

 2-vessel systems (Mash Tun/Lauter Tun and Kettle/Whirlpool)

 3-vessel systems (Mash Tun, Lauter Tun, Kettle/Whirlpool)

 4-vessel systems (Mash Tun, Lauter Tun, Kettle, Whirlpool)

Beer brewing equipment Technical Parameter

• Material: Inner(SUS304), thickness: 3.0mm

• External-Jacket(SUS304), thickness: 3.0mm

• Cylinder(sharp type,SUS304), thickness: 3.0mm

• Inner surface treament: welds grinded to Ra 0.6μm

• Insulation：Polyurethane-thickness 100 mm

• Temperature way : Double metai thermometer

• Outsourcing surface: Weld polishing processing

• Jacket Pressure: design pressure 0.3 MPa, working pressure ＜0.2MPa

• CIP 360 degrees Omni bearing cleaning

• Double wall stainless steel,

• Gross capacity:1400L & Useful capacity:1000L






Brewhouse

Details of Brewhouse

Fermentation system

Fermentation tank Technical Parameter

• Material: Inner(SUS304), thickness: 3.0mm；outer（SUS304）thickness:2.0mm

• External-Jacket(SUS304), thickness: 1.5mm

• Oval head cone bottom, thickness: 3.0mm

• Inner surface treament: welds grinded to Ra 0.6μm

• Insulation：Polyurethane-thickness 100 mm

• Temperature way : Double metai thermometer

• Mirror surface finish inside

• Control Method:temperature control, voltag-controlled and hand automatic control

• CIP 360 degrees Omni bearing cleaning

• Double wall stainless steel,

• Gross capacity:1400L & Useful capacity:1000L

Yeast adding tank Technical Parameter

Adopts SUS304 stainless steel fine polished process, outsider stainless steel polishing, have three connestion mouths. Adding yeast sight glasses, aseptic air mouth, and wort pipe connection mouth.

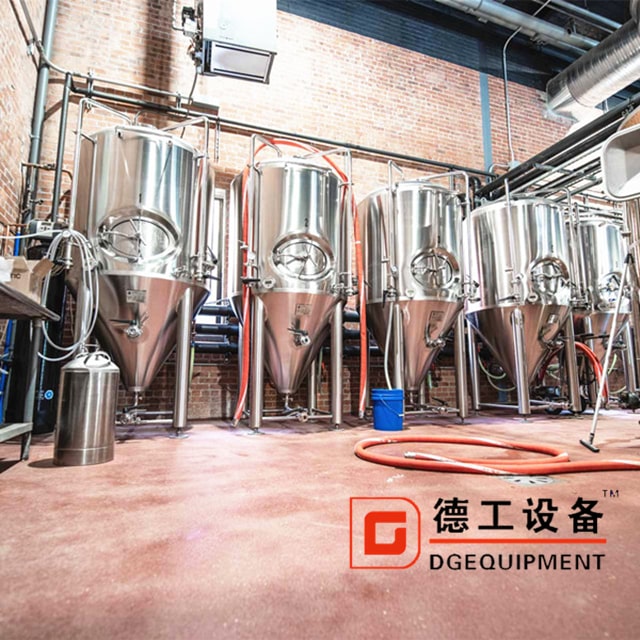

Fermentation tank

Details of Fermentation

Cooling system

Refrigerating unit

• Axial fan motor for low noide.low power.strong wind force.

• Original host,large cooling capacity

• Tight structure,convenient for package and transportation.

Chiller

Why choose us

1. Our advantage

Own factory, Fine workmanship, Durable equipment, Beautiful appearance, Price concessions, Simple operation

2. Our certificate

Our equipment is coming with certifications of PED and our company is TUV approved. We use CE approved components for customers. The quality, specification and function all meet the treaty of contract.

3. Our service

We can provide engineers to help you install the equipment, and we can also provide winemakers to help you solve technical problems.

With our customers

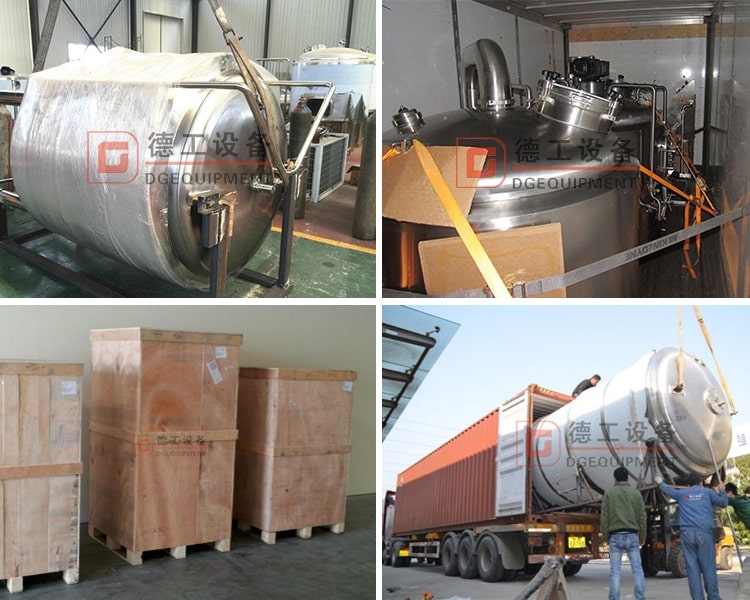

Packing & Delivery

Standard packing:

1.Cord ,film membrane

2.Firm membrane, wood box for free fumigation

Transport: by sea

Delivery :

1.We put your order into our tight production schedule to ensure the punctual delivery time.

2.Production or inspection report before your order packed.

3.Shipping notice/ insurance to you as soon as your order is shipped.

Contact us

If you have needs for craft brewing equipment, please feel free to contact us,my pleasure.
