Material: | |
---|---|
Thickness of material (mm): | |
Manhole: | |
Availability: | |
Quantity: | |
DGET-2000L
DGET
8438400000
1000L beer equipment is favorite by some intermediate breweries or restaurants owners, which can help them to brew 1000-1800 L beer per day. Its production capacity is flexible, you can decide how much beer would you want to brew per month according to the quantities of fermenter you choose. One tank beer usually take 10-14 days to ferment.
2000L beer fermenters available
We offers a wide array of fermenters(fermentation) and brite tanks(maturation) tanks that are designed accordingly to our customers'specifications and their needs. Our fermenter and brite tanks come in three different generalized builds (customizable tanks are also available): single wall, un-jacketed and jacketed. All of our tanks can be pressurized (unless otherwise requested) and the fermenters have an added bonus of functioning as both a fermenter and BBT tank.
2000L brewery fermentation tank |
• Tank Capacity: 1000L |
• Inner jacket (SUS 304), Thickness=3.0mm |
• External jacket (SUS 304), Thickness=2.0mm |
• Dish head (SUS304), Thickness= 3.0mm |
• Insulation: PU-Thickness: 100mm |
• Side manway: shadowless manhole |
• Completely SUS304 heavy duty legs with leveling pad and legs support |
• Glycol jacket: dimpled plate on cone and side |
• Cooling media: glycol water or alcohol water |
• Design pressure 0.3MPa |
• Working pressure 0.15Mpa |
• Stringent tank leakage test by water and pressured gas |
• Stringent jacket leakage test by pressured gas |
• 60°cone bottom |
• CIP arm with360°coverage CIP spraying ball |
• CO2 blowoff arm with butterfly valve |
• Dry hops port on the top of tanks with butterfly valve and hopper |
• Full sanitary sample valve, no seal ring, no pollution |
• Mechanical relief valve with glass, 2bar on CIP arm |
• Shockproof pressure gauge on CIP am |
• Rotating racking arm and port on cone with butterfly valve |
• Tri clamp discharge arm with butterfly valve |
• PT100 Temperature sensor for high accuracy temperature control |
• 100% TIG welded joints |
• Complete valves, fittings and all parts |

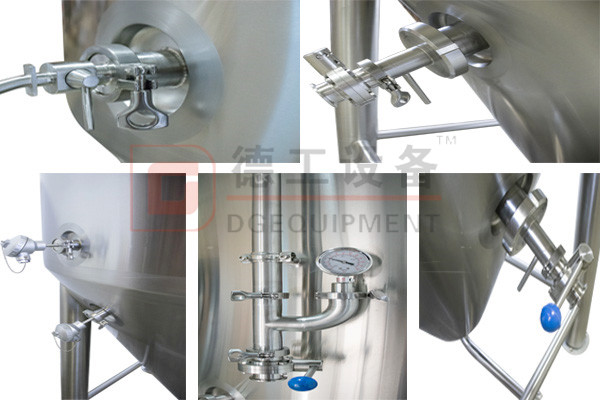

Details of Beer fermentation tank
Beer fermenter's components

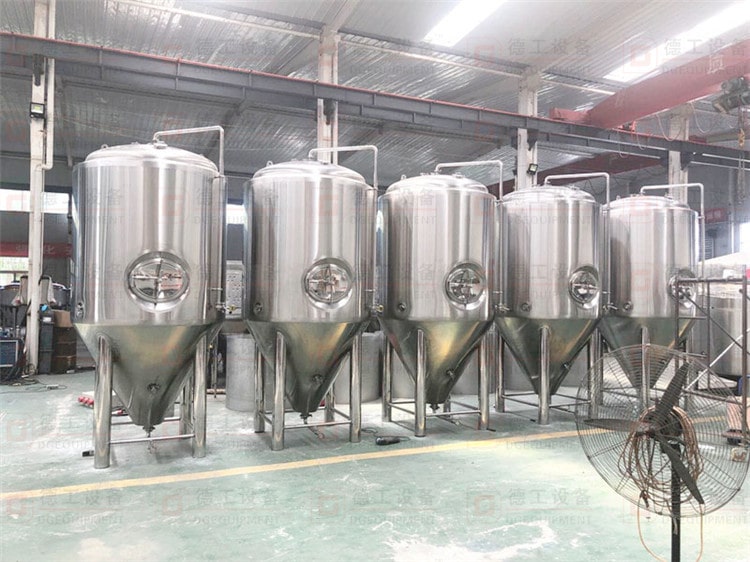

Brewery fermenters
DGET'S information: |
Our Services
1. ISO9001, CE certification.
2. Highly competitive price, more than 8 years production and manufacturing experience.
3. Our market team with our engineer with more than 8 years experiences together can satisfy you with any technology problem.
4. The seller is responsible for the nature damage of the machinery in the warranty period except for man-made damage.

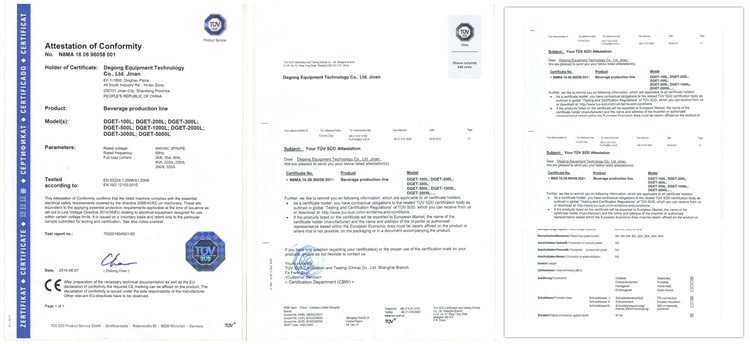

TUV/ISO/CE Certification
If you would like to get a quotyation,do not hesitate to contact me freely.
