1000L 2 Or 3 Vessel Brewhouse Commercial Used Beer Production Equipment

Raw material of beer brewing: the raw materials are high quality imported malt,wheat malt, black malt,burn fragrant malt and import hops.The active yest species are introduced from Germany. Our fresh pure beer doesn't add any additives and have rich nutrition and unique taste, so it is truly green food.Beer varieties: wheat beer, black beer, green beer and so on.

Material:
Insulation:
Control system:
Electric component:
Heating method:
Quantity:
  • DGET-1000L
  • DGET
  • 8438400000



Brewing-process

1.Based on yeast type,beer is divided into ale(top fermentation,16 to 24 ℃ ) and lager(bottom fermentation,8-12 ℃)

2.Based on color,beer is divided into light beer,yellow beer and dark beer


Brewhouse information


Miller

2-roller or simplified 4-roller


Mash tun/kettle

Function–mashing, mixing and wort boiling.

Volume + ~30% headspace

Inner-shell (SUS304), thickness: 3.0mm;
External-shell (SUS304 OR COPPER), thickness: 2.0mm;

Jacket(SUS304),thickness:1.5mm;
Insulation thickness: 100mm;
Internal 2B finishing, welds polishing to 0.4um

Cylindric and bottom with steam jacket–Max 3 bar pressure ensures 1°C/min heating speed.



Assembly:

-Top domed thermostatic hermetic closed glass manway door.

-VFD agitator motor SIEMENS.

-Top domed lighted sight glass.

- PT100 temperautre sensor probe

- Sanitary centrifugal 2.2 kw mash pump SIEMENS with VDF Danfuss controller.

- Bottom mash inlet /outlet.

- Middle side wort/water inlet/outlet.

- Top dome wort /water inlet.

- Middle cone wort outlet.

- Quick installed Spray CIP balls.



Lauter tun

Function: lautering – separation of the solid part of mash (grains) from the liquid part (wort) during beer wort production process.

Modular 4 parts screen sieve separating the wort bath from lautering area.

Sieve flutes width- 1 mm.

Sieve loading - 120-160 kg/ m2

Volume + ~30% headspace

Inner-shell (SUS304), thickness: 3.0mm;
External-shell (SUS304 OR COPPER), thickness: 2.0mm;

Jacket(SUS304),thickness:1.5mm;
Insulation thickness: 100mm;
Internal 2B finishing, welds polishing to 0.4um

Cylindric and bottom with steam jacket–Max 3 bar pressure ensures 1°C/min heating speed.



Assembly:

-Top domed thermostatic hermetic closed glass manway door.

-VFD agitator motor SIEMENS.

-Top domed lighted sight glass.

-Auto spent grain out by reversing rakes
-Sparge arm; False bottom with 0.7mm gap;

-- PT100 temperautre sensor probe

- Sanitary centrifugal 2.2 kw mash pump SIEMENS with VDF Danfuss controller.

-Spent grain manway;

-Wort sprinkling provided by sparging semicircle or spray balls.

- Bottom wort outlet.

- Middle side wort/grains outlet for decoction process (if needed) and water inlet for stuck lautering preventing.

- Top dome wort /water inlet.



Whirlpool tun

Function– wort whirpooling, wort mashing,wort boiling,water boiling and hot water storing.

Volume + ~30% headspace

Inner-shell (SUS304), thickness: 3.0mm;
External-shell (SUS304 OR COPPER), thickness: 2.0mm;

Jacket(SUS304),thickness:1.5mm;
Insulation thickness: 100mm;
Internal 2B finishing, welds polishing to 0.4um

Cylindric and bottom with steam jacket–Max 3 bar pressure ensures 1°C/min heating speed.





Assembly:

-Top domed thermostatic hermetic closed glass manway door.

-VFD agitator motor SIEMENS.

-Top domed lighted sight glass.

- PT100 temperautre sensor probe

- Sanitary centrifugal 2.2 kw mash pump SIEMENS with VDF Danfuss controller.

- Bottom mash inlet /outlet.

- Middle side wort/water inlet/outlet.

- Top dome wort /water inlet.

- Middle cone wort outlet.

- Quick installed Spray CIP balls.


640


products_640 (2)


未标题-100

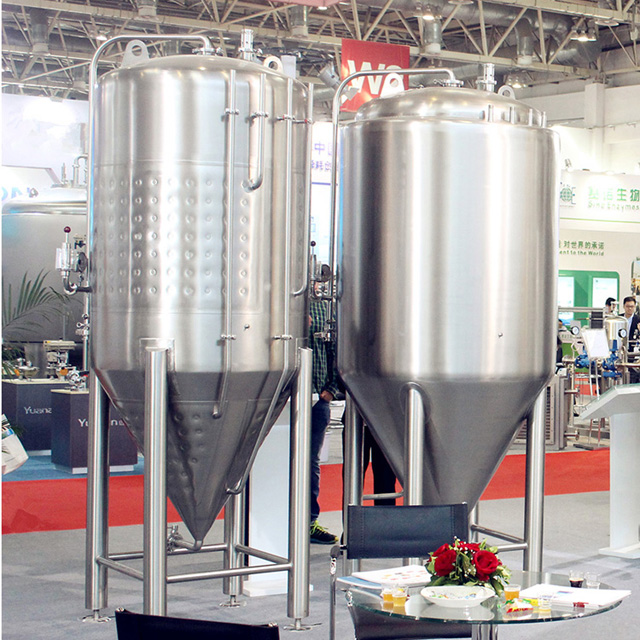

 Fermentation tank information



Dimensions

We can provide normal dimension if customer dont have special requirement.If have,we will

Design suitable dimension according to customer’s requirement.

Capacity

Nominal capacity plus 25%

Top Head

Dished head

Lifting Lugs

2 lifting lugs

CIP

Removable CIP & fixed spray ball (180° up, 65mm) on 1½” TC with 1½” TC line down to

working height

Wall

Inner thickness 3mm;Outer thickness 2mm.

Bottom Cone

60° cone angle, ”1½ knuckle radius to cone

Cooling Jacket

On sidewall and bottom cone – number of zones determined by tank size

Maximum 0.3MPA working pressure, 1” to 1½” FNPT inlet / outlet

Legs

4pcs completely SUS304 heavy duty legs with leveling pad and legs support

Insulation

100mm polyurathane

Manway

Top manway or side manway

Drain

1½”  TC butterfly valve c/w “J” pipe

Tank Material

All quality inspected 304 stainless steel alloy

Exterior Finish

2B with all welds ribbon polished

Interior Finish

2B with all welds TIG welded with heat stain removed

Tank Pressure

Maximum 0.3Mpa

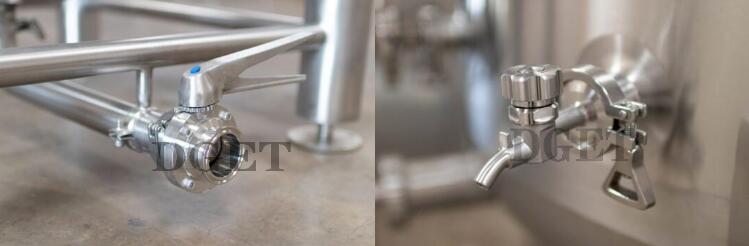

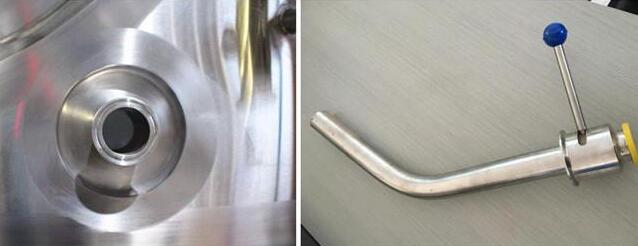

All accessories on tank

•Full sanitary sampling valve

•1½” TC Vacuum Pressure relief valve on top head

•Mechanical relief valve 2 bar on CIP arm

•Shockproof pressure gauge on CIP arm

•Dry hopping port with solid end cap

•Thermowell for high accuracy temperature sensor

•1½” Raking arm

•carbonation stone

•1½” TC RSL Sample valve


640 3


QQ截图20191105145614QQ截图20191022151113



Our equipment showed in customer's brewery


20190703163950605060

20190703164013131313

20190703164077337733

20190703164197319731

Delivery




FAQ


1.Electric power:It can be customized according to customer’s local condition.Such as 220V,230V,380V,430V; 50HZ or 60HZ;3 phases or single phase.



2.Price:Every customer has different requirement,so we need to confirm your requirement first,then give you price.Such as some customer require steam heating,some customer require electric heating;Some customer require 2 vessels brewhouse and some customer require 3 vessels brewhouse;Some customer require top manhole for fermentation tank and some customer require side manhole.So even both 1000L equipment,there price are different.So we need to confirm your detailed requirement first.



3.How to see if your company is trust?

We have sold many equipment to EURO.We can give you our customers contact information,you can listen to their advice or visit their brewery.



4.How should we do if we dont know how to brew beer and install equipment?

We will dispatch engineer to install equipment and teach you how to brew beer freely.


If you have interest,please get in touch with me freely.
