DGET- 1000L
DGET
8438400000
We design and produce a line of nano brewing equipment according to your specifications,from 100L to 1000L. With customized design, you could have your own nano brewhouse according to your craft for your brewpub, restaurant, hotel, etc. To guarantee breweries'reliable performance, we use qualified stainless steel, fittings, and various parts, with our good craftsmanship, rich experience and technology in brewing industry.
What does the 1000L beer brewing equipment include?
1.Malt crushing system
Component |
|
NOTE:The malt should be crushed in half one hour.Normally brew 1000L beer will need 170-200kg malt,so we will configure miller according to capacity of brewhouse.For 1000L brewhouse,300-500kg miller is enough. | |
Component | Mashing tun, lauter tun, kettle and whirlpool tank(Can be combined freely) 2-vessels of"mash/lauter tank+boiling/whirlpool tank" is the normal configuration for 1000L brewhouse 2000L hot liquid tank (HLT) |
Details | 1.Material: Inner(SUS304),thickness: 3.0mm; Outer:2.0mm;Jacket:2.0mm. 3. Inner surface treatment: welds grinded to Ra 0.4µm. 4. Insulation: Polyurethane-thickness 100mm. 5. Temperature way：Double metal thermometer 6. Top mounted 360° coverage CIP spraying ball and port TC Easy clean |
Accessories | Pump, pipeline, heat exchanger, hops filter,wort grant,wort aeration device,false bottom, raker, motor,platform, pipes&valves |
Note:The heating method can be electric heating,steam heating or direct fire heating.For 1000L equipment,we recommend electric heating or steam heating. | |
Component |
|
Details | 1. Material Inner (SUS304)thickness: 3.0mm; Outer(SUS304)thickness:2.0mm 2.External-Jacket(SUS304) thickness: 1.5mm; 3.Inner surface treatment: welds grinded to Ra 0.4μm (attached 360 degree cleaning ball). 4.Mirror surface finish inside. 5.Insulation: Polyurethane-thickness:100 mm. 6.Equipment with : cone 60°resist compression design， 7.Vessel Pressure:1.5 bar / 3.0 bar |
Accessories on tank | Vacuum valve,hops adding port,CIP pipe,pressure gauge,mechanical regulation valve,sample valve,carbonation stone,temperature sensor,themometer,drain outlet. |
Note: 1.The fermentation tank and bright beer tank can be top manhole or side manhole 2.Some customer don't know how many they will need.Then,you can tell me your brewing plan and our engineer recommend a suitable scheme for you. | |
4.Cooling system
Component | Glycol water tank,circulate pump,chiller |
NOTE:The capacity of glycol water tank and chiller is depende on quantity and capacity of fermentation tank and bright beer tank | |

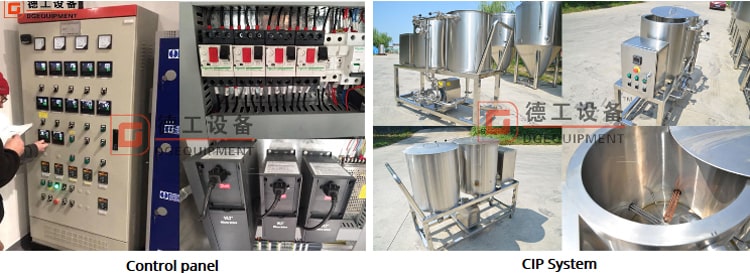

5.Control system&CIP system
CIP SYSTEM:Alkali tank,sterilization tank and pump |
Control system:The control system can be semi-automatic or full automatic.All of the element is Siemens,Schneider,Danfoss,Omron component |
Except the six basic brewing system,we also can provide bottling line,canning line,sterilizer,filter,kegging machine,water treatment......or others related equipment
What should we know before geting an exact price?
1.The brewhouse can be customized to 2-vessels(such as mash/lauter tank+boiling/whirlpool tank),3-vessels(mash/lauter tank+boiling tank+whirlpool tank),4-vessels(mash tank+lauter tank+boiling tank+whirlpool tank).
2.The heating method can be electric heating,steam heating and direct fire heating.You can choose one suitable to you.If steam heating,it will need a steam boiler,the boiler can be eletric boiler,gas boiler or diesel boiler.
3.Quantity of fermentation tank,different customer has different requirement,so we need to know how many fermentation tank do you need.If you don't have idea,you can tell me your brewing plan,such as daily output or monthly output,beer's type or fermentation cycle,our engineer can suggest you a suitable scheme.
4.We should know your electricity power,including voltage,frequence and phases
5.You just need the beer brewing line,or need other auxiliary system,such as bottling line.
Company information
If you want to know more details,welcome to contact me.
