What Is A Complete 500L Craft Microbrewery Equipment Small Brewpub Used Beer Brewing System Cost

Share to:

What Is A Complete 500L Craft Microbrewery Equipment Small Brewpub Used Beer Brewing System Cost

500L brewery equipment usually is placed in restaurants, pub, bars, hotels or independent brewing room, which is common and popular in some European countries. If the budget and space is allowed, the typical mash/lauter tun+kettle/whirlpool tun+hot liquor tun is a common recommendation.If you want to do gravity beer,save cost or limited space,two tanks-three vessel brewhouse is a good choice,which consist of a combined vessel of mash/lauter tank on top and whirlpool tank or hot water tank on bottom,and another vessels is brew kettle (or brew kettle whirlpool tank).

Thickness of material (mm):	Inner:3mm Outer:2mm Jacket:2mm
Insulation:	100mm
Heating method:	Electric heating Steam heating Direct fire heating
Construction:	2-vessels 3 vessels 4 vessels
Material:	Red copper Stainless steel
Availability:

Quantity:



Inquire Add to Basket

Model:
DGET- 500L
Brand:
DGET
Code:
8438400000

Product Description

500L brewery equipment usually is placed in restaurants, pub, bars, hotels or independent brewing room, which is common and popular in some European countries. If the budget and space is allowed, the typical mash/lauter tun+kettle/whirlpool tun+hot liquor tun is a common recommendation.If you want to do gravity beer,save cost or limited space,two tanks-three vessel brewhouse is a good choice,which consist of a combined vessel of mash/lauter tank on top and whirlpool tank or hot water tank on bottom,and another vessels is brew kettle (or brew kettle whirlpool tank).

brewpub used beer brewing equipment

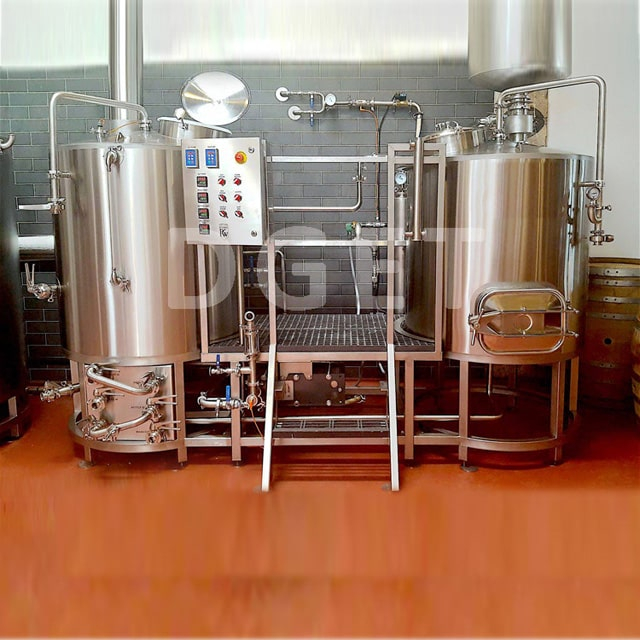

Copper/stainless steel outsourcing,2/3 vessels beer brewhouse

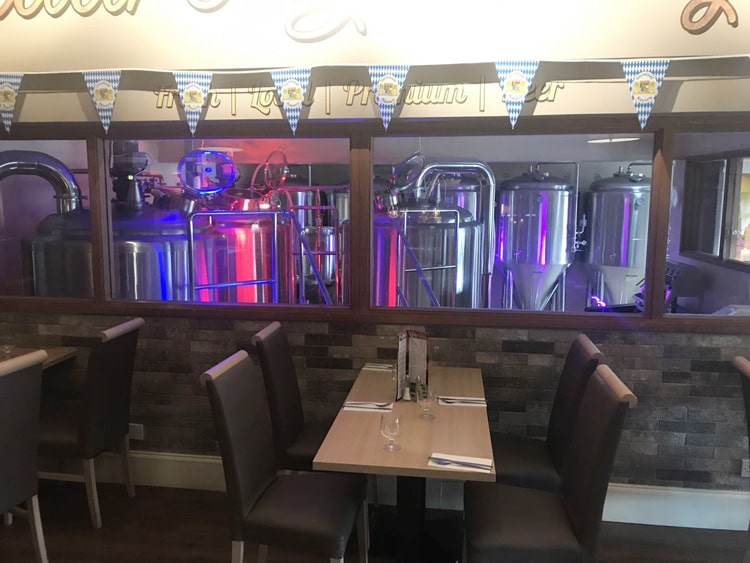

Component of the 500L microbrewery used for hotel/brewpub/restaurant

Grinding System	Main equipment	Malt mill; screw feeder, grain hoppers, grist hydrator
Mashing System	Main tanks	2-vessels:mash/lauter+boiling/whirlpool+hot water tank; 2 tank-3 vessel:mash/lauter tank&whirlpool tank+boiling tank;
	Capacity	500L per batch
	Heating method	Steam heating, electric heating, direct fire heating
	Insulation	Polyurethane/Rock wool, thickness: 100mm
	Accessories	Pump, pipeline, heat exchanger, hops filter,wort grant,wort aeration device,false bottom, raker, motor,platform, pipes&valves
Fermentation system	Main equipment	Fermentation tanks and bright beer tank. Quantity is decided by you
	Capacity	500L or 1000L per tank
	Insulation	Polyurethane/Rock wool, thickness: 100mm
	Cone bottom	60° resist compression design
	Fermentation tank pressure	Design pressure 0.3MPa; Working pressure 0.15Mpa
	Accessories	Vacuum valve,hops adding port,CIP pipe,pressure gauge,mechanical regulation valve,sample valve,carbonation stone,temperature sensor,themometer,drain outlet.
Refrigeration System	Main equipment	Glycol water tank,circulate pump,chiller
	Capacity	According to the quantity and capacity of fermentation tank and bright beer tank.
	Chiller	According to the quantity and capacity of glycol water
CIP system	Main equipment	Alkali tank,sterilization tank and pump
Control System	Main equipment	PLC control box

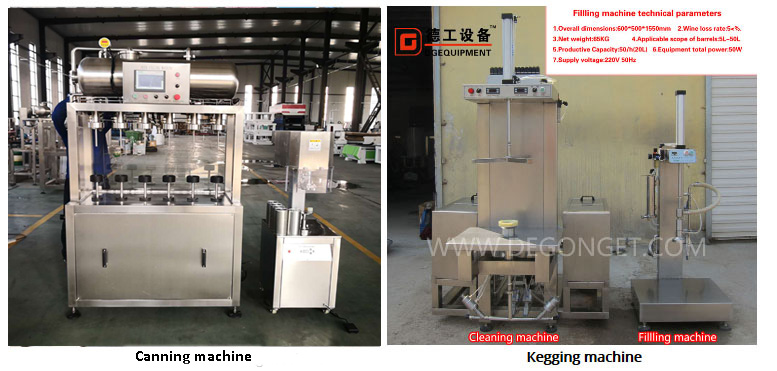

Selling system	If sell in bottles-----Bottling machine&capping machine; If sell in keg-----Kegging machine If sell in cups-----Dispensor/draft beer machine If sell in cans-----Canning machine
