What Does It Cost To Start A 500 Litre Micro Brewery Commercial/hotel/restaurant Used Brewing Equipment

Beer brewing System Designed for quality beer, flexible brewing space layout and budget friendly priced. Our brew system meets the highest quality sanitary standards in construction with 304 stainless steel material and exclusively designed for professional brewers. All materials are 304 stainless steel, sanitary welded and polished Ra 0.6um.

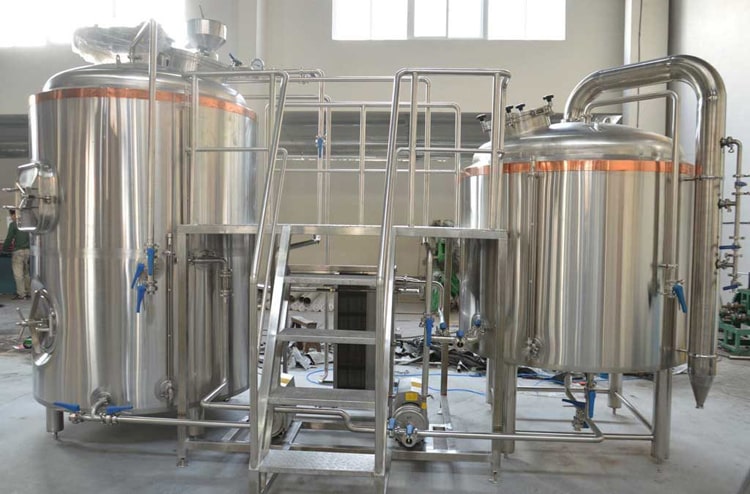

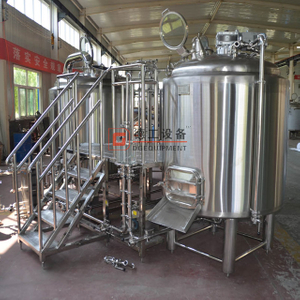

Beer brewhouse introduction

Our brewhouse system is designed to serve craft brewers for producing high quality beer efficiently. Brewhouse is made of premium quality food grade stainless steel 304, integrated with VFD control pumps, heat exchanger, platform,wort oxygnation system,grist hydrater,hops filter,grant tank, control panel  and valves&pipes in a sanitary modular system.

The two vessel brewhouse consist of a combined vessel of “mash tun/lauter tun,brew kettle & whirlpool,hot liquor tank(optional)”, and it complies with highest sanitary processing standards.

1.Mash / Lauter Tun Combine Vessel separating wort from grain and storing hot liquor.

• Lautering function:Dished top vessel, lauter tun has v-wired false bottom ,top mounted light, and side mounted grain out door and grain chute,backflush pipe.

• Equipped with level sight gauge and side mounted manway.

• Mashing function:VFD controlled motor,spray ring,mash hydration unit.

Material:

• Interior shell:Mirror stainless steel 304 polished to 0.4um, fully welded, ground and polished hygiene surface.

• Exterior cladding: 2B finished, fully welded, ground and polished.

• Dished head with conical floor. A mash hydration unit on top of tank for complete doughing in of grain.

• Insulation: Polyurethane foam100mm thickness.

2.Brew kettle / Whirpool Combine vessel for infusion or decoction mashing, wort boiling, precipitating protein & polyphenols.

• Steam jacket on the bottom and side of vessel to heat the wort.

• Sanitary centrifugal pump with variable speed control and water cooled bearings.

• Equipped with condensation stack with water spray nozzles.

• Tangential port for whirlpool

Material:

• Interior shell:Mirror stainless steel 304 polished to 0.4um, fully welded, ground and polished hygiene surface.

• Exterior cladding: 2B finished, fully welded, ground and polished.

• Insulation: Polyurethane foam100mm thickness.

 3.Others

• Heat Exchanger

• Sight glass, Check valve, Tee with pico carbonater.

• Sanitary stainless steel 304 pump with VFD

• Sanitary Hose

• Optional purchase: Steam generator, control system, chiller, temperature controller & solenoid, fermenters & brite tanks

beer mashing lauterting with false bottom and raker

Sight glass

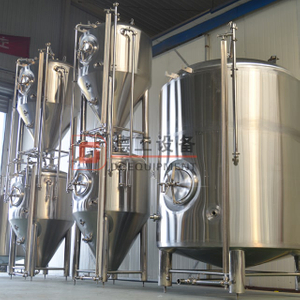

 Beer fermentation tank introduction

• Design pressure 3Mpa

• Interior shell: stainless steel 304 , thickness 3mm

• Exterior shell: stainless steel 304, thickness 3mm

• Interior and exterior finish bright polish to 0.6um

• 60 degree cone bottom, with 25% head space

• Racking port and discharge port with butterfly valve and fittings

• Side manway door, shadowless

• Dual zone dimple cooling jacket with glycol inlet and outlet (3 zone for larger tank)

• Polyurethane insulation thickness 100mm for cooling jacket on side and bottom

•Fully welded exterior shell

•4 stainless steel legs with leveling foot pads in stainless steel

•CIP arm and spray ball. Co2 Blow-off arm in 2”

•Rotating tank racking arm

•Pressure release valve

•Pressure gauge

•Thermometer

• Sample valve

•Tank complete with fittings, valves and all parts

Beer fermentation tank

Details of fermentation tank

Company information

If you have interest in DEGONG brewing equipment,please get in touch with me freely.
