1000L Microbrewery Beer Brewing Equipment Combined 2 Vessels Brewhouse with Steam Or Electric Heating

The compact Brewhouse section consists of two universal apparatus: Mashing-Lautering tun (M-F) and Kettle-Whirlpool tun (K-W). Both devices are able for heating.Such combination of brewing vessels allows to reduce the pressure on the wort, by reducing the number of transfers from one apparatus to another
Material:
Insulation:
Control system:
Electric component:
Heating method:
Quantity:
  • DGET-1000L
  • DGET
  • 8438400000


Two Vessel Brewhouse -Mash/lauter Tun, Brew Kettle/Whirlpool tun,hot water tank


The compact Brewhouse section consists of two universal apparatus: Mashing-Lautering tun (M-F) and Kettle-Whirlpool tun (K-W). Both devices are able for heating.Such combination of brewing vessels allows to reduce the pressure on the wort, by reducing the number of transfers from one apparatus to another, as well as to have the possibility of starting the next batch right after removing the grains from the mash-filtration apparatus (M-F).The piping is designed in such a way that minimizes the oxidation of the wort during its preparation.

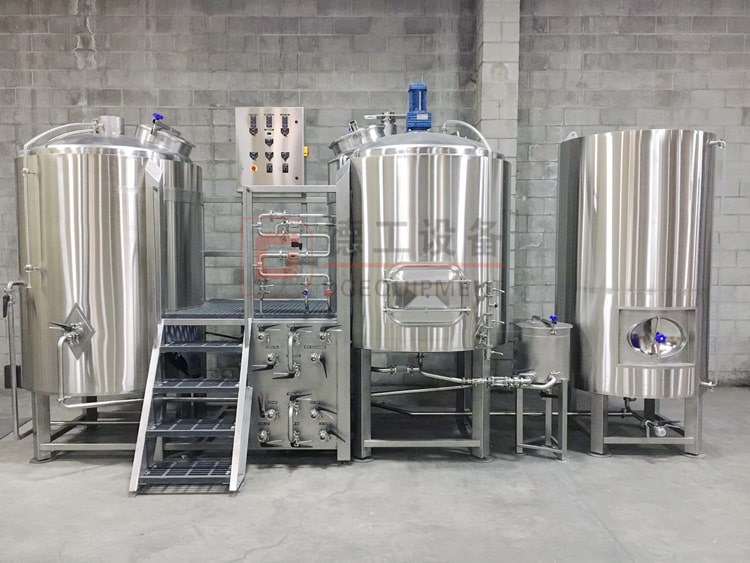

Two Vessel Brewhouse - Mash/lauter Tun, Brew Kettle/Whirlpool tun,hot water tank

Two Vessel Brewhouse - Mash/lauter Tun, Brew Kettle/Whirlpool tun,hot water tank


2-vessel beer brewhouse included



• Mash & Lauter Tun

Double walled insulated with Cladding, Two 1.5” TC ports with butterfly valves,false bottom for lautering, Mash Screen Square side Manway for Grain out,motor for raker, TC port for Thermometer and thermometer well, CIP Spray Ball and ring


• Brew Kettle/whirlpool

Double walled insulated with cladding, outlets with butterfly valves. Whirlpool port, and 1.5” TC port for thermometer and thermometer well,steam jacket/electric heating pipe,CIP Spray Ball.



• Hot Liquor tank

Double walled insulated with Cladding, steam jacket/electric heating pipe, Two 1.5” TC ports with butterfly valves, and 2” TC port for thermometer and thermometer well

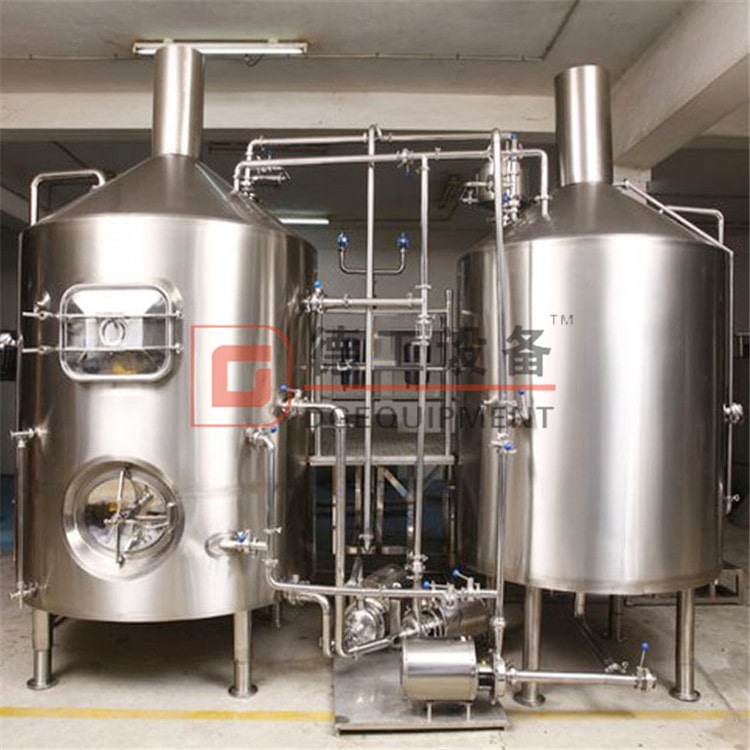

                                                                       1000L beer brewhouse
Component Qty Technical characteristics

1.1

Mash tun/Lauter tank

1

Net capacity: 1000L, Gross capacity: 1400L

Stainless steel AISI 304 thickness:

Inner = 3mm;External = 2.0mm

Double dish heads on top , mirror polished outside

Н = 2550mm, Ø = 1400mm

Thermal insulation (polyurethane foam) – 100 mm;

Configuration:

Lauter tank equipped with plow knife (raker knife), ABB motor, 1.5KW, with motor cover and polished

Side mounted grain outdoor with grain chute, size is 430*330mm

With semi-automatic grains removing plate

Easy clean and detachable sparging spray ring

Laser cutting T-wires false bottom (filter), plate gap: 0.7mm;

Top manhole: Round glass manhole, print the customers logo, Diameter: 400mm;

Heating method: steam heating/electric

Filter method: Suction filtration by speed controlled filter pump/gravity.

360° coverage CIP spraying ball

Temperature measurement way: PT100

100% TIG welded joints;

1.2

Kettle/ Whirlpool tank

1

Net capacity: 1000L, Gross capacity: 1400L

Stainless steel AISI 304 thickness:

Inner = 3mm;External = 2.0mm

Double dish heads on top , mirror polished outside

Н = 2550mm, Ø = 1400mm

Thermal insulation (polyurethane foam) –100 mm;

Configuration:

Top manhole: Round glass manhole, Diameter: 400mm .

Heating method: steam heating

Tangential whirlpool inlet

360° coverage CIP spraying ball

Temperature measurement way: PT100

100% TIG welded joints;

4pcs completely ST.STEEL 304 heavy duty legs with levelling pad

1.3

Steam generator

1

Р= 100 kg-steam/hour, Р=70 kW, 380 V

1.4.

Hot water tank

1

Useful volume =2000l,

Stainless steel AISI 304 thickness:

Inner = 3mm;External = 2.0mm

Double dish heads on top , mirror polished outside

Н = 2850mm, Ø = 1600mm

Thermal insulation (polyurethane foam) – 100 mm;

1.5

Wort pump

1

Flow 3m3/h, lift 18m

Sanitary ST.STEEL 304

Rev: 2880r/min Capacity:3000L/h

Centralized hard-piped manifold for liquid flow

easily controlling

Power: 0.75KW

Complete valves, fittings and all parts

ABB motor

1.6.

Work platform

1

Material: steel AISI 304

 Platform, stairs, handrails

1.7.

Plate Heat

exchanger

1

 10㎡

Heat exchanger plate: Alfa Laval style

Stainless steel 304 material

Design pressure:1.0 Mpa;

Working temperature:170°.

Wort inlet and outlet diameter is φ38

Tap/glycol water inlet and outlet diameter is φ38

Tri-clamp quick-installed, two stage/single stage

1.8.

PLC

controller

1

The touch screen placed on the work platform

And the control box placed to another place, close to the brewhouse.

The control box material is ST.STEEL 304

The touch screen and PLC brand are Siemens

The controller only used for control this 1000L brewhouse

Step heating in mash tun is operated by automatically

 Show the temperature of brewhouse

1.9.

Hops filter

1

Material: ST.STEEL 304

Filter net inside

1.10

Wort oxygen device

1

Includes sight glass, Venturi, yeast adding tank, temperature gauge, Inflatable head and inflatable hose

1.11

Malt mill

1

P = 500 kg /hour,

Two adjustable rollers

 Beer brewhouse

Beer brewhouse

Beer brewhouse configruation details

Beer brewhouse configruation details

sight-glass

Sight glass



If you have interest in DEGONG brewing equipment,please get in touch with me freely.
