Stainless steel customized 2000L Brewery equipment craft beer installation in Sweden for Sale
Home » Brewery Equipment » Beer brewery equipment » Stainless steel customized 2000L Brewery equipment craft beer installation in Sweden for Sale

Product Detail

Share to:

Stainless steel customized 2000L Brewery equipment craft beer installation in Sweden for Sale

Whether you are a start-up, a well-established craft brewery or a market leading brand – you can benefit from DGET in the brewery industry. Our catalog of high-quality equipment ranges from complete systems to process units to components.

Thickness of material (mm):
Yield:
Material:
Insulation:
Quantity:
  • DGET-2000l
  • DGET
  • 8438400000

IMG_06

Commercial brewing equipment with hopper


Beer brewing requires four raw materials:

Barley, hops, water and yeast. The quality of these raw materials determines the quality of the beer produced.

1. Barley: the main raw material for beer brewing. Barley is used because it has a higher starch content. At the same time, from the threshing of the barly to the malt, the bark is always attached to the malt, which can form the necessary filter layer in the subsequent production process. Before a brewery produces beer, it must process barley into malt.

2. Hops:

   a. Make beer with refreshing aroma, bitterness and antiseptic.

   b. Forming excellent beer foam. Excellent hops and malt can brew white, delicate, rich and long-lasting beer foam.

   c. Conducive to the clarification of wort. In the process of wort boiling, due to the addition of hops, the protein in the wort can be complexed out, thereby clarifying the wort and brewing pure beer.

3. Water: Water is the most used raw material when brewing beer. Brewer water affects the characteristics and quality of beer through the production process.

4. Yeast: Alcoholic fermentation of beer is carried out by yeast, so beer brewing inevitably requires yeast, and the by-products of yeast have a great influence on beer quality.


Brewhouse system Features:

Brewhouse is the most important process in the preparation of wort. Through the mashing process, it is the insoluble substance in the malt powder that is converted into a water-soluble substance.


360c6cbbff_副本-min

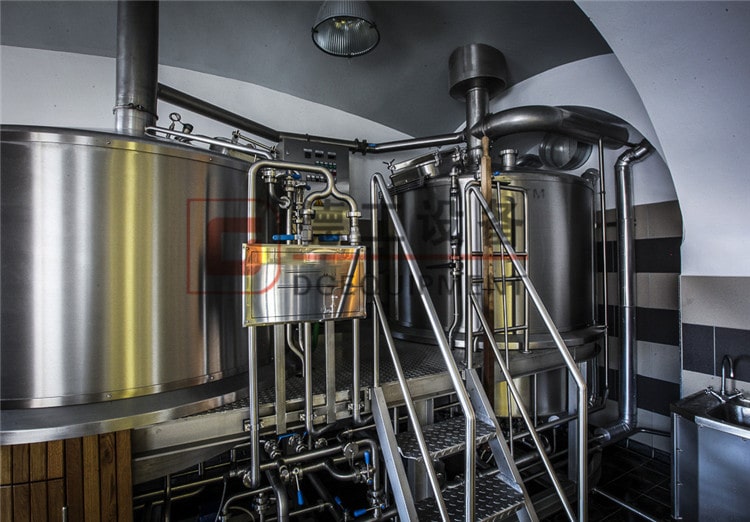

2 vessel brewhouse

Brewhouse Details:

Mash & Lauter tun used for producing craft beer

Made of stainless steel 304.

Exterior walls completely welded with TIG welding, with 100mm of insulation in the bottom of the tank and in the walls.

Mirror polished interior.

Integrated jacketing system with laser at the bottom and on the walls of the tank.

Heating velocity: 1ºC/min.

Components:

Detachable rectangular side cover to remove the used grain.

Motor system (adjustable speed/inverter).

False bottom filter.


2_副本-min

Dished head,glass manway and spent grains port


Boiling & whirlpool tank for craft beer

Vertical and cylindrical container made of stainless steel 304.

Exterior walls completely welded with TIG welding, with 100 mm of insulation in the inferior region and walls.

Mirror polished interior tank.

Jacketed at the bottom and on the walls, with heating capacity via electric heating/steam heating(Equipped with steam boilers: electric boilers, gas boilers and oil-fired boilers)/direct fire heating.

Components:

Tangential wort entry.


拼拼-min

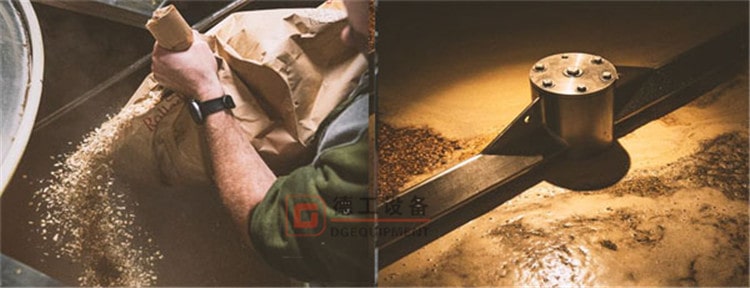

Feeding and wetting


Heat exchanger

Usage: wort fully cooled in one hour.

Temperature probe: PT1000.

Material: Stainless steel 304.

Wort cooling: from 100ºC to 18ºC.


细节0

Transfer pipeline,raker and plate heat exchanger


Fermentation tank Features:

Fermentation: The cooled wort plus yeast is sent to a cylindrical cone bottom fermentation tank for fermentation, cooled with a jacket and controlled for temperature. When the following fermentation is carried out, the maximum temperature is controlled at 8 to 13 ° C. The fermentation process is divided into a foaming period, a high foaming period, and a low foaming period. Generally, fermentation takes 5 to 10 days. Fermented beer is called tender beer, bitter taste, rough taste, low CO2 content, not suitable for drinking.


123-min

Cylindro-conical fermentation tank

Fermntation tank details:

Interior Tank Thickness: 3.0 mm;exterior Shell Thickness: 2.0 mm

Polyurethane Insulation Thickness: 100 mm

Glycol Jacket (Dimple-Welded) Thickness: 1.5 mm

Stainless steel 304 sanitary construction

100% TIG welded and sanitary polished

发酵罐组件细节-min

Fermentor components

Fermentation tank includes:

Blow Off Arm;Pressure Relief Valve

Hop Addition Port

Rotating 360° spray ball;Pressure Gauge

Carbonation Stone;Racking Arm

Sample Valve;Lifting Lugs

Side Shadowless Manway

Dual Zone Cooling Jacket with glycol inlet and outlet

Glycol Inlet & Outlet located on Cylinder

Glycol Inlet & Outlet located on Conical

Thermo-well Port

4 Heavy-Duty Stainless-Steel Legs

Leg Heights are easily adjustable with foot leveling pads

Assortment of Tri-Clamp Sanitary Fittings, Gaskets, & Butterfly Valves


134_副本-min

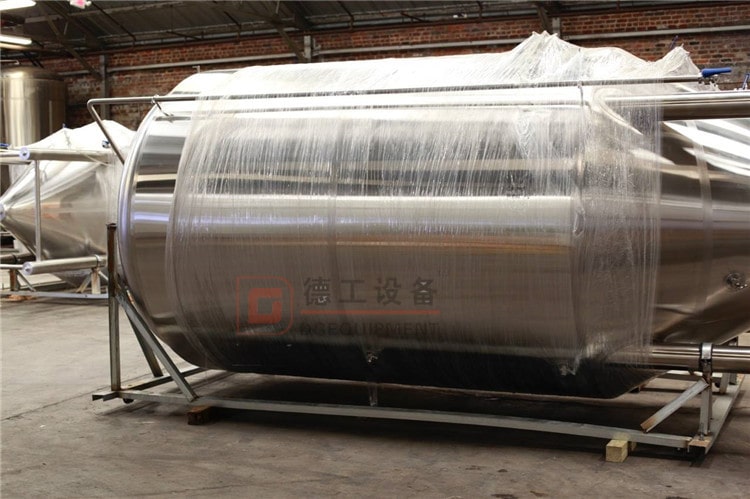

Stainless steel fermenter in brewery


Post-fermentation: In order to make the tender beer mature, it will be sent to a wine storage tank or continue to cool in a cylindrical cone bottom fermentation tank to about 0 ℃, adjust the pressure in the tank, so that CO2 is dissolved into the beer. The wine storage period takes 1 to 2 months. During this period, the remaining yeast and condensed solids gradually precipitate, the beer gradually clarifies, CO2 is saturated in the wine, the taste is mellow, and it is suitable for drinking.


Filtration: In order to make beer clear and transparent and become a commodity, beer is clarified and filtered at -1 ° C. The requirements for filtration are: large filtration capacity, good quality, less loss of wine and CO2, and does not affect the flavor of wine. Filtration methods include diatomite filtration, cardboard filtration, microporous membrane filtration, etc.


Our company:

Whether you are a start-up, a well-established craft brewery or a market leading brand – you can benefit from DGET in the brewery industry. Our catalog of high-quality equipment ranges from complete systems to process units to components.

证书3-min

Our certification

Service:

Detailed and custom quotes;

Helping in sizing the additional equipment you may need for your system (i.e. glycol systems, steam boilers, etc.);

CAD Services;

If the customer needs, we can also provide installation, commissioning and training services.


Packaging & Delivery

Packaging Details: standard wooden package

Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.


装载2-min

The cargo ready to load


Contact information:

If you are interested in our craft brewing equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you.
