DGET-2000L
DGET
8438400000
We offers a wide array of fermenters(fermentation) and brite tanks(maturation) tanks that are designed accordingly to our customers’pecifications and their needs. Our fermenter and brite tanks come in three different generalized builds (customizable tanks are also available): single wall, un-jacketed and jacketed. All of our tanks can be pressurized (unless otherwise requested) and the fermenters have an added bonus of functioning as both a fermenter and BBT tank.
| Cylindro-conical fermenters: |
Fermentation under isobaric conditions is the quintessential process. These fermenters are also made of stainless steel 304, are cylindro-conical at 60ºC, thermal insulated and with a double jacket. But the advantages do not end there:
The isobaric fermenters allow for completion of the whole fermentation process without having to move the beer from the fermenter.The completion of the whole fermentation process without transferring beer from primary to secondary fermenter, is due to a superior technical requirement: they are capable of withstanding pressure. That means the subproduct of the fermentation resides within the fermenter: carbon dioxide.

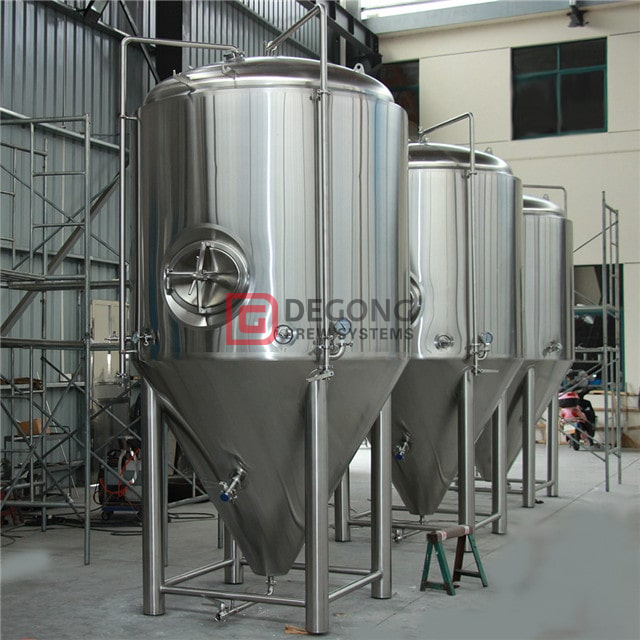

Fermentation tanks in the factory for sale
Specifications:
Interior Tank Thickness: 3.0 mm
Outer Shell Thickness: 2.0 mm
Polyurethane Insulation Thickness: 100 mm
Glycol Jacket (Dimple-Welded) Thickness: 1.5 mm
Stainless steel (304) sanitary construction
100% TIG welded and sanitary polished
Over pressure setting mechanism from 0 bar up to 3 bar (or more according to customer requirements)
Cooling channels – duplicators for circulation of coolant (glycol or water)
PUR insulation – thickness corresponding to the size of the tank and the environment
Stainless steel jacket – with the customer selected surface finishing
Guaranteed inner surface roughness of Ra = 0.6 microns or less (except in very small tanks and terminate-welds on medium-size tanks)
Manhole on the bottom or on cylinder part (according to customer requirements)
Outlet / inlet for beer
Outlet / inlet for dosing and discharge of yeast
Sanitation showers – spray ball (static or rotary) – one or more pcs according of length of the tank
Cleanable and sanitizable sampling cock
Double-acting air vent valve
Safety over pressure valve
Thermometer pocket
Cleanable and sanitizable glass level indicator

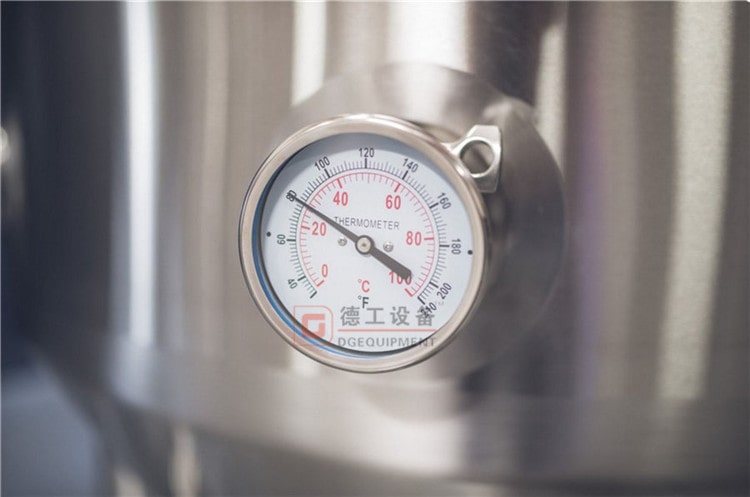

Thermometer on fermentation tank
Side manway （Optional top manhole）

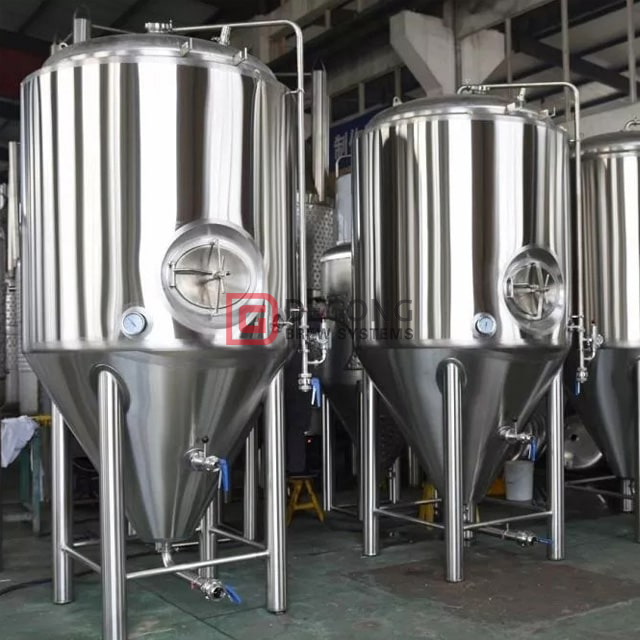

More fermentor details

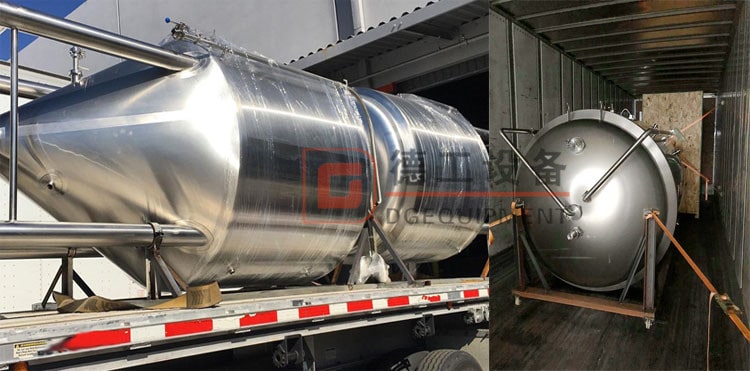

Load the fermentor into the container
| DGET brief introduction |
We are a beer equipment manufacturer dedicated to providing the best brewery solutions to customers worldwide.
We are confident to provide you with the high-quality brewery equipment you need, brewhouse tank, fermentation tanks, brite tanks, refrigeration units, filling machines, packaging machines, water treatment, etc.

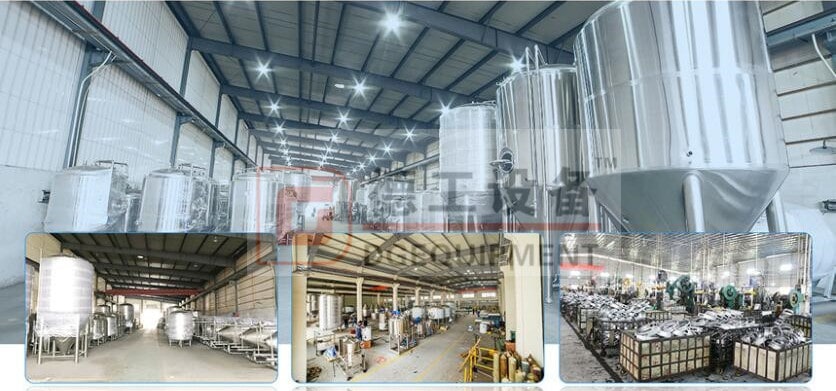

Our workshop
Warranty period:
a. For main parts of the equipment such as brewhouse tank, fermentation tank, bright beer tank, hot water tank, glycol water tank, etc... the warranty period is 24 months.
b. For other components such as refrigeration unit, control components, etc... the warranty period is 12 months.
c. Our equipments have been approved by TUV . Our equipments is accord with the German standard quality.
Our certification
After-sales service
After delivering the equipments to our customers, DEGONG will arrange special worker to do the track service, because we set up the marketing department for specially dealing with the feedback of customers for providing the satisfied service.
Within the warranty period, any malfunctions caused by the quality issues, DEGONG will be responsible to it.
For the malfunctions beyond the warranty period, DEGONG will also be responsible to it, but the seller should take in charge of the expenses.
If you have any questions or want to know the details, please feel free to contact me. We are always here, welcome!
