Industrial Brewery Equipment Professional stainless steel Beer Brewing Equipment Manufacturer 2000L beer production line

Whether you are a start-up, a well-established craft brewery or a market leading brand – you can benefit from DGET in the brewery industry. Our catalog of high-quality equipment ranges from complete systems to process units to components.
Thickness of material (mm):
Insulation:
Material:
fermentation tank Manhole:
Availability:
Quantity:
  • DGET-2000L

  • DGET

  • 8438400000

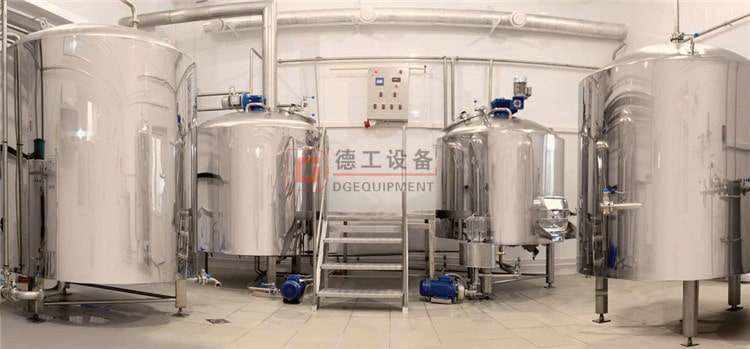

3_0-min

Customized brewery equipment


Brewhouse system :

Two-vessel brewhouse mostly in the volume from 100L to 20000L,which is suitable for a brewpub .The vessels, process, volume and configuration are custom-designed to satisfy the client usage and fit the client site.Two-vessel brewhouse is most widely commercial-used and with high performance-price ratio.

The system can be heated by steam,electricity or gas;and controlled by manual,semi-automatic or full automatic;and equipped with rake system or not.The mainstream of two-vessel brewhouse is steam heated and manual controlled system.


074_副本-min

Top manway


Standard configuration for 2-vessel brewhouse system includes 2 brewhouse vessels:mash/lauter tun and kettle/whirlpool combined vessel,work platform,and stainless steel sanitary piping and control system.


Mash/lauter tun typical features:

Top manway,CIP spray ball,top sparging system,port for grist hydrator,vapor vent port,gear drive and rake system;

False bottom removal slot,thermowell port,wort recycle ,rectangular side manway with manway cover for spent grain-out;

Wort out collector,milling false bottom,false bottom under-flush assembly with spray nozzles,spent grain-out port.


QQ截图20191212113619_副本-min

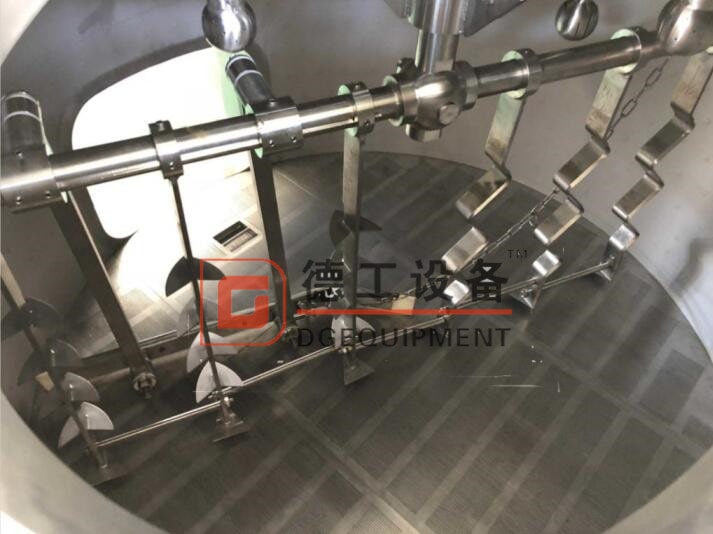

Raker and false bottom


Kettle/whirlpool combined vessel typical features:

Top manway,CIP spray ball,top sparging system,vapor vent port on the top;

Tangential whirling port,side steam jackets(or flange coupler for heat element for electrical kettle),thermowell port,side wort out port(for electrical and gas kettle);

Upper and lower wort out ports on hollow dish bottom,bottom steam jackets;or gas burning room for gas kettle,and slope flat bottom for gas kettle and electrical kettle.


mxofnu_副本-min

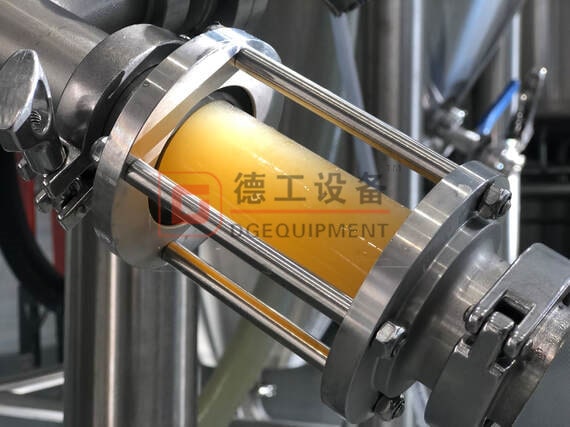

Sight  glass


Piping system includes all internal connected pipes for the brewhouse,i.e.:wort piping,sparging piping and CIP piping;also includes the necessary functional assemblies,such like liquor blending system with flow meter,and wort aeration with sterile air filter;and the auxiliary equipment,such like wort pump(s)and heat exchanger;and all fitting,valves and devices in the pipes.Brewhouse pipes material is 304 sanitary stainless steel.

Manual control system includes the control panel,VFD,RTD and wiring.


hec_副本-min

Heat exchanger


Fermentation tank features:

Double jacketed 60º cylindro-conical fermenters

These fermenters have the minimum characteristics that we advise for the professional production of beer. They are made of stainless steel 304, they are cylindro-conical at 60º and they have a double jacket in the cylinder and cone to control the temperature.


3发-min

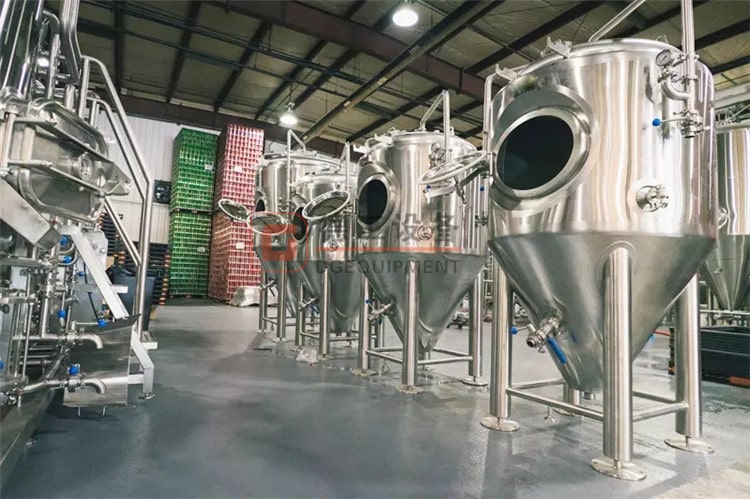

A set of fermentation tanks


发酵细节_副本

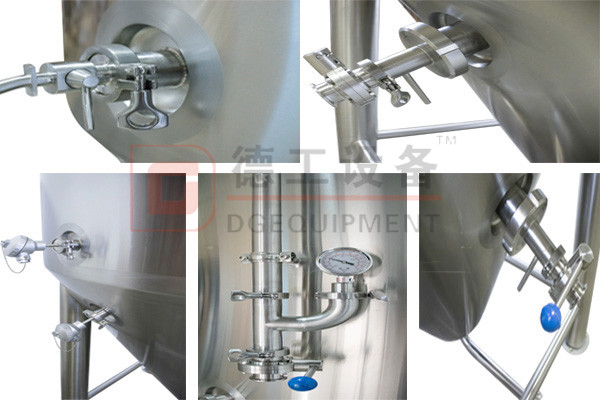

Fermentor component details


brite-tank thermometer-min

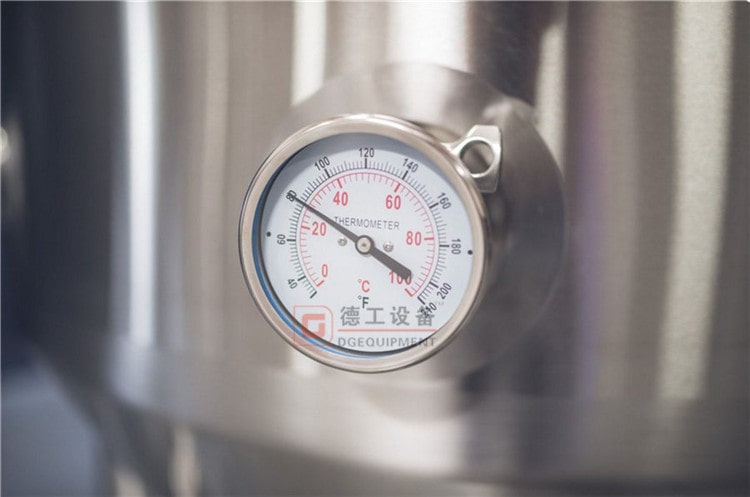

Thermometer

CCT (cylindrical-conical tanks) features:

Material:stainless steel 304;inner shell=3mm,outer shell=2mm;jacket shell=1.5mm

top or side (at the choice of the client) the inspection sealed hatch;

a small hatch for a yeast (option for a side hatch);

fittings for connecting CIP-station and carbon dioxide baloon;

rotary washing head;

safety valve,Breathing valve;

bottom valve for draining yeast sediment and washing liquid;

tap for supply wort and beer drain;

sampling valve;

beer temperature sensor;

automatic valve coolant supply.


Water treatment:The suspended particles are removed by membrane filtration. The filtered water, on its way to the clear water tank, where it is temporarily stored, is disinfected with chlorine to get rid of all harmful bacteria and viruses. Finally, the water goes through a series of water quality tests before it is piped to the customers.


7292591b3d_副本-min

Water treatment machine


CIP_副本-min

Movable cleaning tank


Our company:

Whether you are a start-up, a well-established craft brewery or a market leading brand – you can benefit from DGET in the brewery industry. Our catalog of high-quality equipment ranges from complete systems to process units to components.

证书2-min

Certification


KEHU1-min

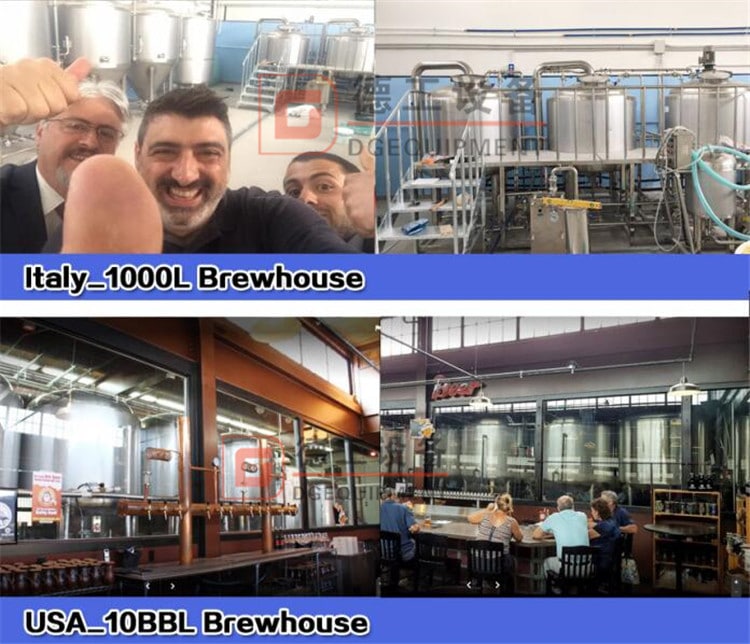

Customer project presentation


Packaging & Delivery

Packaging Details: standard wooden package

Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.


装载2-min

The cargo ready to load


Contact information:

If you are interested in our craft brewing equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you.
