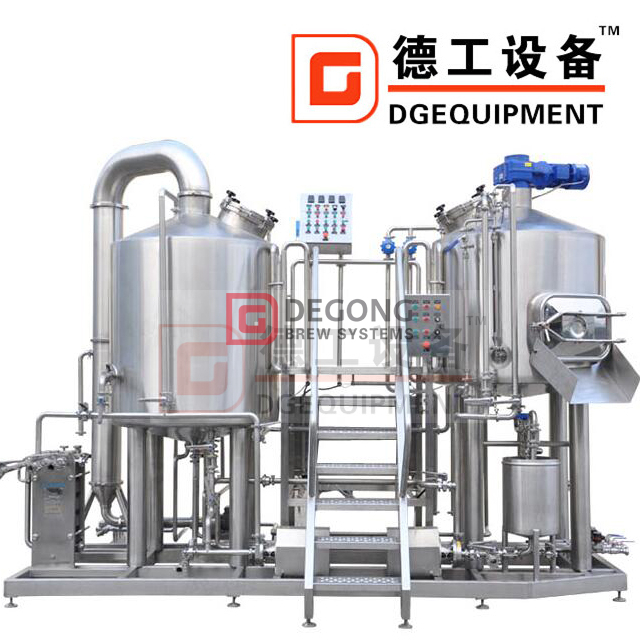

DGET-700L
DGET
8438400000
| Specifications of beer brewing equipment |
Specifications：
Available capacity of 50L to 10000L system
SUS 304/SUS316/Copper clad,Inner Thickness=0.3mm,Outer thickness=0.2mm
Optional heating style of steam, electric and direct fire for brewhouse tanks
Internal 2B finishing, welds polishing to 0.4um
Cylindric and bottom with steam jacket–Max 3 bar pressure ensures 1°C/min heating speed.
PLC control panel with Siemens,Omron,Schenider element,and accord with EU standard
VFD controlled reducer and wort pump
Assembly sanitary rotary spray balls for cleaning
PU insulation,thickness:100mm
Temperature sensor(RTD) in a thermowell
Rake and mash agitator assembly with top/bottom reducer
| Component of beer brewing equipment |
Mill System | |||
01 | Mill Machine | 1 piece | 500-800Kg/h; Breaker Roll Type; Adjustable mill degree; Power:2.2kw; Voltage:230V; Model:Fm-011; Faster Roller Speed: 700rpm Crushing Particle Size: Adjustable Ratio of Magnetic Metal Material:≤0.003g/kg Temperature of Rollers after Production:≤56℃ |
02 | Malt screw auger | 1 piece | Capacity:1000kg-3000kg/h; Power:1.5Kw; |
Basic information | 1.The beer brewhouse contains four functions,mash,lauter,boiling and whirlpool.You can combine the functions in two tank or three tank freely.And we usually add a hot liquid tank and cold water tank to improving mashing efficiency. 2.Heating method,there are electric heating,steam heating and gas heating.For 10bbL beer brewhouse system,we often recommend steam heating. |
Technical parameter | Useful capacity:950L,total capacity:700L Heavy duty false botton with pillar support system Fully insulated vessel SS CIP High-flow rotary spray ball with 360 degree of coverage Interior light Sparge ring assembly Top mahway(tempered glass) Side manway for spent grain out Gap of the sieve is 0.7mm automatic spent grain removable system |
Other component | 1.SUS Plate heat exchanger 2.VFD motor of rake/agitator.VFD motor of wort pump 3.Pipelines&valve 4.ABB/Siemens motor 5.Platform 6.Oxygen system 7.Grant 8.Grist&mash in system 9.Yeast feedder 10.Hops filter |
Basic information | The fermentation vessel is equipped with a separate cooling zone that can be individually controlled and fully insulated. Includes CIP tube and cleaning head. The materials and surface treatment used depend on the intended application and customer specifications. |
Technical parameter | Stainless steel 304 sanitary construction 100% TIG welded and sanitary polished Design pressure is 0.3MPa,using pressure is 0.15MPa 4 heavy duty stainless steel legs with adjustable height and leveling footpads Interior:stainless steel 304,thickness 3mm Interior treatment:Mirror polishing Outerior:stainless steem 304,thickness 2mm Jacket:stainless steel 304,thickess 1.5mm Insulation:100mm Polyurethane 60 degree conical bottom Heat exchanger area:5.89m2 Side mahole |
Cleaning system | |||
01 | Washing pump | 3000l/h – 1pc | SS anticorrosion pump, Power：0.75KW lift:18m Rev:2880r/min |
02 | Alkali tank | Useful capacity：200L – 1pc |
Inner surface treatment: welds grinded to Ra 0.6µm. Material all adopt the international standard of 304 stainless steel, all welding are argon protection single-sided, double-sided forming.
|
03 | Sterilization tank | Useful capacity：200L – 1pc |
Stainless steel304, thickness: 2mm Inner surface treatment: welds grinded to Ra 0.6µm. Material all adopt the international standard of 304 stainless steel, all welding are argon protection single-sided, double-sided forming.
|
04 | Control box | – 1pc | Cabinet Material: Anti-power Plastic painting Assembling Style: Wall mounted Type Electrical Components: World wide brand CE certificated CIP pump on/off Heating elecment on/off Temperature controller for special request Auto on/off Timer for heating for special request VFD control for CIP pump for special request |
Cooling system | |||
01 | Glycol tank | – 1pc | 1.Material: Inner(SUS304),thickness:3.0mm; Outer:2.0mm(Stainless steel); 2.Insulation: Polyurethane-thickness 100mm. 3.Temperature mode: PT100 temperature probe,temperature transmitting, temperature control panel display |
02 | Cold water tank | - 1pc | 1.Material: Inner(SUS304),thickness: 3.0mm; 2.External-Jacket(SUS 304 thickness: 1.5mm; 3.Cylinder (sharp type, SUS304), thickness: 2.0mm. 4. Inner surface treatment: welds grinded to Ra 0.4µm. 5. Insulation: Polyurethane-thickness 100 mm. 6. Temperature way：Double metal thermometer 7. Outsourcing surface: Weld polishing processing 8. Jacket Pressure: design pressure 0.3 MPa, working pressure <0.2 MPa. 9.CIP 360 degrees Omni bearing cleaning |
03 | Refrigerating unit | -1pcs | Medium：Freon R-404A Working voltage:230V |
04 | Circulate pump | – 2pcs | Flow：3 m3/h, Lift：25m, Power:0.75KW; |
Control system | |||
01 | Mashing control | Manual operate Instrument Semi-Auto-control European standard Siemens,Schneider,Omron component 1 set
| Mixing, rotation, wort pump |
02 | Fermenting control | Temperature, pressure, lamp | |
03 | Cooling control | Machine unit, pump, temperature | |
04 | Cleaning control | Cleaning pump | |
05 | Miller control | ||
Pictures
| Our equipment shows in customer's brewery |
| Delivery |
FAQ
1.Electric power:It can be customized according to customer’s local condition.Such as 220V,230V,380V,430V; 50HZ or 60HZ;3 phases or single phase.
2.Price:Every customer has different requirement,so we need to confirm your requirement first,then give you price.Such as some customer require steam heating,some customer require electric heating;Some customer require 2 vessels brewhouse and some customer require 3 vessels brewhouse;Some customer require top manhole for fermentation tank and some customer require side manhole.So even both 1000L equipment,there price are different.So we need to confirm your detailed requirement first.
3.How to see if your company is trust?
We have sold many equipment to EURO.We can give you our customer’s contact information,you can listen to their advice or visit their brewery.
4.How should we do if we don’t know how to brew beer and install equipment?
We will dispatch engineer to install equipment and teach you how to brew beer freely.
If you have interest,please get in touch with me freely.
