PED Certificated 20HL Steam heating SUS304 beer brewing equipment for commercial using

DEGONG can design and manufacture turnkey microbrewery for brewery used or restaurant/brewpub/bar used....All of the turnkey microbrewery is customized according to your requirement.For brewery used,most customer will choose stainless steel material;For restaurant,brewpub,bar used,most customer will choose copper beer brewing system for its good exhibition.If you don't know more about the turnkey microbrewery,our engineer can give you the most professional suggestions according to your brewing plan,such as daily output or others....

Thickness of material (mm):
Insulation:
Matrial:
Heating method:
Control panel:
Quantity:
  • DGET-2000L
  • DGET
  • 8438400000


DEGONG can design and manufacture beer brewing equipment for brewery used or restaurant/brewpub/bar used....All of the brewing system is customized according to your requirement.For brewery used,most customer will choose stainless steel material;For restaurant,brewpub,bar used,most customer will choose copper beer brewing system for its good exhibition.If you don't know more about the turnkey microbrewery,our engineer can give you the most professional suggestions according to your brewing plan,such as daily output or others....

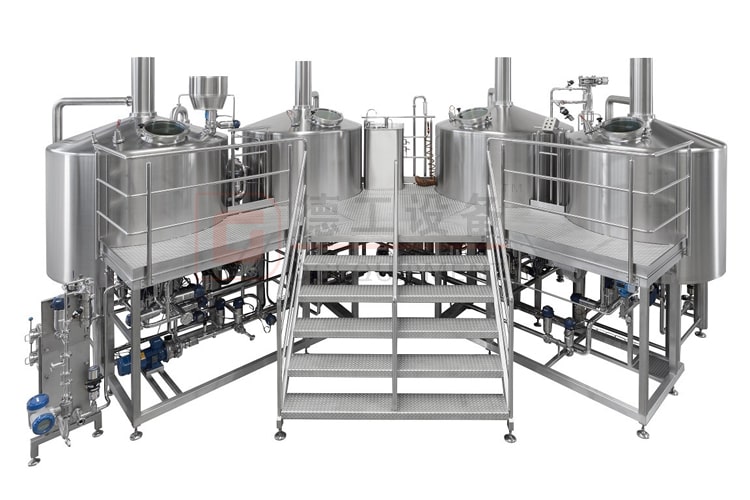

20HL Beer brewing equipment for commercial using

The turnkey beer making system includes milling, mashing system, fermentation system, cooling system, CIP and control system.Every system is indispensable and variable.In other words, the system with same size has thousands of different configurations.


Beer Brewing equipment introduction


Brewhouse :

  • SUS 304/SUS316/Copper clad,Inner Thickness=3mm,Outer thickness=2mm;Jacket thickness=2mm

  • 2 vessels or 3 vessels or 4 vessels

  • Optional heating style of steam, electric and direct fire for brewhouse tanks

  • PLC control panel with Siemens,Omron,Schenider element,and accord with EU standard

  • VFD controlled reducer and wort pump

  • Assembly sanitary rotary spray balls for cleaning

  • PU insulation

  • Temperature sensor(RTD) in a thermowell

  • Rake and mash agitator assembly with top/bottom reducer

  • False bottom for lauter tank with 0.7gap

  • Grist hydrator with strike water mixing station

  • Plate heat exchanger for cooling wort

  • Grant /hop guns for filter or storage first wort

  • Top glass manhole for checking mashing condition

  • Sight glass to check if the wort is clean

  • Wort oxygen system


Fermenter
  • SUS 304/SUS316,Inner Thickness=3mm,Outer thickness=2mm;Jacket thickness=1.5mm

  • 100% TIG welding with pure argon gas shield

  • Interior Finish: Overall polishing to 0.4~0.6 μm without dead corner

  • Insulation: Polyurethane; TH=100mm

  • Glycol Jacket: Dimpled plate on cone and side

  • CO2 blow-off arm with butterfly valve

  • Full sanitary sampling valve

  • Breathing valve on the top of tank

  • Mechanical relief valve 2 bar on CIP arm

  • Shockproof pressure gauge on CIP arm

  • Dry hopping port with solid end cap

  • 4pcs completely SUS304 heavy duty legs with leveling pad and legs support

  • Thermowell for high accuracy temperature sensor


Product feature


  • This set of micro brewery equipment is for micro brewery, especially for pub, restaurant, hotel, etc…

  • Novel structure and attractive appearance

  • More competitive price and better quality

  • CE, ISO, TUV approved equipment

  • More humanized design which allow you to operate easily

  • Compact design saving your space

  • All the materials touching the beer directly are all top quality food grade stainless steel.

  • We use the first rate valves and manholes for all our equipments.

  • I am here to guarantee all our customers that the materials are nonmagnetic.

  • The thickness of the material exactly fit in with what showed in the specification sheet.

  • If you are a new comer to the beer making field, Don’t worry, I will give you our professional recommendations. And the equipment must be top quality engineered.

  • Engineer is always available to make the relative 2D and 3D drawings for you for your reference.



Pictures show


7BBL Beer mashing system

7BBL Beer mashing system with mash/lauter tank+boiling/whirlpool tank+hot water tank

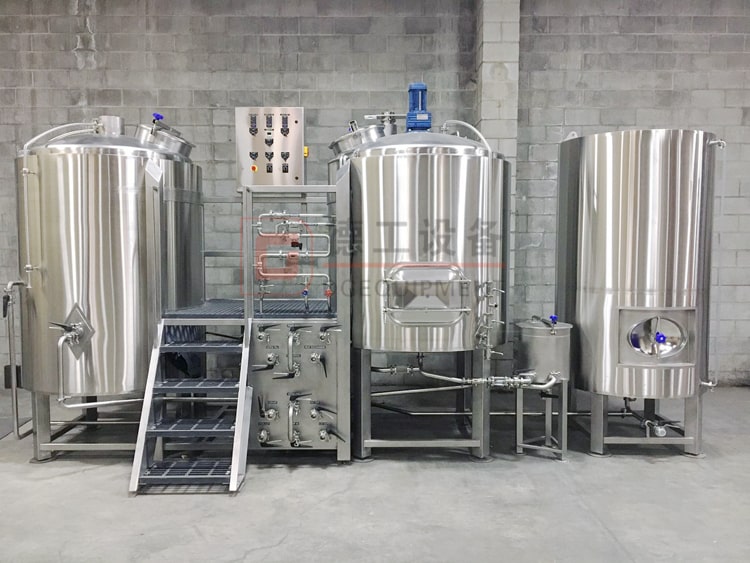

500L Stainless steel beer brewhouse with steam heating

500L Stainless steel beer brewhouse with steam heating

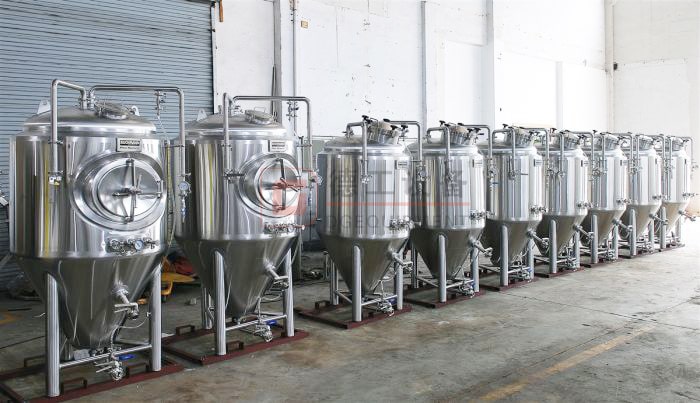

fermentation tank

500L stainless steel conical fermenter

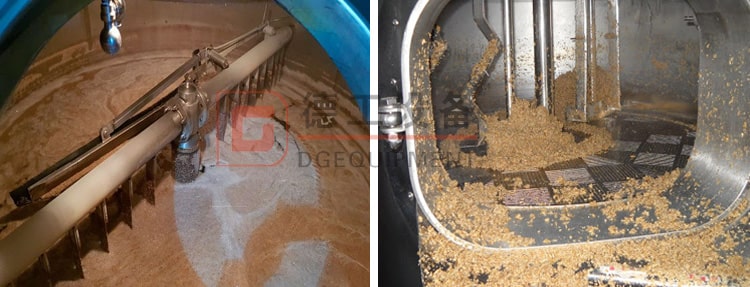

Mash&Lauter

Mash&Lauter

weibiaoti-min

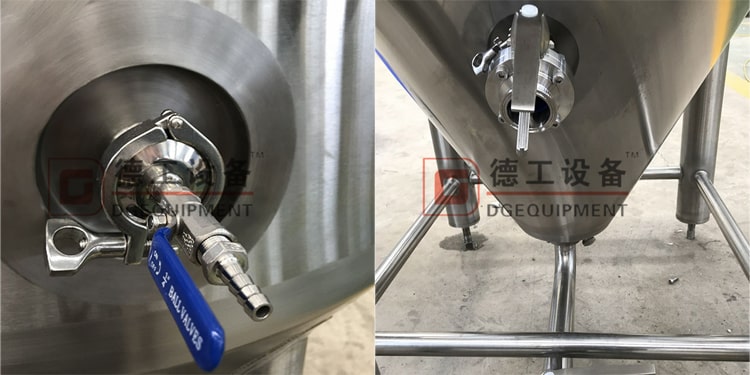

Fermentation tank accessory-Carbonation stone,raking arm

jixieshidiaojiefa-yalibiao_750

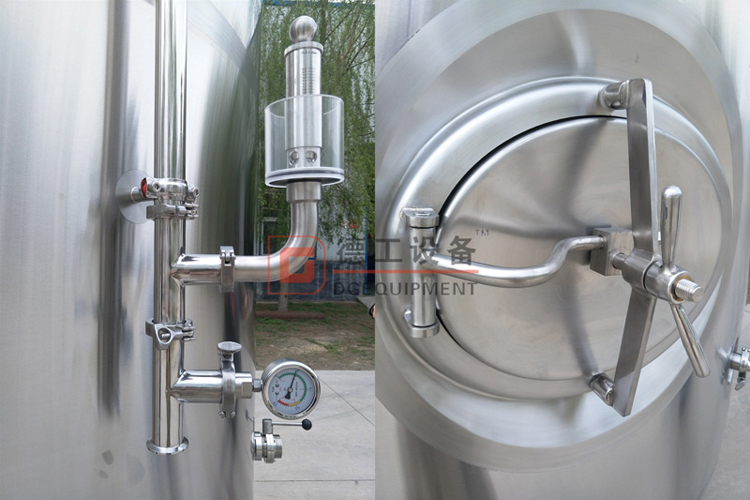

Fermentation tank accessory-Pressure gauge,mechanical regulaltion valve,side manhole
