10HL Commercial automated craft beer brewing equipment for sale

As one of the best selling brewery models in my company, 10HL beer brewing equipment is designed and made based on years of experience in the beer brewing industry. 10HL beer brewing equipment is custom built to meet every customer's specific needs. It is a complete set of brewery equipment from malt milling system to beer aging system. The 10HL beer brewing equipment is CE ISO TUV approved.

Insulation:
Pressure :
Heating method:
Certificate:
Matrial:
Quantity:
  • DGET-10HL
  • DEGONGET
  • 8438400000

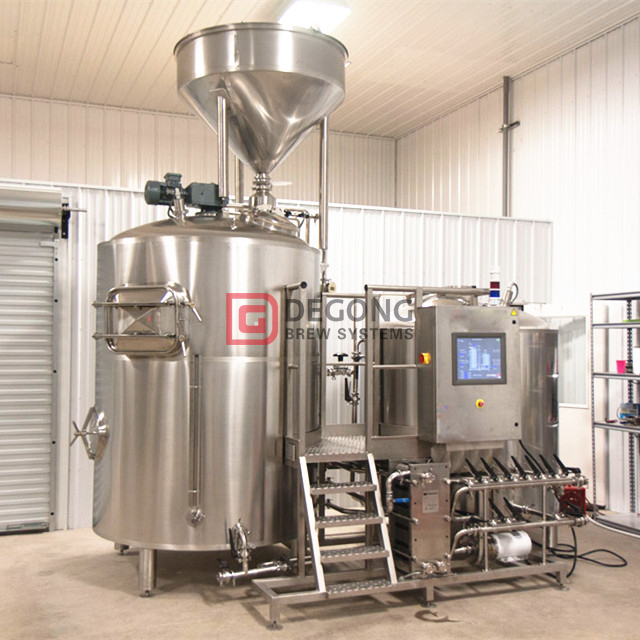

                                        10HL steam heated beer brewhouse made in Degong


10HL beer brewing equipment is one of the best-selling brewery models in my company. A complete set of beer brewing equipment is consisted of malt milling part, Brewhouse part, fermentation system, cooling system, CIP system, control system and other auxiliary accessories such as kegging machine, bottling machine, etc... Our 10HL beer brewing equipment has been sold to over 30 countries worldwide, especially in European market and USA market. The set of 10HL beer brewing equipment is approved by CE ISO TUV. And the components we use for the set of system are from the world renowned companies such as ABB, Siemens, Omron, etc...


Beer brewhouse of 10HL beer brewing equipment:


Mash/Lauter tun:

- Stainless steel grist hydrator

- Upper and lower steam jackets

- Heavy duty false bottom with pillar support system

- CIP spray nozzles under false bottom

- Multiple wort drain locations

- Fully insulated vessel

- SS CIP high-low rotary spray ball with 360 coverage

- Interior LED light

- Top tempered glass manway

- Side manway for automatic spent grain out

- Automatic variable speed rake system

- SEW/ Siemens motor for rake





Brew kettle/ Whirlpool tank:

- Upper and lower steam jackets

- Tangential wort inlet

- Fully insulated vessel

- SS CIP high-low rotary spray ball with 360 coverage

- Top tempered glass manway

- Interior LED light



Fermentation system of 10HL beer brewing equipment


- 100% TIG welded and sanitary polished

- Design pressure: 3 bar, test pressure: 2 bar

- 4 heavy duty stainless steel legs with adjustable height and leveling pads

- Interior shell: stainless steel 304, thickness: 3.0mm

- Interior (2B) and exterior finished bright polish, sanitary surface

- Tri-clamp sanitary fittings

- Vacuum & pressure relief valve

- Pressure gauge

- Thermometer gauge

- Sample valve

- Lifting lugs

- Ladder hooks. Also designed to hold brewer hose when not in use

- Side manway

- CIP arm and rotary spray ball with 360 of coverage

- Dual zone cooling jacket with glycol water inlet and outlet

- Rotating racking arm and discharge port with valve

- Dry hopping port

- Thermowell with RTD temperature sensor
