DEGT-1000L
DEGT
8438400000
Adopted the scientific technology to keep pressure,cooling,there is also a jacket in the cone to low the temperature.Realized lowering the temperature rapidly,lowering the part,lowering the cone.Perfect cleaning condition,scientific design of the tank,head and the cone.Ensure the CO₂ supply,low temperature of the beer,cleaning of the tank.Ensure the tank is connected and shares with the CIP system,ice water,temperature control.
1. Material Inner (SUS304) TH=3.0mm; Outer(SUS304) TH=2.0mm
2.External-Jacket(SUS304) TH=1.5mm; Oval head cone bottom TH=3.0mm
4.Surface: Finish 2B – cold-rolled, annealed
5.Inner surface treatment: welds grinded to Ra 0.4μm (attached 360 degree Omni cleaning ball)
6.Mirror surface finish inside
7.Insulation: Polyurethane-thickness:100 mm
8.Equipment with : cone 150°resist compression design
9.Vessel Pressure:1.5 bar / 3.0 bar
10. Glycol Jacket: Dimpled plate on cone and side
11. Stringent tank leakage test by water and pressured gas
12. Stringent Jacket leakage test by water and pressured gas
13. Sanitary side manway with pressured door
14. TC connected CIP arm with 360° coverage spraying ball
15.Full sanitary metallic sealed sampling valve
16.Hydraulic shock pressure gauge and mechanical regulation valve on CIP arm
17.Tri clamp discharge arm with butterfly valve
18.Thermowell for high accuracy temperature sensor
19.4pcs completely SUS304 heavy duty legs with leveling pad and legs support
20.Complete valves, fittings and all parts
21.Dry hopping port TC with solid end cap
22.Carbonation stone
23.With pressure gauge, temperature probe, side manhole, mechanical regulation valve.
Vertical bright beer tank
Vertical bright beer tank detail

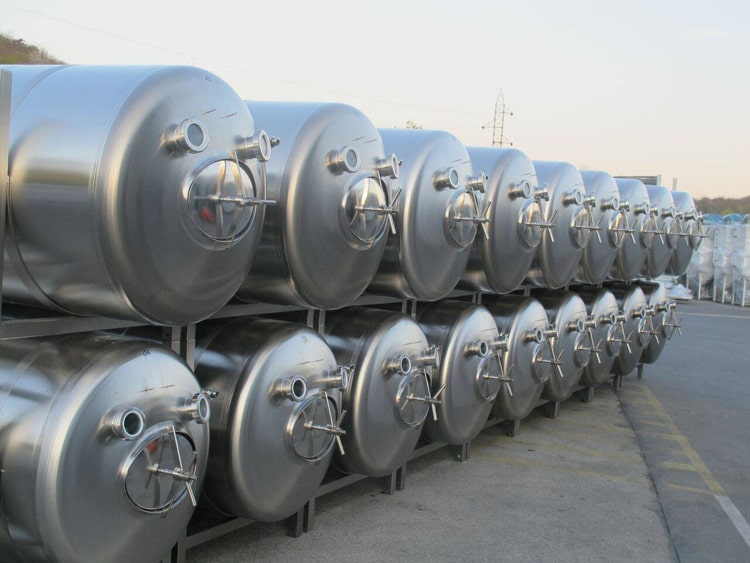

horizontal lagering tank

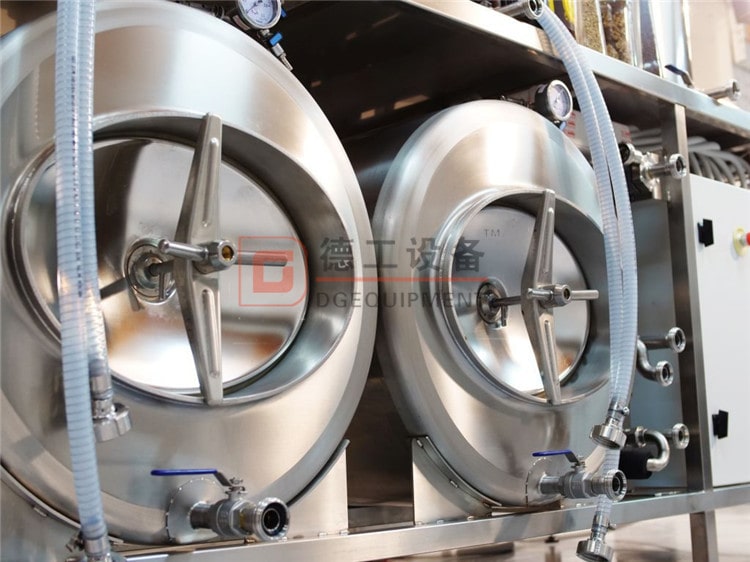

Horizontal lagering tank detail
1. DEGT is a professional company of beer brewery equipment ,nearly 10 years of beer equipment manufacturing history（ including Production→ Inspection→ Packing & Shipping→ Installation &Training → After Sales）will do its best to meet the needs of customers in all regions.Since the establishment of the company, it has been well received by numerous customers. These products enable systematic execution of milling, mashing, fermentation, filtration, filling and other related processes. Before bringing these products to market, we rigorously test on each system to ensure that each brewing system is intact.
2. The warranty period of our equipment is three years. Before we ship, we will mark the equipment, including the pipe, for the convenience of customers to assemble.
With our customers
If you want to expand own brewery, please contact with us.
