DGET-1000L
DGET
8438400000
Red copper 2 vessel brewhosue
Copper is one of the more traditional, yet aesthetically-pleasing materials for a brewhouse. A copper brewhouse provides a rustic appeal for the system, but beyond appearance, copper brewhouses transfer heat quickly and evenly. More often than not, the copper is the outer layer of the brewhouse and act as visual aesthetics. 304-grade stainless is the interior workhouse of the majority of copper brewhouses.
| Brewhouse system Features: |

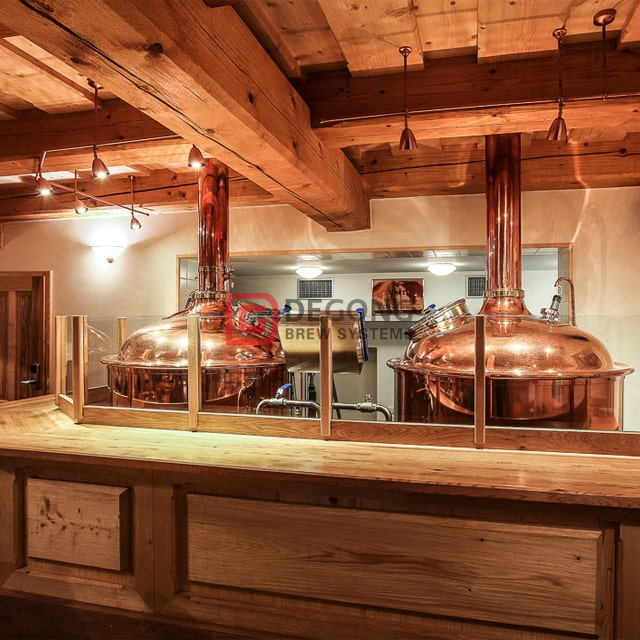

Red copper brewhouse
2-vessel brewhouse configuration offer brewers a simple and cost effective solution. Through combining mash tun & lauter tun, and kettle & whirlpool into a 2-vessel solution, it will help you on space and cost saving without compromising brewing quality and control.
1000L brewhouse configuration：
Mash/lauter tank
Boiling/whirlpool tank
Hot liquor tank and cold water tank
Equipment structure is composed of stainless steel and red copper
Inner shell：3mm;outer shell:2mm;steam jacket:2mm
PLC automatic control method(Optional semi-automatic)
Insulation: Polyurethane thickness: 100mm
Heating method: steam heating; electric heating; direct fire heating (Optional)
-TC connected CIP arm with 360° spraying ball
- Filter board gap is less than 0.7mm
- Dished top and conical bottom
-4pcs completely SUS304 heavy duty legs with leveling

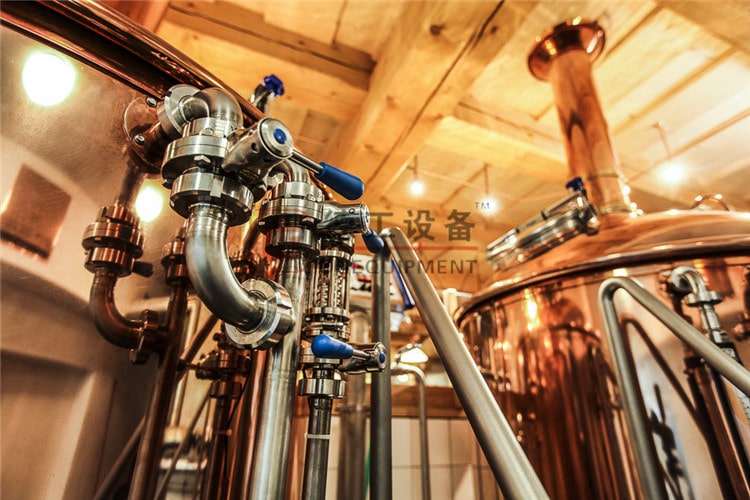

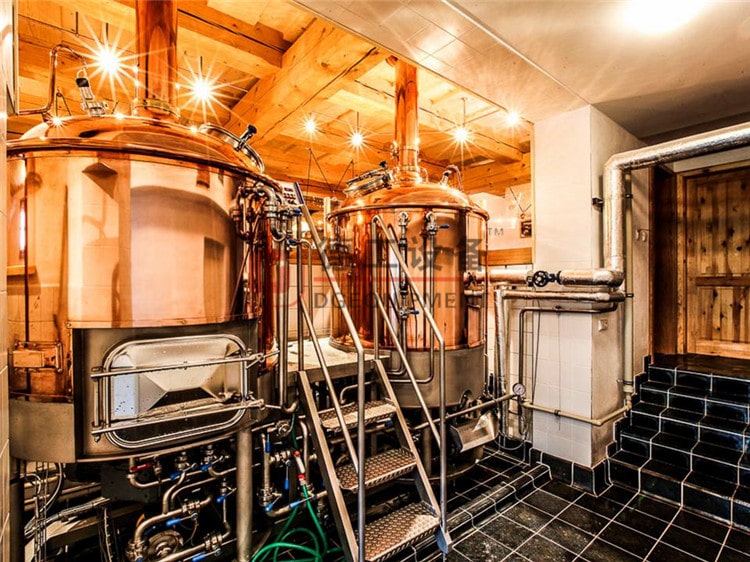

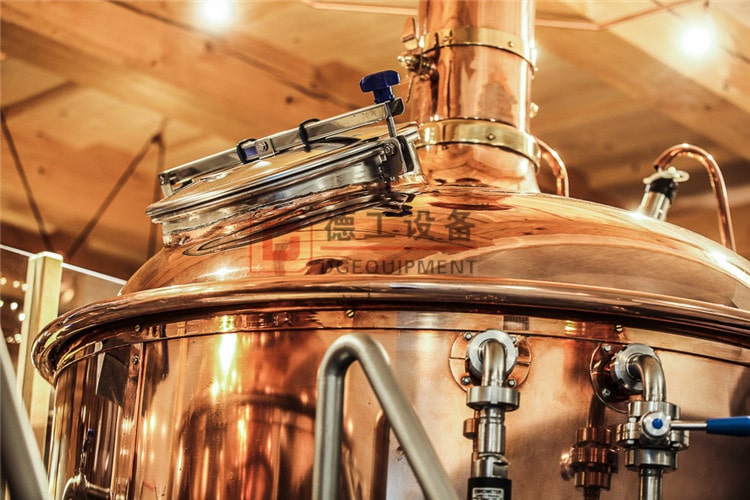

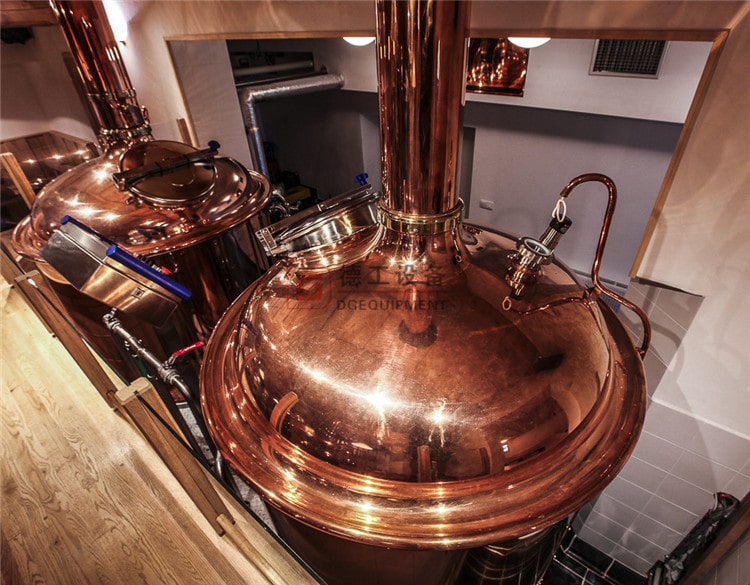

Brewhouse details:
| Fermentation tank features: |

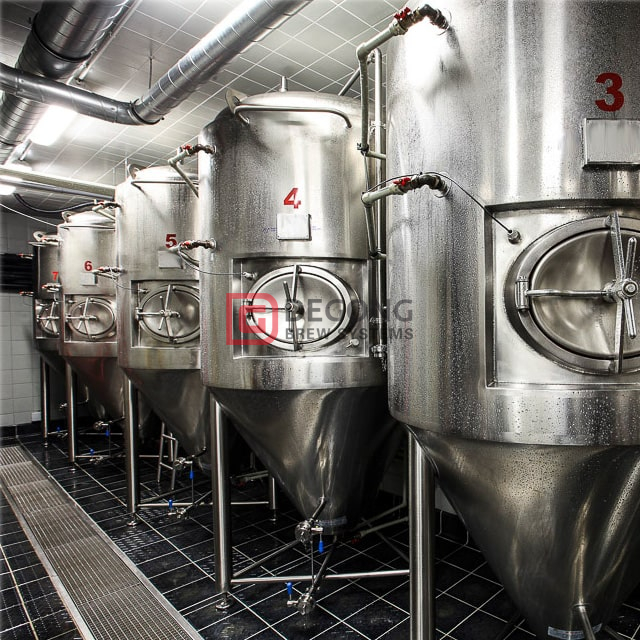

Available fermentation tanks
Fermentation tank details:（Cylindro-conical fermetnation tank）
Thickness: inner shell3.0mm; outer shell 2.0mm; jacket: 1.5mm
Insulation: Polyurethane thickness: 100mm
Cone 60° design
Interior full polished to Ra0.6µm without dead corner
Glycol jacket: dimpled plate on cone and side
Heat exchange area: 2.8m2
TC connected CIP arm with 360° spraying ball
Main accessories: mechanical type safety valve, sampling valve, pressure gauge, temperature probe, racking arm, leveling tube, solenoid valve

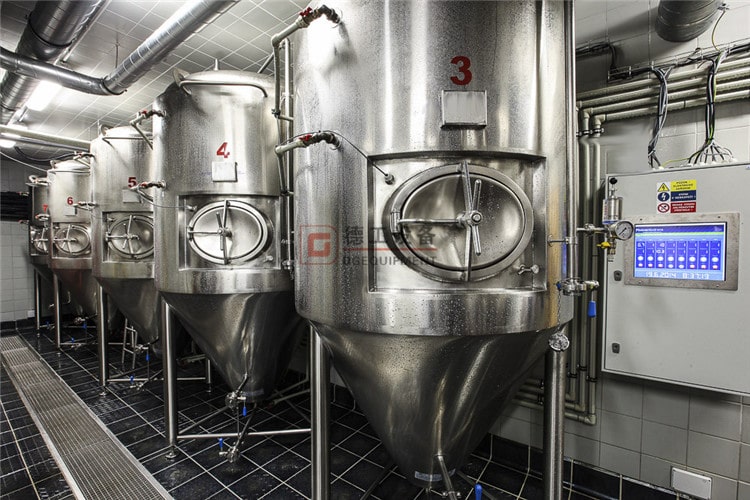

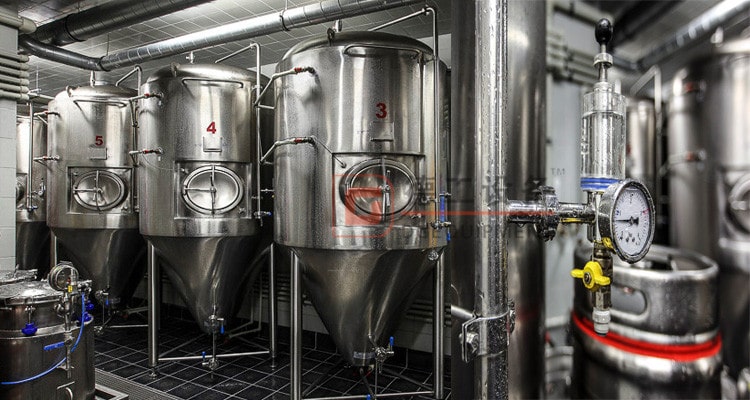

Stainless steel fermentation tank and pressure gauge

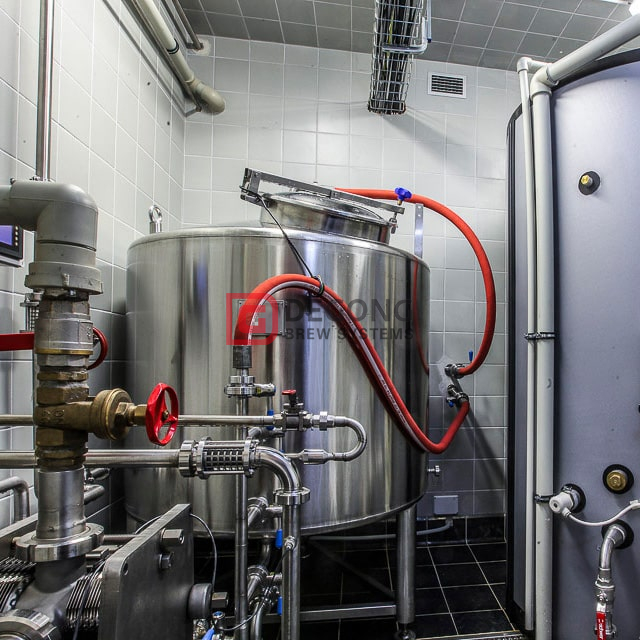

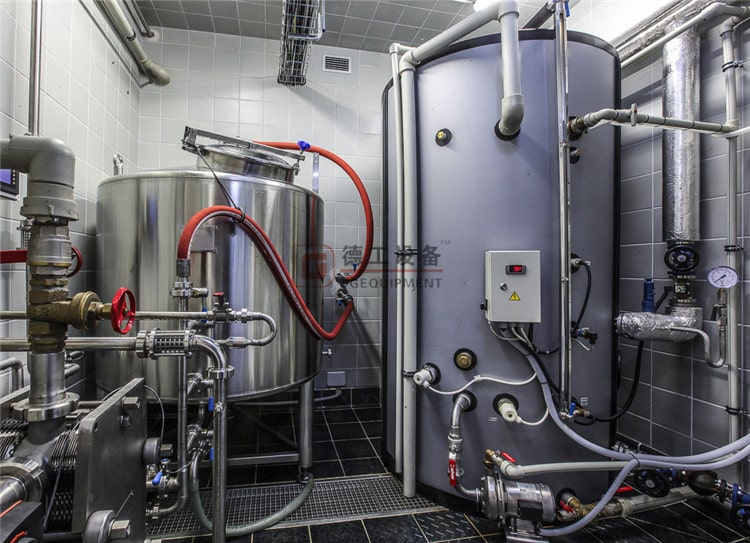

Cold water tank in cellar

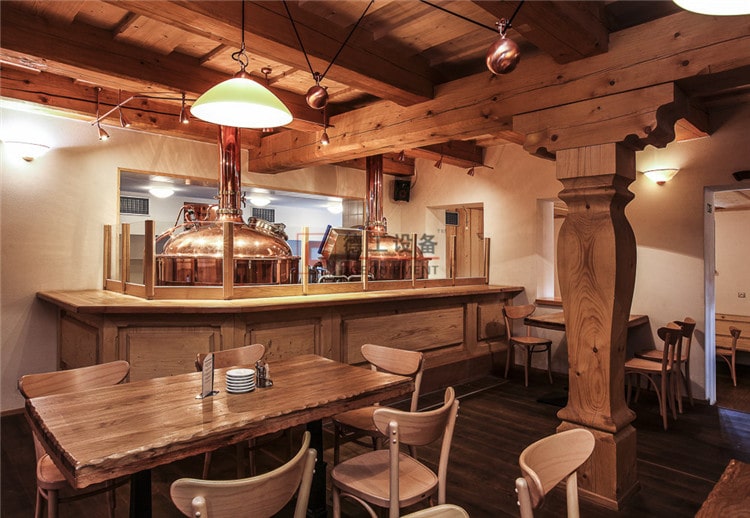

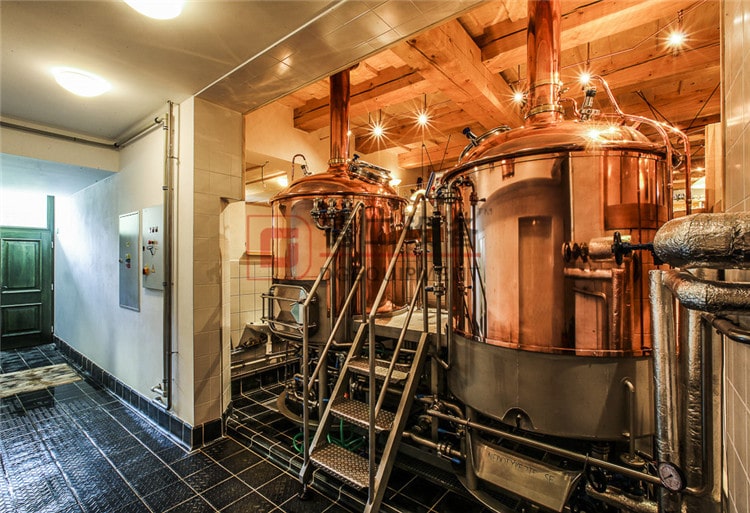

Brewery equipment in Tavern
| Our company: |
Whether you are a start-up, a well-established craft brewery or a market leading brand – you can benefit from DGET in the brewery industry. Our catalog of high-quality equipment ranges from complete systems to process units to components.
Our certification

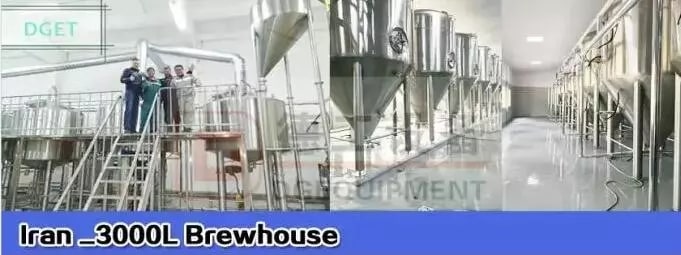

Customer project presentation
| Contact information: |
If you are interested in our craft brewing equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you.
