DEGT-2000L
DEGT
8438400000
2000L brewery equipment overview

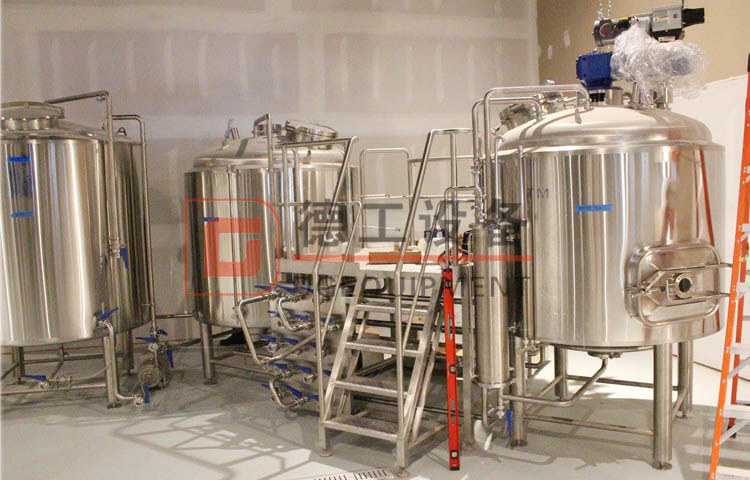

craft brewhouse for our customer

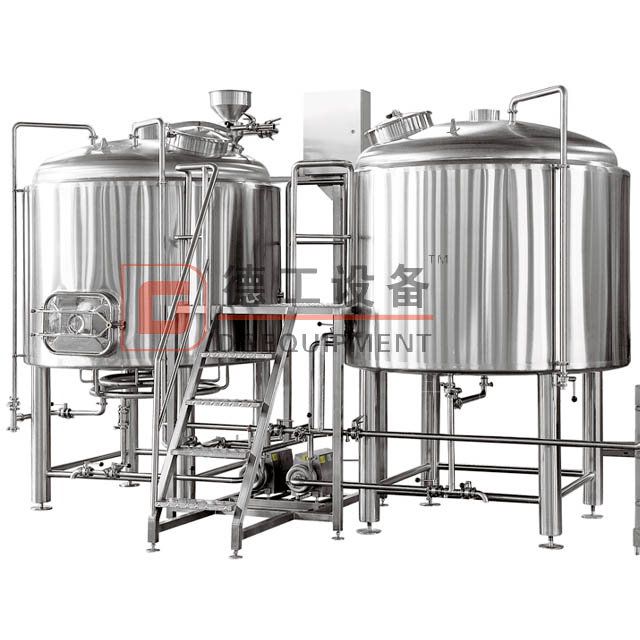

Brewhouse
the composition of brewhouse
2-vessel: mash/lauter tank and boiling/whirlpool tank(we recommend)
Combination tank:Mash lauter/whirlpool tank, kettle tank(you can choose)
3/4 vessels is also available if pub brewery space and operation needed
Hot water tank, cold water tank is optional.
Heating method of The Brewhouse
Electricity heating
steam heating(electricity,LPG,diesel oil,nautral gas)
direct fire heating
The Standard Of brewhouse
Volume: Working volume and 20%-30%additional space.
Inner Shell: SUS304 materials, thickness 3mm, acid washing and passivation treatment, furthermore,polishing and mirror treatment are workable with different cost.
All of the inner surface connection using turn up workmanship and polishing round.
All of the welding connection polishing treatment, more smooth
spent grains hatch & raker with ABB motor
Jacket conical fermenter tanks/unitanks'capacity & quantity customized
Stainless steel material, compression resistance design, design pressure 3bar
Working pressure 1.5bar, 48 hours pressure test for both interior and cooling jacket
Bright beer tank/serving tank,double wall or single wall, 150 degree bottom cone,with carbonization stone

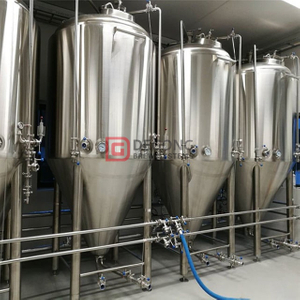

Partial display of the fermentation tank
Qlycol tank: double stage cooling, cooling system for both heat exchanger and fermenter.
Refrigeration unit and cold water tank
50L/100L/150L CIP cleaning, movable with wheel,including washing pump, alkali tank, circulation pump.
The cleaning of beer equipment is very important, it may affect the quality of beer
CIP system, movable with wheel
Material Of All The Tanks
All tanks are made of stainlsee steel 304/316
Interior stainless steel 3.0mm
Outer stainless steel 2.0mm(you can choose luxury red copper cladding)
High quality materials
The raw materials is SUS304 and SUS316, which require materials quality certificate.
We'll test the materials quality using chemical agent when we receive the materials.
We cut the materials on the soft carpet, avoid to damaging the surface of stainless steel, and then we adopt double argon protection welding.
Excellent appearance
The polishing standard of welding seam is 0.4um, All of connection required turn up workmanship and all of welding seam required polishing, which is more smooth tank surface. We’re very serious about the excellent appearance of tanks.
Insulation: Polyurethane, thickness 80~100mm
If you need a quotation and more details about equipment, get in touch with me any time.
