DGET-500L
DGET
8438400000
Fermentation tank configuration |
Beer brewing equipment cellar tanks fermenters in plant
Usually the size range of the fermentation tank we provide is between 100L and 20,000L; it can be a pressure tank or a pressureless tank; with or without insulation; single-layer tank or double-layer tank (usually we design a double-layer tank ). At the same time, depending on the capacity of the beer tanks, the manhole can be on the top or side.

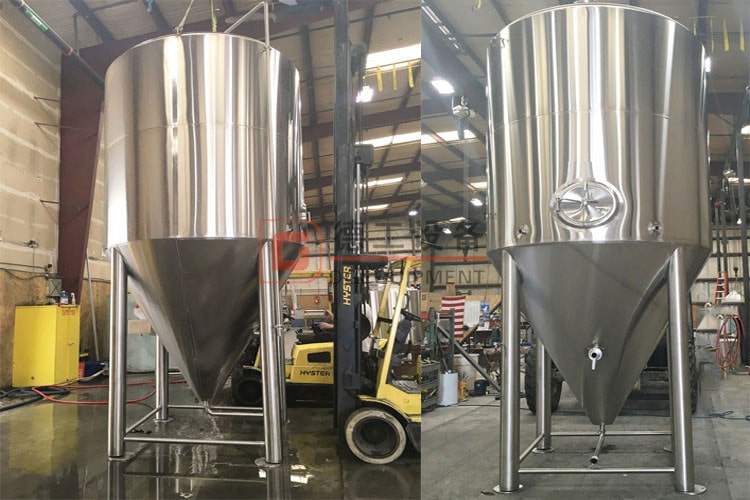

Top manhole beer fermentationt tanks
Larger capacity fermentation tanks are mostly side manholes
Fermentation tanks features:
Function | Wort Fermentation to get beer |
Total capacity | Effective capacity +20% Headspace minimum |
Interior Shell | SUS304 full welded; TH=3mm |
Exterior Shell | SUS304 full welded; TH=2mm |
Insulation | polyurethane,, TH=100mm |
Glycol Jacket | Dimpled plate on cone and side |
Surface treatment | Surface brushed; polish treatment |
Polish precision | 0.4-0.6µm |
Control way | Individually temperature controlled by PLC or DCS |
Washing way | CIP spray ball 360 degree no corner , in the center of the inside tank |
Bottom cone | 60 degree is prefer,customized based on clients' requirements |
cooling way | chiller and glycol tank |
Manway | top manhole or side manhole shadowless |
Welding way | Perfect argon arc welding, Ra <=0.4 μm |
Temperature control ways | Thermometer and Intelligent data meter |
Temperature measurement system | Temperature sensor PT100, temperature display by intelligent data meter |
Pressure control system | Automatic control electric connected pressure gauge |
Tank pressure | Design pressure 0.3MPa; Working pressure 0.15-0.2Mpa |
Valves and fitting | Matched valves SUS304 |
Optional | Capacity:100-20,000L Top hop additional port Carbonation stone |

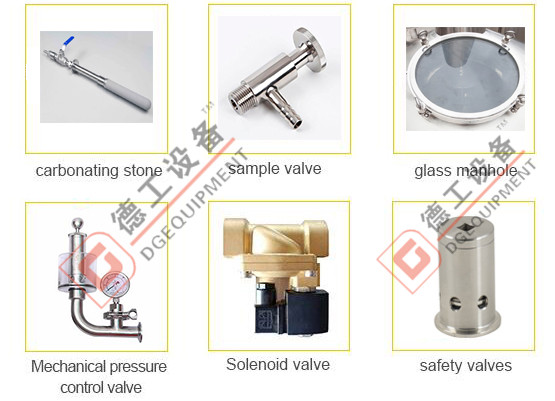

Fermentation tanks fitting
Brewery fermentation tanks(CCTs) drawing(can be Tailored)
