DEGT-600L
DEGT
8438400000
Processing: brewing beer
Condition:New
Place of Origin:Shandong, China (Mainland)
Brand Name: DEGONG
Processing Types:Alcohol
Voltage:380V/220V/230V
Certification:CE/ISO/PED
Warranty:3 years
Material:Stainless steel304
Shape:cylinder and cone
Mash system:can be customized(like 2-vessel,3-vessel,4-vessel...)
Heating method: can be steam heated, electric heated and direct fire heated.
Fermentation quantity:It depends on actual production.
Control method:PLC
Insulation thickness:60-100mm

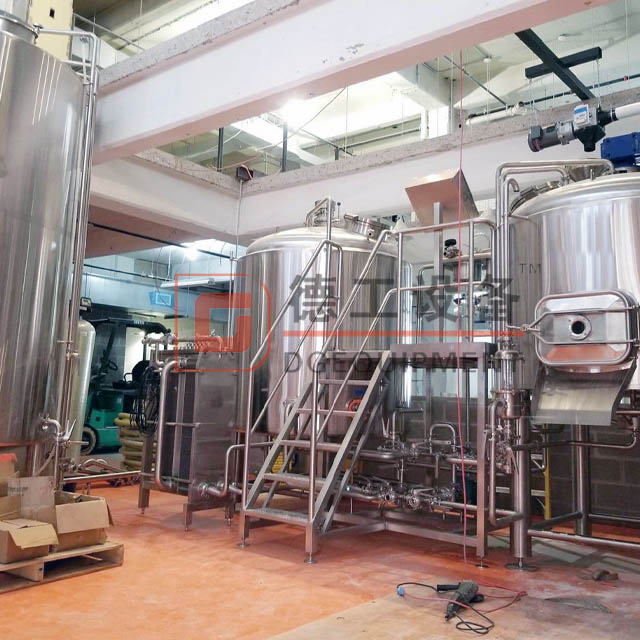

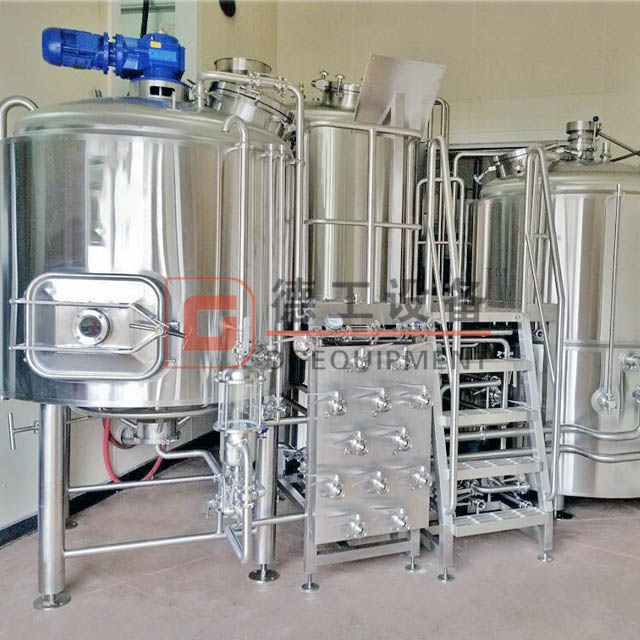

Today, let’s know more about 600L beer brewery equipment of brewhouse system.
Function: Grain mashing
Tank Capacity: 600L (+25% Headspace minimum)
Interior Shell: SUS304 full welded; TH=3mm
Exterior Shell:SUS304 full welded; TH=2mm
100% TIG welding with pure argon gas shield
Interior Finish: Overall polishing to 0.4~0.6 um without dead corner
Insulation: polyurethane; TH=80mm
Heating:steam/electric/direct fire heated
Steam Jacket: you choose steam heating.
Dished top and sloped bottom
Stainless steel top mounted manway
Top glass manhole
360 coverage CIP spraying ball
4pcs completely SUS304 heavy duty legs with leveling pad
Thermowell for high accuracy temperature sensor
About heating method:
As known to all: brewhouse system heating method have three method,including steam heated, electric heated and direct fire heated.
Steam heated: It is one of the most stable and efficient heating methods. The equipment is equipped with a steam jacket and a steam boiler is also provided. (Steam boiler: electric boiler, diesel boiler, gas boiler)But in some countries the use of boilers is very strict, so we recommend electric heating.
Electric heating: The equipment is heated by electric heating pipes. But Electric heating is not recommended for equipment over 1 ton.
Direct fire heating:There is a boiler under the mash tun to burn gas or coal. Now the direct fire heating equipment mainly burns gas. In foreign countries, the price of steam generators is extremely high, in order to reduce equipment purchases instead of direct fire heating.
About brewhouse system combination
It can be 2-vessel,3-vessel,4-vessel....and it can be customized.
10BBL brewhouse system details
Q1:What’s the payment you prefer?
A: Our standard payment terms are T/T with 30% deposits and balanced before shipment.
Q2: Do you have technical support after we purchased equipment?
A: We will arrange the professional technician to go to your factory and give the support to help you learn how to install and maintenance the machine or help you to fix the machine when it has problems.
Q3: How long time for installation?
A:It's according to your equipment order, it about 10days to 25 days.
Q4:What's your warranty policy?
A:We warranty all our equipment for up to 12 months. Your brewhouse and tanks are inspected and tested before they leave factory, but we also cover any and all issues you may have in the field.
If you need a quotation, please feel free contact with me.
