DGET-10BBL
DGET
8438400000
| Building a 10 bbl brewery in Berlin, Germany |
Small Batch Brewhouse manufacturing operations rely on a variety of vessels and tanks to involve in the manufacturing process. We build all sizes and styles of stainless steel brewing tanks that keep your storage and production process moving quickly and efficiently.

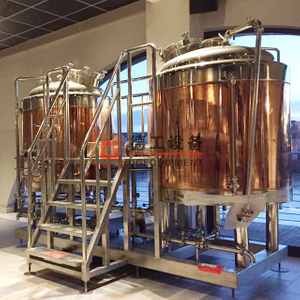

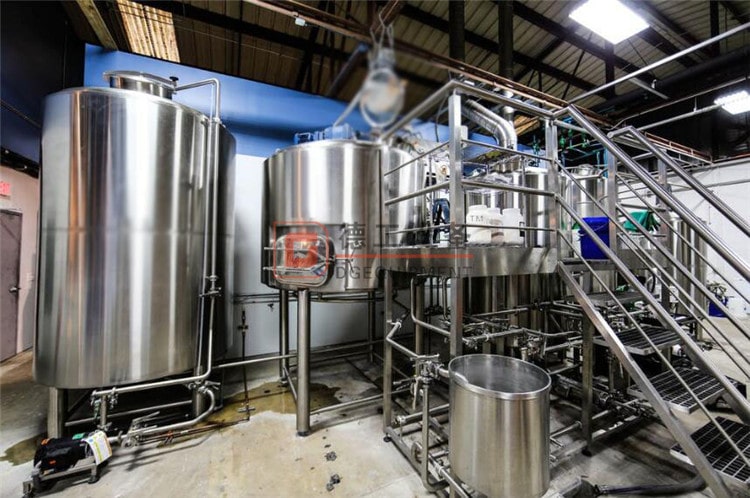

10bbl craft stainless steel brewhouse with wort grant
It is 10bbl brewhouse with 6x10bbl Fermenters and 5x10bbl Brite tanks.
All of the tanks connections, pressure gauges, pressure relief valves, thermo probes and other accessories are provided top quality and higher sanitary.Because we know it is very important for beer brewing.
Capacity: 5HL, 10HL, 15HL, 20HL Or 5BBL 7BBL 10BBL 15BBL or Larger,it can be customized
Material: SUS304/316L/red copper,
Heating method: Electric / steam / gas fired
Efficiency: 1-3 Brews per day
The traditional two vessel brewhouse configuration is mash tun / lauter tun + kettle / whirlpool combined, which is more used for brewers from North America for infusion brewing.
The brewhouse following exact building requirement and the exact beer gravity from different investors. Piping works for the brewhouse is easier but more professional to make sure there is less wasting and everything following customers brewing recipe requirement.
Making a brewery is longer term operation, our wish is helping you find the value behind our price, and develop the balance between income and investments.

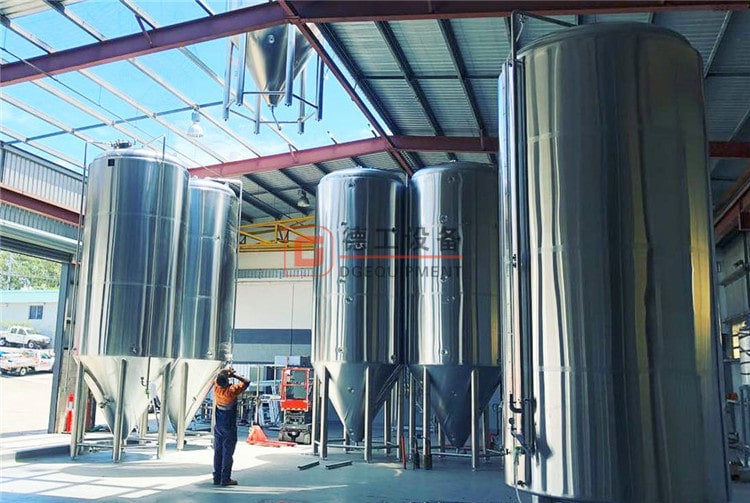

Double size fermenters be built
Capacity range: 5BBL-60BBL, or customized

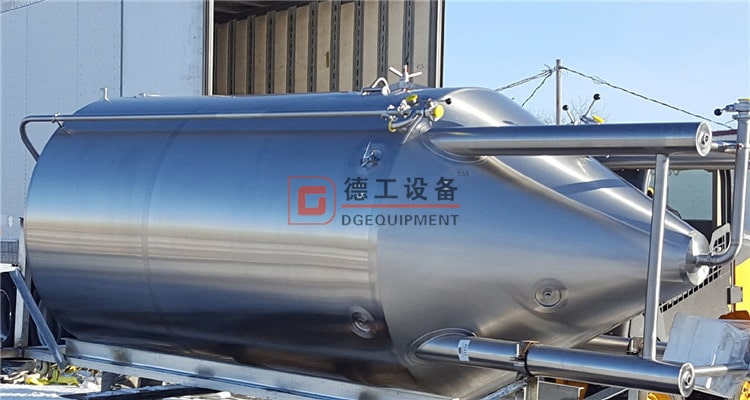

Fermentation vessels Details:
● Domed top and cone bottom cone, often cone angle: 60 degree
● With 25% head space for fermenation
● Wall thickness: 3-4mm, depending on tank size
● Pressure: 2-3 bar
● Dimple plate cooling jacket, cylinder and bottom cooled, Polyurethane insulation
● Four adjustable legs
● Pressure gauge with CIP arm
● Top: with CIP arm, breather valve
● Cylinder: Glycol inlet / oulet, side manway, PT100 / 200, sample valve
● Bottom: Bottom beer / yeast outlet, glycol inlet / outlet,
● Connection size depends on tank size, TC or DIN connection
Customized beer breweries tanks,like feremnter,BBTs
Brewery Features:
● Higher wort wort extract
● Lower energy cost and material consumption
● Well adjusted temp and water blending unit for better grain and water mixing
● Special designed steam jacket unit to increase steam using efficiency and avoid “water hammer” problem
● Special tank and piping construction to avoid the wort aeration problem and decrease the material lost
● Internal heater for separate kettle, working with cylinder and bottom jacket for better boiling effect.
● Possible to make boiling process under pressure, especially for brewery at higher altitude.
● Special designed steam condensing unit, with both steam condensing and water heating function
● Cellar tanks with good design updating for better cooling effect and accurate temp control
● Pre assembled cellar piping, with cat walks for operation on top or manifold or piping corridor
● Cooling unit for current use and well prepared for future expanding
● Automation system with curve indication and production record printing, with recipe storage function, clients can create new recipe as the exact production requirement.
| Contact us |
Ready to Get Started Building Your Dream brewery?
Contact Alice Today!
