We manufacture and supply brewhouse sizes from 50L to 20000L based on customer’s demand. Our brewery equipment is turn-key and consist of mill system, mash system, fermentation system, cooling system, cleaning system (CIP), control system and accessories. With brewery equipment you are able to produce outstanding full-bodied beers. Beginners will find it easy to brew with this fairly automated equipment.
| Thickness of material (mm): | |
|---|---|
| Insulation: | |
| Material: | |
| Manhole: | |
| Quantity: | |
By learning each brewers individual needs, we will work with you on first stage layout design, on just right lauter tun size, on piping design, on planning your expansion project in very first start to make your own micro brewhouse.
We design and produce a line of complete microbreweries to your specifications. Alternative brewhouse configurations are of 2-vessel, 3-vessel styles and customized. To guarantee breweries’ reliable performance, we use quality stainless steel, fittings, and various parts, depending on our good craftsmanship, deep experience and technology in brewing industry. Especially, we focus on your convenient running breweries, by learning your special specifications and realizing them on the brewing systems.
A set of brewhouse system with plate heat exchanger
| Features of brewhouse system and fermenting system |
What is a Brewhouse?
Brewhouses are comprised of several key pieces of brewing equipment. The mash tun, lauter tun, brew kettle, and whirlpool, in the skilled hand of the brew master, convert grain that has been milled through a specialty grain mill, into sweet liquid called “wort”. Wort is subsequently fermented and finished in specialized beer tanks called fermenters and brite tanks.

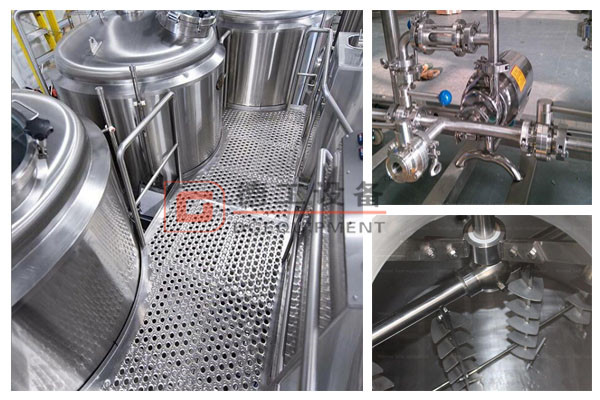

Platforms, wort pumps and raker
Plate heat exchanger and yeast addition tank
Exterior and interior of the control cabinet
Features of brewhouse:
- All tanks are made of food grade stainless steel 304.
- Adopting advanced world famous brand components in electric parts and operation parts.
- ABB motor for wort pump
- ABB/Siemens motor for raker and blender
- PLC automatic control method
- The structure of brewhouse: 2-vessel, 3-vessel or 4-vessel (Optional)
- Thickness: inner 3.0mm; out 2.0mm; jacket: 1.5mm
- Insulation: Polyurethane thickness: 100mm
- Working pressure: 1.5-2.0 bar Design pressure: 3.0 bar
- Inner surface treatment: welds grinded to Ra0.4µm without dead corner
- Outsourcing surface: weld polishing processing
- Heating method: steam; electric; direct fire (Optional)
- All welding are used argon gas protection welding. It will help to reduce the oxygenation and protect the joint. Our welders has many years experience in welding and they adopt the most popular welding way--TIG welding.
- TC connected CIP arm with 360° coverage spraying ball
- Filter board gap is less than 0.7mm
- Dished top and conical bottom
- Stainless steel top mounted manhole and door
- 4pcs completely SUS304 heavy duty legs with leveling
- Two stage plate heat exchanger
- Mash & Lauter tun: Brewing & sparging water blending port, VFD rake, with wort grant, mash hydrator, etc
- Kettle & Whirlpool: Dimpled steam jackets or direct burning heating, as well as electric immersion heating
- Hot water tank: Steam heating, direct burning or immersion electric heating.
- Heat exchanger: 2-step or 1 step, with fittings such as thermometers, venturi aeration unit, etc
- Cellars: Singe, double or multi-time brew size fermenters and BBT
- Cellar Control: Automatic Temp. control with solenoid valves
- Portable CIP cart: with an electric immersion Heating alkali tank and a sterilization tank, automatic Temp. control and a washing pump, etc
- Customized design of tanks, production flow, etc as per customers’ brewing process and beer features.
- Customized arrangement of brewhouses’ vessels, in rows, angle or square to fit the customers’ existing buildings.
- Dismountable basic frames with operators’ platform and pre-built piping for convenient site installation.
Fermentation tank
The task of brewer yeast in the primary fermentation stage is to convert part of the sugars in the wort into alcohol. At the set degree of fermentation the fermentation process is interrupted (not to be the full conversion of 100 % sugar).
This section includes all tanks designed to the primary fermentation of beer.

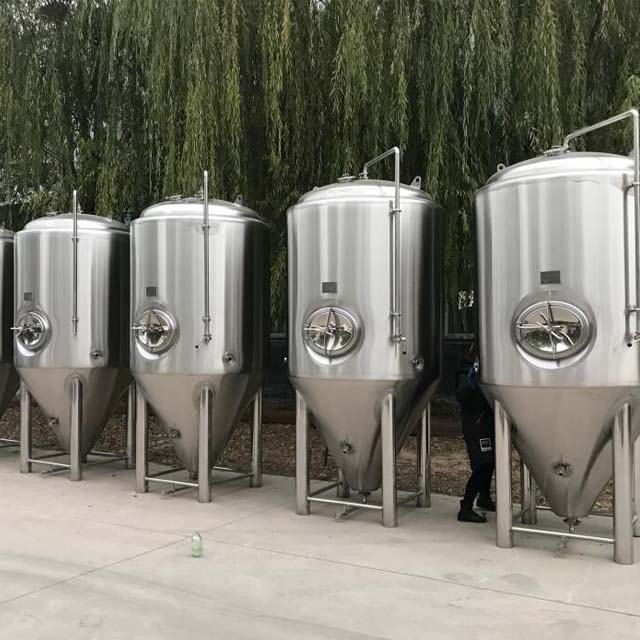

A row of fermentation tank
Bright side manhole
Pressure gauge,side manhole ,drain outlet and legs
Description | Dimple Jacketed Beer Fermentation tank |
Capacity | 2000L |
Material | Stainless SUS 304 |
Quality control | Pressure testing |
Main workmanship | Pure argon gas welding; professional machine polish for inside and outside . |
Product characteristic | 1. Double jacketed conical fermentation tanks with dimple cooling jacket |
2. Technology :German method | |
3. Finishing: mirror polishing ≤ 0.6um | |
4. Interior thickness:3 mm;Exterior thickness:2 mm;jacket:1.5mm | |
5. Insulation: Polyurethane 100mm | |
6. Pipeline connection : full stainless steel pipeline | |
7. Electric elements : With high quality Chinese famous brand or the international famous brand also is avalilable . | |
8. Matched fittings: the butterfly valves , the manway door , sight glass , CIP cleaning arm and rotatory balls , pressure gauge and temperature probe , adjustable feet | |
9.Customized | |
A) Capacity : from 500L -10,000L | |
B) Cone degree:60; | |
C) The position of manway door , on cylinder or dish head; | |
D) Cooling jacket can be dimple jacket; | |
E) Outter jacket finish can be mirror finish , brushed stainless steel finish | |
F) The type of the manway door can be flange type or the nor type . | |
G) The dish head can be signal or double |
