| Thickness of material (mm): | |
|---|---|
| Insulation: | |
| Material: | |
| fermentation tank Manhole: | |
| Quantity: | |
DGET-500L
DGET
8438400000
Micro Brewery can be a good start of your own brewery business with the size from 500L to 2000L. The brewhouse comprising of 2 or more vessels is mounted on a stainless steel skid or on the floor with piping, pumps, platform, etc, which are pre-built for convenient installation on site.
Especially, we focus on your convenient running breweries, by learning your special specifications and realizing them on the brewing systems.

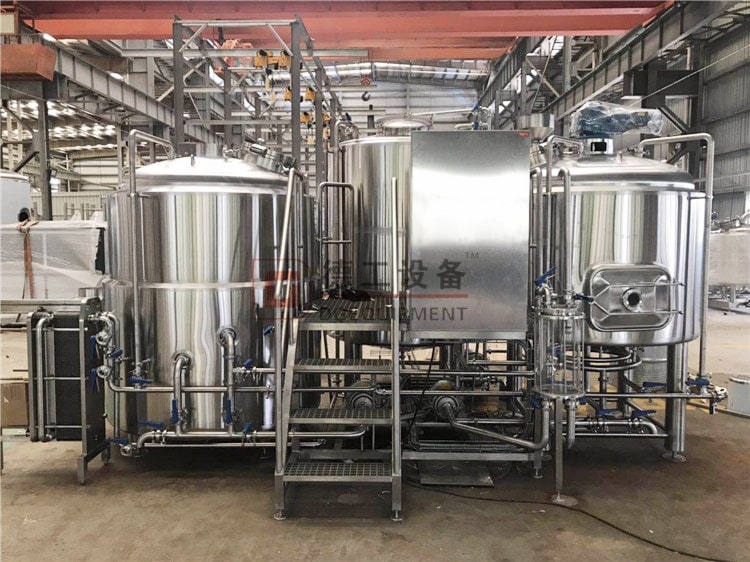

500L Microbrewery equipment
500L brewery equipment for craft beer | |
Heating method | Electric/steam/direct fire heating |
Structure | 2-vessel, mash/lauter tank & kettle/whirlpool tank Combi-vessel |
Usage | Pub/hotel/restaurant beer brewery equipment Mini beer brewery equipment |
Material of the board | High-quality stainless steel |
Interior | SUS304, thickness 3.0mm |
Exterior | SUS304, thickness 3.0mm |
Insulation | Polyurethane, thickness 80mm |
Cleaning | CIP arm, 360° spray ball |
Temperature | High accuracy temperature sensor, PT100 |
Cooling | High efficiency plate heat exchanger |
Control | Semi-auto control cabinet |
Wort ventilate | Sanitary wort aeration device with sight glass |
Milling V-wire false bottom With lauter rakes Side spent grain manway Stainless steel top manway With tangent whirlpool inlet Efficient centrifugal wort pump Heating: dimple steam jacket/ stainless steel electric heating elements Sanitary stainless steel butterfly valves and pipeline connection Stainless steel heavy duty supporting legs Argon gas protection welding, well polishing | |

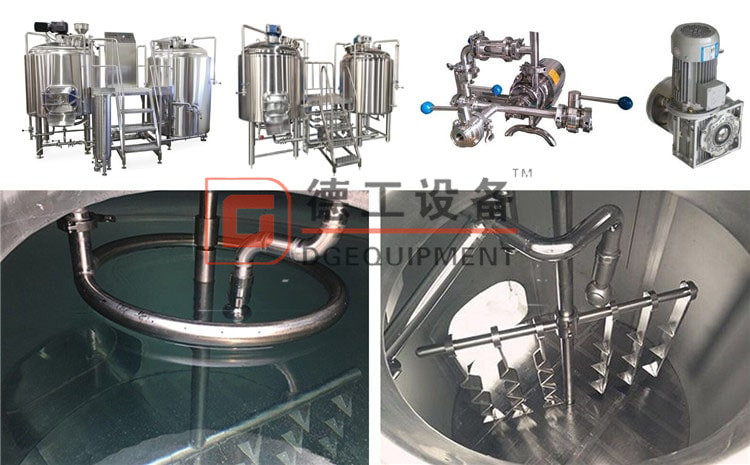

Pump,motor and raker
Two stage plate heat exchanger and yeast add tank
| Fermentation tank description: |
Description | Jacketed Pressure Conical Beer Fermentation tank |
Capacity | 500L |
Material | Stainless SUS 304 |
Main workmanship | Pure argon gas welding; professional machine polish for inside and outside . |
Product characteristic | 1. Double jacketed conical fermentation tanks with dimple cooling jacket |
2. Technology :German method | |
3. Finishing: mirror polishing ≤ 0.6um | |
4. Interior thickness:3 mm; Exterior thickness:2 mm; Jacket:1.5mm | |
5. Insulation: Polyurethane 80mm | |
6. Pipeline connection : full stainless steel pipeline | |
7. Matched fittings: the butterfly valves , the manway door , sight glass , CIP cleaning arm and rotatory balls , pressure gauge and temperature probe , adjustable feet | |
8.Customized | |
A) Capacity : from 500L -10,000L | |
B) Cone degree:60; | |
C) The position of manway door , on cylinder or dish head; | |
D) Cooling jacket can be dimple jacket; | |
E) Outter jacket finish can be mirror finish , brushed stainless steel finish | |
F) The type of the manway door can be flange type or the nor type . | |
G) The dish head can be signal or double |
Fermentation tank with side manhole
(Side manholes are also available)
| Our company: |
Whether you are a start-up, a well-established craft brewery or a market leading brand – you can benefit from DGET in the brewery industry. Our catalog of high-quality equipment ranges from complete systems to process units to components.

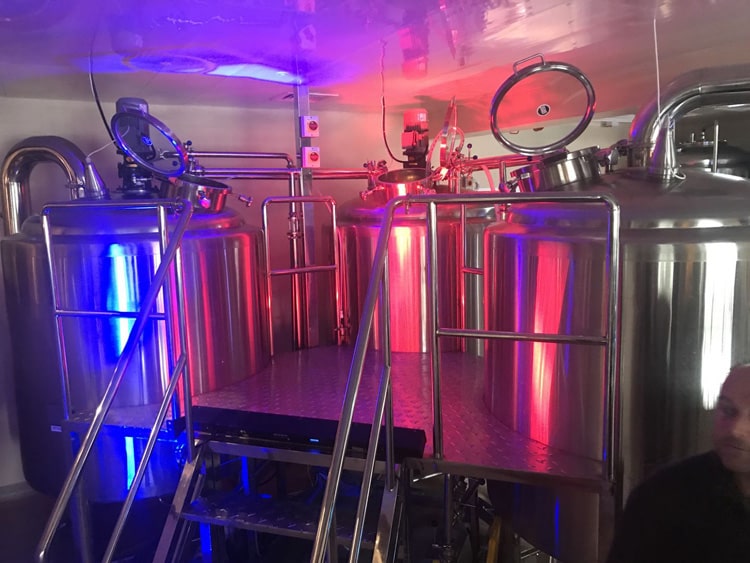

Client's Brewery Project
Brewing ingredients：water;malt;yeast and hops

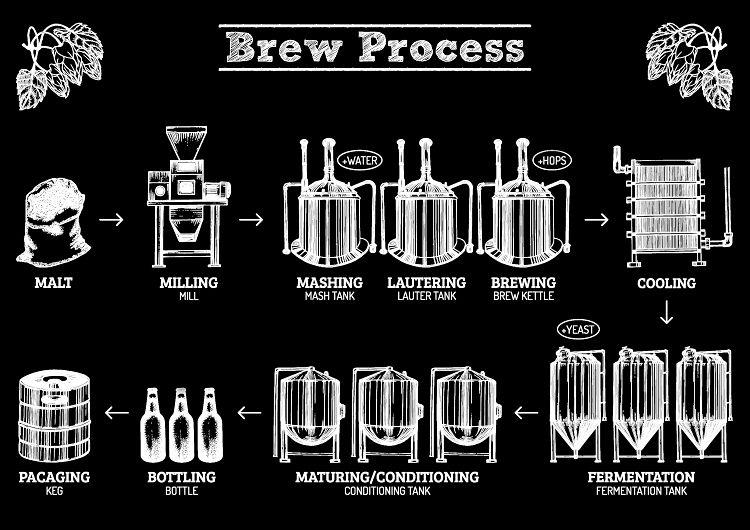

Brew process:Milling(Miller)--Mashing(Mash tank)--Lautering(Lauter tank)--brewing(Brew kettle)--Cooling--Fermentation(Fermentation tank)--Maturing/Conditioning(Conditioning tank)--Bottling--Packing
| Packaging & Delivery |
Packaging Details: standard wooden package
Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.
Ready to ship
| Contact information: |
If you are interested in our craft beer equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you.
