DGET-2000L
DGET
8438400000
1. Highly competitive price, more than 10 years production and manufacturing experience.
2. CE ,PED, ISO certification.
3. Strictly quality control, meet the European quality standard.
4. Accept customized service, professional engineers will provide design solutions for your brewery project.
5.Easy to operate: Include all the tanks to brew by the control cabinet.
6.Compact: provide the layout drawing according to your workshop.
7.The brewery equipment can brew all kinds of beer, such as Lager,Pale ale,black beer,IPA and Stout beer etc.
8.Wonderful Technology:Fermentation-Double jacket conical fermenter with dimple-plate cooling jacket, perfect welding by professional welders.
2000l Brewery is really a commercial size that requires multi batches a day to maximize its utilization.
We have some designes for reference,they has the features，advantages and disadvantages.
Optimal choice to get continuous running is 4 vessels, which is 2000L mash tun, 2000L lauter tun,2000L boiling tun and 2000L whirlpool tun plus 4000L or bigger hot water tank to offer enough brewing hot water.It can be save time and get the fastest brewing process.
However most common design for 2000L brewhouse may be 3 Vessels.
It is mash/lauter tun, boiling tun and whirlpool tun.
Another is mash tun, lauter tun, boiling/whirlpool tun
You can chose the suitable one according to your brewing technology.
If the mash and lauter tank seperate,it will need too much time transfer grain from Mash to Lauter tank.
Another problem is cleaning the pump and pipe after each batch.
Custom options are available for all of our commercial brewing systems. If you have something specific in mind, let us know. We are easy to get ahold of and would be more than happ to discuss options.
| 2000L BREWERY | ||
| System | Model | Specification |
| Mill system | 300kg-500kg/h mill machine | Material: stainless steel Roller Material: alloy This machine can remove the iron and dust automatically |
| Brewhouse system | 2000L 3-vessel or 2000L 2-vessel +hot water tank | Main equipment: mash/lauter tun+boiling tun+whirlpool tun; mash/lauter tun+boiling/whirlpool tun+hot water tank Material: stainless stee or red copper Heating method: steam/electric/direct fire heating Inner: TH=3.0mm, outer: TH=2.0mm The inner surface polishing to Ra 0.4um Tangential whirlpool inlet Equipped with hops back 100% stainless steel two stage plate heat exchanger Include: raker, thermometer, operation plateform, moter, pump and other accessories |
| Fermentation system | 2000L or 4000L fermentation tank & bright beer tank. You decide quantity | Inner material SUS304, thickness: 3.0mm External Jacket material: SUS304, thickness: 2.0mm The inner surface polishing to Ra 0.4um Cone bottom: 60° Design pressure 3 bar; Working pressure 1.5bar Manhole: top manhole or side manhole Cooling way: dimple jacket Equip with carbonated port, dry hops port,sample valve, mechanical regulator valve, pressure gauge, racking arm |
| Cooling system | Glycol water tank & chiller | Inner material SUS304, thickness: 3.0mm External Jacket material: SUS304, thickness: 2.0mm The inner surface polishing to Ra0.4um Pump is Stainless Steel Model Cooling media: glycol water Includes pipeline, valve, and all other accessories |
| Cleaning system | 200L CIP | Main equipment: alkali tank, acid tank Equip with control cabinet Centrifugal pump |
| Control system | PID or PLC | Material: stainless steel Component has CE,ISO certificate Optional: UL Certificate, Siemens component, Omron component |

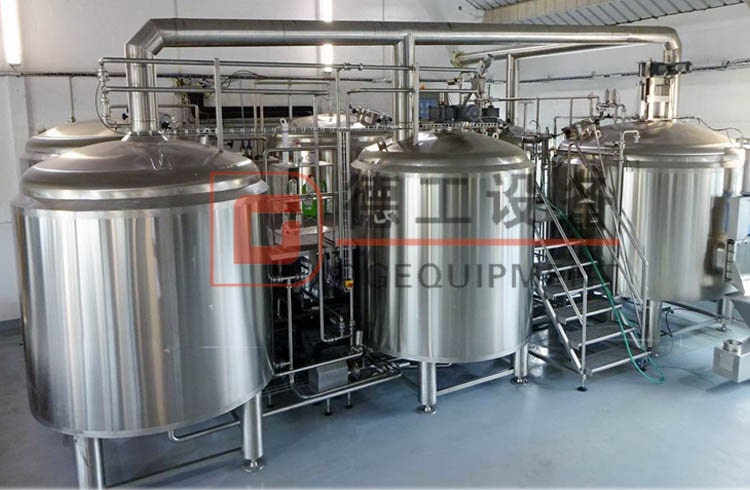

3-vessel: mash/lauter tun+boiling tun+whirlpool tun
1. Highly competitive price, more than 10 years production and manufacturing experience.
2. CE ,PED, ISO certification.
3. Strictly quality control, meet the European quality standard.
4. Accept customized service, professional engineers will provide design solutions for your brewery project.
5.Easy to operate: Include all the tanks to brew by the control cabinet.
6.Compact: provide the layout drawing according to your workshop.
7.The brewery equipment can brew all kinds of beer, such as Lager,Pale ale,black beer,IPA and Stout beer etc.
8.Wonderful Technology:Fermentation-Double jacket conical fermenter with dimple-plate cooling jacket, perfect welding by professional welders.
2000l Brewery is really a commercial size that requires multi batches a day to maximize its utilization.
We have some designes for reference,they has the features，advantages and disadvantages.
Optimal choice to get continuous running is 4 vessels, which is 2000L mash tun, 2000L lauter tun,2000L boiling tun and 2000L whirlpool tun plus 4000L or bigger hot water tank to offer enough brewing hot water.It can be save time and get the fastest brewing process.
However most common design for 2000L brewhouse may be 3 Vessels.
It is mash/lauter tun, boiling tun and whirlpool tun.
Another is mash tun, lauter tun, boiling/whirlpool tun
You can chose the suitable one according to your brewing technology.
If the mash and lauter tank seperate,it will need too much time transfer grain from Mash to Lauter tank.
Another problem is cleaning the pump and pipe after each batch.
Custom options are available for all of our commercial brewing systems. If you have something specific in mind, let us know. We are easy to get ahold of and would be more than happ to discuss options.
| 2000L BREWERY | ||
| System | Model | Specification |
| Mill system | 300kg-500kg/h mill machine | Material: stainless steel Roller Material: alloy This machine can remove the iron and dust automatically |
| Brewhouse system | 2000L 3-vessel or 2000L 2-vessel +hot water tank | Main equipment: mash/lauter tun+boiling tun+whirlpool tun; mash/lauter tun+boiling/whirlpool tun+hot water tank Material: stainless stee or red copper Heating method: steam/electric/direct fire heating Inner: TH=3.0mm, outer: TH=2.0mm The inner surface polishing to Ra 0.4um Tangential whirlpool inlet Equipped with hops back 100% stainless steel two stage plate heat exchanger Include: raker, thermometer, operation plateform, moter, pump and other accessories |
| Fermentation system | 2000L or 4000L fermentation tank & bright beer tank. You decide quantity | Inner material SUS304, thickness: 3.0mm External Jacket material: SUS304, thickness: 2.0mm The inner surface polishing to Ra 0.4um Cone bottom: 60° Design pressure 3 bar; Working pressure 1.5bar Manhole: top manhole or side manhole Cooling way: dimple jacket Equip with carbonated port, dry hops port,sample valve, mechanical regulator valve, pressure gauge, racking arm |
| Cooling system | Glycol water tank & chiller | Inner material SUS304, thickness: 3.0mm External Jacket material: SUS304, thickness: 2.0mm The inner surface polishing to Ra0.4um Pump is Stainless Steel Model Cooling media: glycol water Includes pipeline, valve, and all other accessories |
| Cleaning system | 200L CIP | Main equipment: alkali tank, acid tank Equip with control cabinet Centrifugal pump |
| Control system | PID or PLC | Material: stainless steel Component has CE,ISO certificate Optional: UL Certificate, Siemens component, Omron component |
3-vessel: mash/lauter tun+boiling tun+whirlpool tun
