DEGONG 5BBL
DEGONG
8438400000
Check out our Brewery to get started building your turnkey brewing system today. We'll help you design your brewery around the following components:
Grain Handling
Heating System - Electric or Steam
Brew House Tanks
Brew House Controls
Pumps
Glycol & Plate Chillers
Cellar Tanks
Cellar Controls
Turnkey 5bbl brewhouse systems
What does turnkey mean?
In the brewing industry, turnkey typically means purchasing all the equipment from one place / vendor as an integrated system A turnkey system would include: Tanks Controls Heating systems Cooling systems Brewhouse pumps Plumbing Milling equipment Keg washing and filling equipment
Why turnkey?
Mismatched parts will reduce efficiencies
Mill undersized for mash tun = lost time milling
Boiler or heating elements undersized for brew house = long or insufficient heating
Pumps undersized = long transfer times, overworking pumps
Plate chiller undersized = insufficient chilling(won't hit pitching temp)
Glycol chiller undersized for cellar = has to work harder to maintain temps
Equipment that is properly integrated and matched will function as one cohesive system without bottlenecks

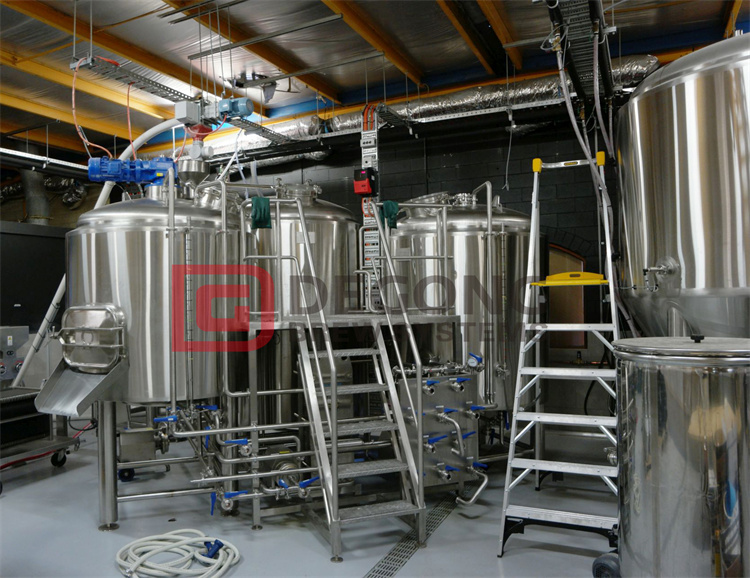

3vessel brewhouse with all fittings
Hot Liquor Tanks
Tri-clamp ports for electric heating elements, or double-wall jacketed for steam systems
Insulated & non-insulated, standard or slim models available
A tangential inlet port, used to recirculate the water for consistent water temperatures throughout the tank, come standard on our turnkey systems
Available with a raised HERMS coil
Standard site glass & CIP ports
Specified for your brew house, considering kettle size, double batching, and cleaning water needs
304 SS with all sanitary fittings
Mash Tuns
Available with RIMS tube or HERMS coils to maintain a consistent mash temp
Insulated & non-insulated options
Perforated, wedge-wire, and split false bottoms available
Available with a rake / plow on sizes larger than 5bbl
Standard CIP port and circulation ports (double tri-clamps)
Optional grist hydrator to ensure a good mash and eliminate dough balls
Optional wort grant (standard or auto, stainless or glass) available
304 SS with all sanitary fittings
Brew Kettles
Insulated & non-insulated options
Standard tangential whirlpool, with optional trub dam on larger vessels
Dedicated whirlpool and drain ports
Standard site glass & CIP ports
Condensate stack adapter and condenser available
304 SS with all sanitary fittings
false bottom rakers in the lauter tun
Platforms & Skids
100% Stainless Steel
Sized to match the brewing tanks in your system
Rear brackets for mounting the control panel
Casters available for easy installation
Frame mounted pumps & wort grant
Hard piped & 100% sanitary fitting
Left & Right orientation available
