heating method: | |
---|---|
Availability: | |
Quantity: | |
DEGONG-10HL
DEGONG
8438400000
How to select brewing equipment
We researched brewing equipment before placing an order. There are so many factors to consider such as size, number of vessels, type of heat source, as well as cooling the wort.
Here's a summary of the main issues that were considered and our approach to a solution.
Brewing vessels plate heat exchanger 1000liters
Vessels needed for brewing
Commercial brewing requires several different types of big vessels made of stainless steel. First, the water gets heated in a dedicated vessel called the Hot Liquor Tank (“liquor” is referring to the technical term for any liquid used in a process of some kind, not the liquid that gets you drunk). The hot water is then transferred to a vessel known as the Mash/Lauter Tun where it saturates milled grain to extract the delicious sugars and flavors.
After a little while, the carbohydrate-rich water is transferred to the Boil Kettle right next to the mash tun where it is brought to boiling temperature by steam, or electric elements. Hops (and other special ingredients depending on the recipe) are added during the boil. Once that is completed, the boil kettle becomes a Whirlpool, forcing the water into a vortex that separates it from the larger particles in the solution (like large clusters of hops).

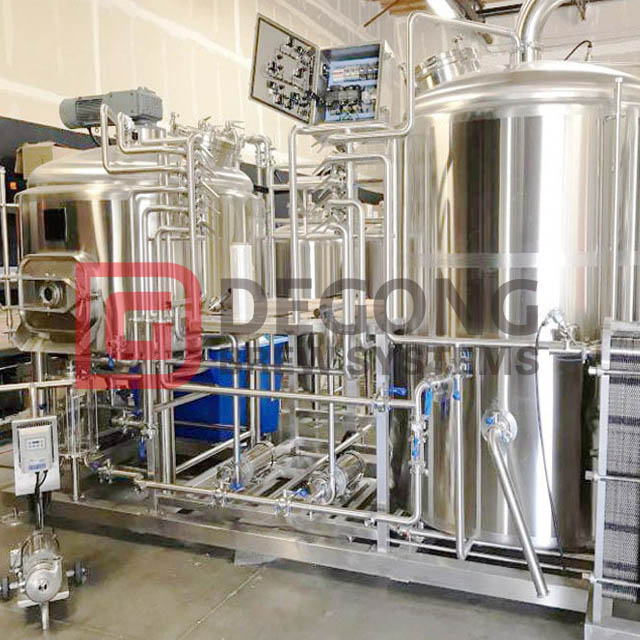

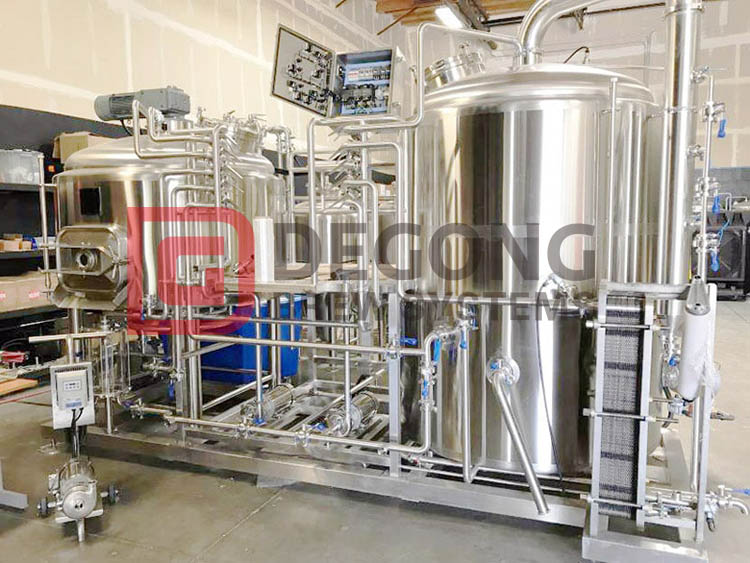

Brewhouse system Glass manway for checking process
The Boil Kettle/Whirlpool and the Mash/Lauter Tun are usually right next to each other with a platform and stairs between them so the brewer can visually monitor the process and add ingredients. Collectively, they’re referred to as the Brewhouse. As breweries expand (reach the limit of beer that can be produced from the brewhouse in a 24 hour period), they will often add a third vessel for a dedicated whirlpool (and then a fourth vessel for dedicated lauter). This increases the churn rate and increases labor efficiency so more beer can be produced each day.
The hot liquid is then cooled and transferred to a Fermenting Vessel where yeast is added and the magic of transforming sugars to alcohol begins for several days to a few weeks. Then the fermentation process is stopped and beer is transferred to a Brite Tank where it is cooled even further to allow remaining particles in the beer to fall to the bottom of the tank. Once finished, the beer can be kegged or bottled/canned for serving.
FVs brewery equipment
Cylindrical-conical tanks (CCT) fermnetation tanks 1000-2000l
Complete set (main units)
№ | Indicator | Quantity |
01. | Malt mill | 1 |
02. | Mash tun | 1 |
03. | Filter tun | 1 |
04. | Wort aeration-whirlpool | 1 |
05. | Steam generator | 1 |
06. | Electric control cabinet based on Siemens | 1 |
07. | Touch control panel | 1 |
08. | Platform | 1 |
09. | Dual-zone plate heat exchanger | 1 |
10. | CIP station (Cleanning in Place) | 1 |
11. | Cylindrical-conical tanks (CCT) | 6 |
12. | Bright beer tank(BBT) | 2 |
13. | Pumps (breweries, mobile, CIP) | 5 |
14. | Refrigerating unit | 1 |
15. | Set of hoses, laboratory kit, and repair kit | 1 |
