| Thickness of material (mm): | |
|---|---|
| heating method: | |
| Quantity: | |
The compact Brewhouse section consists of two universal apparatus: Mash-Lauter tun (M-L) and Kettle-Whirlpool tun (K-W). Both devices are able for heating, which gives a wide range of opportunities for the implementation of creative ideas of brewers. Small dimensions and well-thought-out piping system of the brewhouses makes the workflow simple and convenient.
Leave a request and our responsible manager will contact you to discuss the cooperation possibilities.
| Model | DEGONG 500L | |||
| Capacity | 500L/Batch | |||
| Material | 304 Stainless Steel | |||
| Combination method | Mash/lauter tun, kettle/whirlpool tank | |||
| Application | Restaurants, bars, hotels, brewery | |||
| Heating way | Electric heating/steam heating | |||
| Voltage | AC380/220V，50/60HZ | |||
| Out size | Ø 1160*2500mm | |||
| Floor area | 10m2 | |||
| Degree of automation | Semi-automatic/Fully automatic | |||

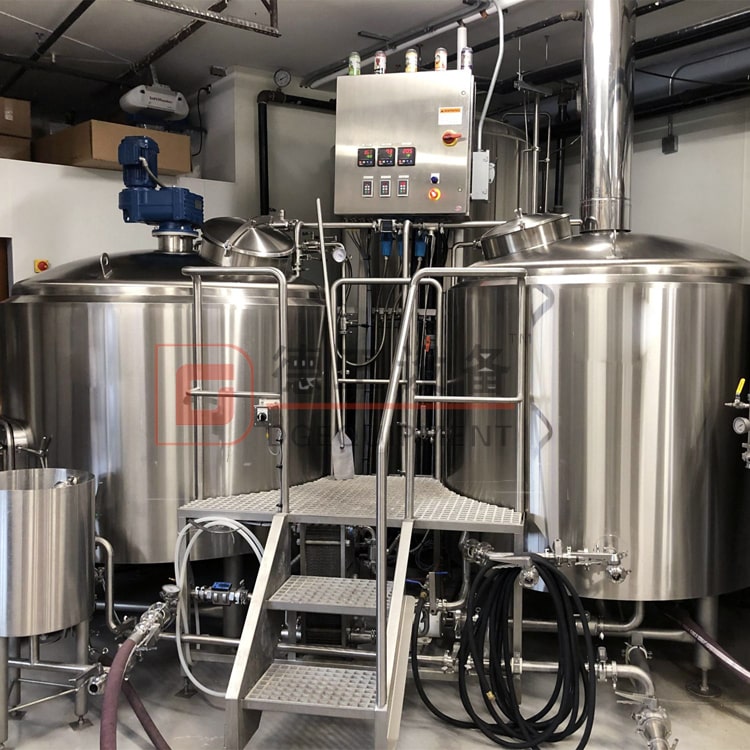

2vessel brewhouse system with control panel
500L per batch beer brewing equipment

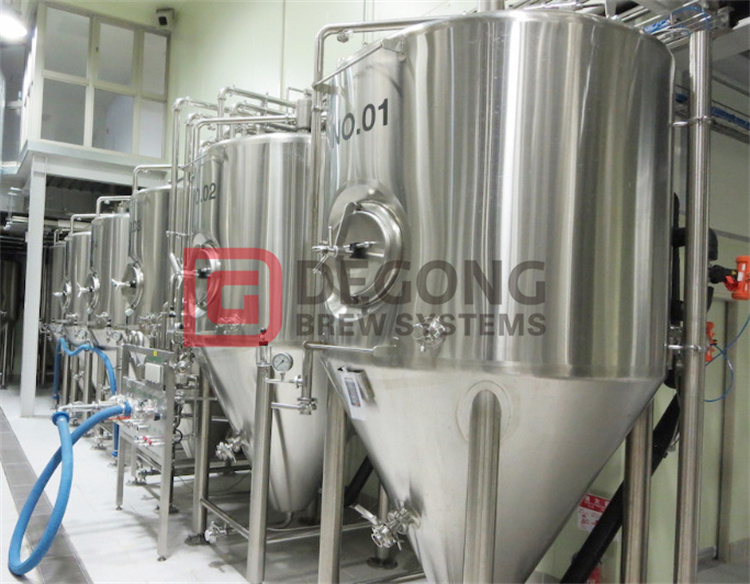

fermentation tanks for fermenting wort
| Milling System | Mill machine | Stainless steel | ||
| Grist case | Stainless steel | |||
| Flexible conveyor | Outer PPR or Stainless steel | |||
| Brewhouse System | Mash tun | Inner:3mm; outer:2mm-Motor agitation-Steam jackets/Electric elements/Fire direct heating | ||
| Lauter tun | Inner:3mm; outer:2mm-Rack knife system False bottom filter Wort Grant | |||
| Brew Kettle | Inner:3mm; outer:2mm-Steam jackets/Electric elements/Fire direct heating | |||
| Whirlpool Tank | Inner:3mm; outer:2mm-Side tangent whirlpool inlet | |||
| Hot water tank | Inner:3mm; outer:2mm-Steam jackets/Electric elements/Fire direct heating | |||
| Accessories | Mash pump; Heat-exchange plate; Hop back system; Brewhouse Pipes; | |||
| Fermentation System | Fermentation tank | Pressure:3 Bar-Inner:3mm; outer:2mm; with insulation Cooling jackets | ||
| Accessories | Yeast Saving Tank;-Dry hop port,-pressuve valve,-safety valve,-hop gun | |||
| Cooling System | Glycol water tank | Inner:3mm; outer:2mm | ||
| Cold water tank | Inner:3mm; outer:2mm | |||
| Accessories | Chiller; Glycol water pump; Pipes & Valves | |||
| CIP System | Acid tank, Caustic tank, Trolley | Pump; Pipes & Valves Accessories of the CIP System | ||
| Control System | Automatic/Semi-auto | |||
| Filtering System | Candle type diatomite filter/Membrane filter/Bag filter | |||
| Bright beer tank | Double-layer with insulation | |||
| Filling System | Glass bottle line | Capacity:1000BPH Washing/Filling heads/Capping | ||
| Canning line | Capacity:1000-1500 CPH-Filling heads:12; Capping heads:1 | |||
| Keg system | Keg filling machine; Keg washing machine; Keg washing and filling unity machine | |||
The compact Brewhouse section consists of two universal apparatus: Mash-Lauter tun (M-L) and Kettle-Whirlpool tun (K-W). Both devices are able for heating, which gives a wide range of opportunities for the implementation of creative ideas of brewers. Small dimensions and well-thought-out piping system of the brewhouses makes the workflow simple and convenient.
Leave a request and our responsible manager will contact you to discuss the cooperation possibilities.
| Model | DEGONG 500L | |||
| Capacity | 500L/Batch | |||
| Material | 304 Stainless Steel | |||
| Combination method | Mash/lauter tun, kettle/whirlpool tank | |||
| Application | Restaurants, bars, hotels, brewery | |||
| Heating way | Electric heating/steam heating | |||
| Voltage | AC380/220V，50/60HZ | |||
| Out size | Ø 1160*2500mm | |||
| Floor area | 10m2 | |||
| Degree of automation | Semi-automatic/Fully automatic | |||
2vessel brewhouse system with control panel
500L per batch beer brewing equipment
fermentation tanks for fermenting wort
| Milling System | Mill machine | Stainless steel | ||
| Grist case | Stainless steel | |||
| Flexible conveyor | Outer PPR or Stainless steel | |||
| Brewhouse System | Mash tun | Inner:3mm; outer:2mm-Motor agitation-Steam jackets/Electric elements/Fire direct heating | ||
| Lauter tun | Inner:3mm; outer:2mm-Rack knife system False bottom filter Wort Grant | |||
| Brew Kettle | Inner:3mm; outer:2mm-Steam jackets/Electric elements/Fire direct heating | |||
| Whirlpool Tank | Inner:3mm; outer:2mm-Side tangent whirlpool inlet | |||
| Hot water tank | Inner:3mm; outer:2mm-Steam jackets/Electric elements/Fire direct heating | |||
| Accessories | Mash pump; Heat-exchange plate; Hop back system; Brewhouse Pipes; | |||
| Fermentation System | Fermentation tank | Pressure:3 Bar-Inner:3mm; outer:2mm; with insulation Cooling jackets | ||
| Accessories | Yeast Saving Tank;-Dry hop port,-pressuve valve,-safety valve,-hop gun | |||
| Cooling System | Glycol water tank | Inner:3mm; outer:2mm | ||
| Cold water tank | Inner:3mm; outer:2mm | |||
| Accessories | Chiller; Glycol water pump; Pipes & Valves | |||
| CIP System | Acid tank, Caustic tank, Trolley | Pump; Pipes & Valves Accessories of the CIP System | ||
| Control System | Automatic/Semi-auto | |||
| Filtering System | Candle type diatomite filter/Membrane filter/Bag filter | |||
| Bright beer tank | Double-layer with insulation | |||
| Filling System | Glass bottle line | Capacity:1000BPH Washing/Filling heads/Capping | ||
| Canning line | Capacity:1000-1500 CPH-Filling heads:12; Capping heads:1 | |||
| Keg system | Keg filling machine; Keg washing machine; Keg washing and filling unity machine | |||
