| Thickness of material (mm): | |
|---|---|
| Manhole: | |
| Fermentation tank coolinig: | |
| Packing: | |
| Insulation: | |
| Quantity: | |
DGET-20BBL
DGET
8438400000
We offers flexible Brewhouse / Brew Kettle designs to ensure that optimal efficiency is achieved while including all requirements that a customer may have (such as spacing, tank distribution, etc.) Producing a high quality beer requires consistent brews and although experience plays a crucial rolein the process, the limiting factor is the quality of the Brewhouse being used. Having a high quality Brewhouse will ensure that you have the necessary tools to keep the same flavor profile with every batch.
Combination:(for 20BBL)
3-vessel:mash/lauter tun+boiling tun+whirlpool tun
mash tun+lauter tun+boiling/whirlpool tun
4-vessel:mash tun+lauter tun+boiling tun+whirlpool tun
3-vessel is more suitable for those with limited budget, while 4-vessel has high saccharification efficiency and high yield.
And heating method can be steam/electric/direct fire heating.
The three heating methods characteristics:
Steam: Dimple plate jacket with inlet/outlet fittings for Steam heat transfer;
Electric: Use electric heaters in jacket to heat the medium in the jacket;
Direct fire: Use gas burner at bottom to heat tank directly.
If you choose steam heating,you need a boiler. There are gas/diesel/electric boiler. Customers can choose according to their needs.

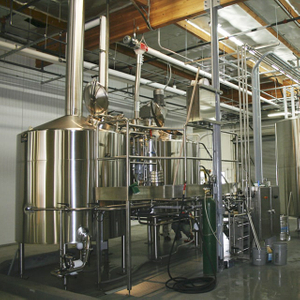

craft brewery system

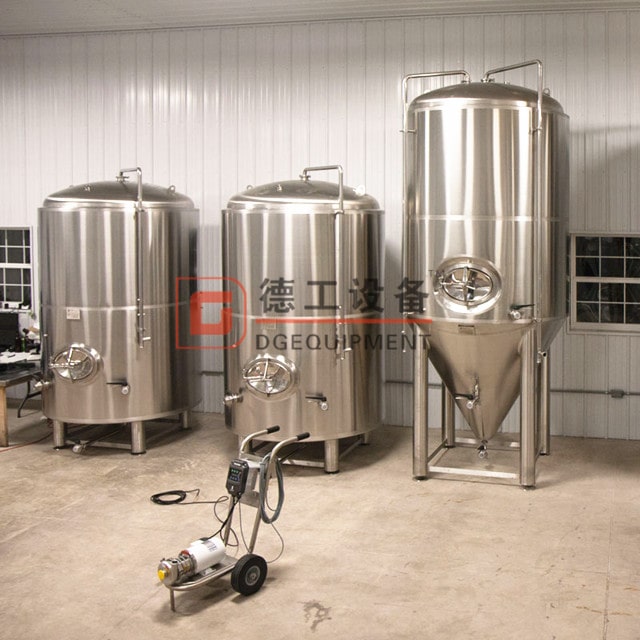

We offers a wide array of fermenters(fermentation) and brite tanks(maturation) tanks that are designed accordingly to our customers’ specifications and their needs. Our fermenter and brite tanks come in three different generalized builds (customizable tanks are also available): single wall, un-jacketed and jacketed. All of our tanks can be pressurized (unless otherwise requested) and the fermenters have an added bonus of functioning as both a fermenter and BBT tank.
Material:SUS316L or SUS304
Interior Shell: 2B/mirror plate; TH=3mm
Exterior Shell:2B/mirror/brushed plate; TH=2mm
80 mm polyurethane for insulation
Dish head /bottom,cylinder
Top or side manway
With solenoid valve or mechanical regulation valve, regulating valve,sample valve,temperature sensor, adjustable leg,rotating beer mouth, discharging outlet,coolant inlet and outlet, CIP inlet and outlet,wort inlet,cleaning ball, pressure gauge.

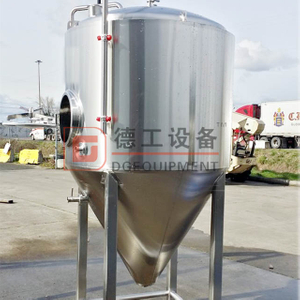

Beer fermenter feature
All the tanks insulation use argon arc welding and inner tank will do pickling and passivation or mirror polishing
Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
All the steam heating beer brewery tank will do water and pressure test when finishing. Pressure test is 2-4bar
Dimple jackets are standard on insulated vessels, providing greater cooling efficiency and added vessel integrity
All fermentation vessels feature jackets on the cone for greater cooling efficiency
Fermentation vessels have half batch capabilities
brewery equipment pipelines
If you are interested in DEGONG brewery equipment, get in touch with me freely.
