1000L Beer Making Machine Micro Brewing Equipment Complete Home Brewing System

1000L brewery equipment is a very good choice for commercial beer brewery. 1000L brewery equipment doesn’t need big place, doesn’t need big filling line, but 1000L brewery equipment can produce 2000L beer per day at most. This is very enough for craft beer business.

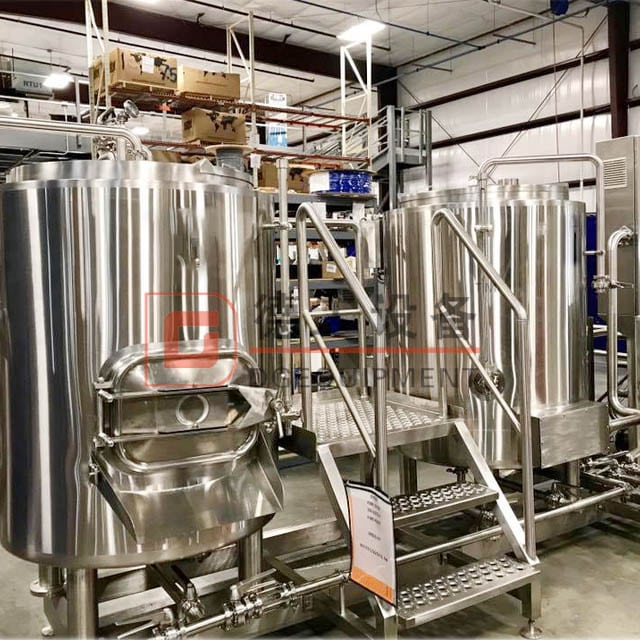

When it comes to 1000L, you have more choices for brewhouse, you can use classic 2 vessels brewhouse, you can use modern and popular 3 vessels brewhouse, you can also use high-efficiency 4 vessels brewhouse, which can help you brew 3 batches per day.
1000L brewery equipment can also adopt a cold water tank and double layers head for fermenter. This helps you save 30% energy. This is huge money to a brewery that brew everyday.

Thickness of material (mm):	inner 3.0mm outer 2.0mm
Insulation:	polyurethane
Packing:	wooden box
Manhole:	top manhole side manhole
Fermentation tank coolinig:	glycol tank
Availability:

Quantity:



Inquire Add to Basket

Model:
DGET-1000L
Brand:
DGET
Code:
8438400000

Product Description

1000L beer brewery equipment
system	model	Specification
mill system	mill machine	Double rollers malt miller machine
mash system	1000L 2-vessel +hot water tank 1000L 3-vessel	Main equipment: mash tun, lauter tun, boiling/whirlpool tank or mash/lauter tun+boiling/whirlpool tun +hot water tank Raw material SUS304/316, thickness: 3.0mm The inner surface polishing precision: Ra0.4um Heating way: Steam heating, electric heating, direct fire heating Mirror polishing Mechanical agitation: Stirring moter adopts variable frequency stepless speed control, improve wort preparation time Tangential whirlpool inlet Equipped with hops back
fermentation system	1000L or 2000L Fermentation Tank & Bright Beer Tank. You decide quantity	Inner tank adopts international standard food grade 304 All welding us double-sided welding argon gas protection, double-sided forming can improve the weld ability if under pressure. Inner layer material SUS304, thickness: 3.0mm External Jacket material: SUS304, thickness: 2.0mm The inner surface polishing precision: Ra0.4um Cone bottom: 60° Design pressure 0.3MPa; Working pressure 0.15Mpa Manhole: top or side manhole Cooling way: Dimple Jacket
Cooling system	glycol tank &chiller	Inner layer material SUS304, thickness: 3.0mm External Jacket material: SUS304, thickness: 2.0mm The inner surface polishing precision: Ra0.4um Pump is Stainless Steel Model Cooling media: glycol water or alcohol water Includes pipeline, valve, and all other accessories Glycol tank can be 2000L if you choose cold water tank
CIP system	100L CIP	Main equipment: alkali tank, acid tank Equip with control cabinet Centrifugal pump
Control system	PLC cabinet	Material: Stainless Steel Component has CE certificate Optional: UL Certificate, Siemens component, Omron component
