DEGT-10BBL
DEGT
8438400000

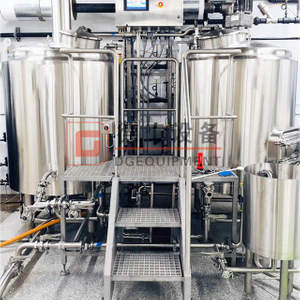

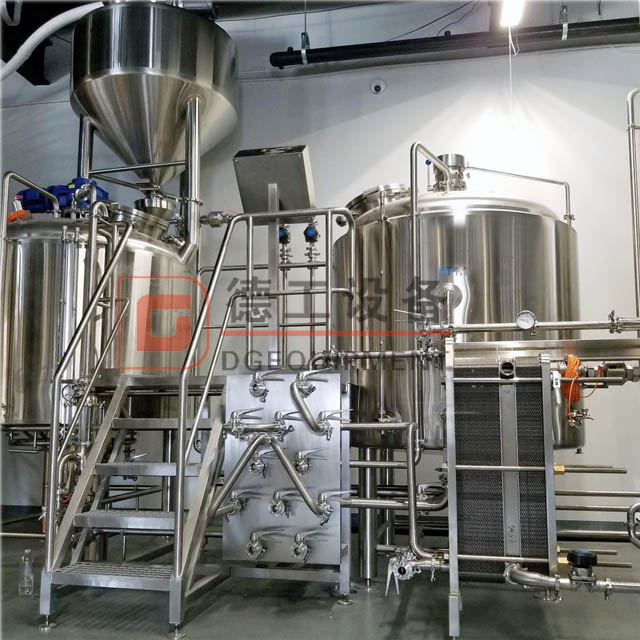

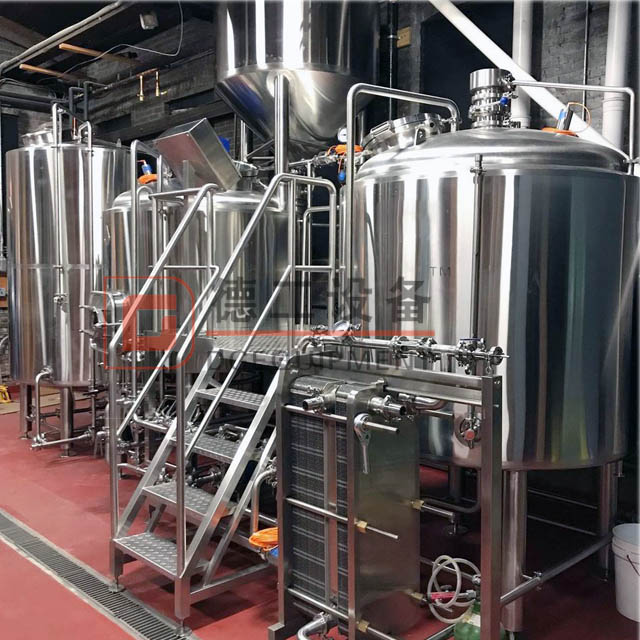

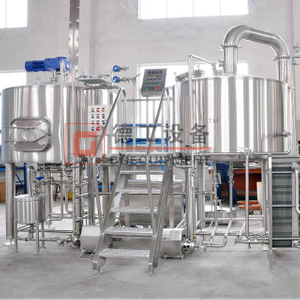

Regarding the brewhouse of beer brewing equipment, we have two vessels, three vessels and four vessels brewhouse for your choose.
Mash /Lauter tun:
dish head on the top, 100mm PU insulation, Agitator with VFD controlled, SUS or glass manhole, CIP cleaning device, Legs and other pipelines and valves.
dish head on the top, 100mm PU insulation, Raker arm with speed controller, Side mounted grain outdoor with grain chute, Easy clean and detachable sparging spray ring, Leaser cutting false bottom, SUS or glass manhole, CIP cleaning device, Legs and other pipelines and valves.
Kettle/Whirlpool tun
dish head on the top, 100mm PU insulation, Heating: electric, steam or direct fire heating, Tangential whirlpool inlet, SUS or glass manhole.
CIP cleaning device, Legs and other pipelines and valves
Hot water tank:
Hot water tank is almost always insulated and can be heated through steam or an electric coil.

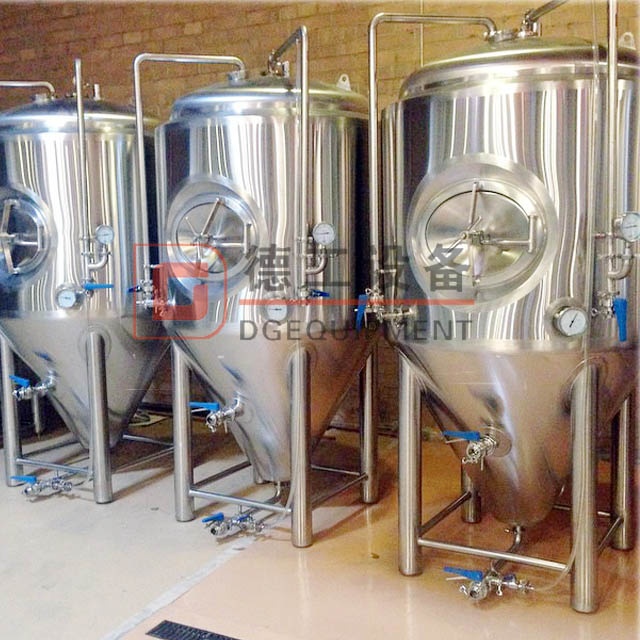

Fermenter for brewery equipment
Function: Use for keep wort fermentation or maturation.
With bottom cone 60 degree
Component: It is consisted of Shadowless manhole, spunding valve, Aseptic valve, Pressure gauge, Rotate racking arm, Butterfly valve, Solenoid valve and etc.
Fermentation system is generally consists of 4-8pcs fermentation tanks. It can be selected freely by brewing type and sales situation of beer.
Cooling method: dimple plate or glycol cooling jacket around tank.
Cooling media: glycol water .
Design pressure is 0.3MPa; Working pressure is 0.15MPa.( Our standard design, MPa can be customized).
Bright beer tank for brewery equipment
Function: After fermenting, beer will be stored in BBT for carbonation and serving.
Component: It is consisted of Shadowless manhole, Mechnical relief valve, Aseptic valve, Pressure gauge, spunding valve, Butterfly valve, Solenoid valve and so on.
Capacity: effective volume is 100L-30000L, 1BBL-300BBL
Cooling method: dimple plate or glycol cooling jacket around tank.
Cooling media: glycol water
Design pressure is 0.3MPa; Working pressure is 0.15MPa.( Our standard design, MPa can be customized).
serving tank
If you have interest, get in touch with me freely.
Regarding the brewhouse of beer brewing equipment, we have two vessels, three vessels and four vessels brewhouse for your choose.
Mash /Lauter tun:
dish head on the top, 100mm PU insulation, Agitator with VFD controlled, SUS or glass manhole, CIP cleaning device, Legs and other pipelines and valves.
dish head on the top, 100mm PU insulation, Raker arm with speed controller, Side mounted grain outdoor with grain chute, Easy clean and detachable sparging spray ring, Leaser cutting false bottom, SUS or glass manhole, CIP cleaning device, Legs and other pipelines and valves.
Kettle/Whirlpool tun
dish head on the top, 100mm PU insulation, Heating: electric, steam or direct fire heating, Tangential whirlpool inlet, SUS or glass manhole.
CIP cleaning device, Legs and other pipelines and valves
Hot water tank:
Hot water tank is almost always insulated and can be heated through steam or an electric coil.
Fermenter for brewery equipment
Function: Use for keep wort fermentation or maturation.
With bottom cone 60 degree
Component: It is consisted of Shadowless manhole, spunding valve, Aseptic valve, Pressure gauge, Rotate racking arm, Butterfly valve, Solenoid valve and etc.
Fermentation system is generally consists of 4-8pcs fermentation tanks. It can be selected freely by brewing type and sales situation of beer.
Cooling method: dimple plate or glycol cooling jacket around tank.
Cooling media: glycol water .
Design pressure is 0.3MPa; Working pressure is 0.15MPa.( Our standard design, MPa can be customized).
Bright beer tank for brewery equipment
Function: After fermenting, beer will be stored in BBT for carbonation and serving.
Component: It is consisted of Shadowless manhole, Mechnical relief valve, Aseptic valve, Pressure gauge, spunding valve, Butterfly valve, Solenoid valve and so on.
Capacity: effective volume is 100L-30000L, 1BBL-300BBL
Cooling method: dimple plate or glycol cooling jacket around tank.
Cooling media: glycol water
Design pressure is 0.3MPa; Working pressure is 0.15MPa.( Our standard design, MPa can be customized).
serving tank
If you have interest, get in touch with me freely.
