| Material: | |
|---|---|
| Manhole: | |
| Insulation: | |
| Quantity: | |
DGET-600L
DGET
8438400000
1.Mash tun
Mash tun is a vessel used in the mashing process to convert the starches in crushed grains into sugars for fermentation. Equipped with suitable jacket and mixer to ensure temperature rise rate, avoid coking large volume, as well as wort boiling, improve the overall system’s efficiency.
2.Lauter tun
Set more suitable wort outlets accord with hydrodynamics principle, assure wort flows through piping etc. long wort collection ring, make wort collection steadily and speedily.Because after filtering the spent grains will be removed from the lauter tun, saving a lot of time and energy of the brewmaster. Furthermore the lauter tun can be equipped with additional accessories such as collect rings, backwashing rings, sight glasses, CIP jets for simplifying the lautering.
3.Boiling tun
After lautering, the beer wort is boiled with hops (and other flavourings if used) in a large tank known as brew kettle. The boiling process is where chemical and technical reactions take place,
With inner heater, jacket, mixer. This design makes the kettle tun can be used as adjunct cooker or mash tun, meet the special demands of craft beer process; benefit for heating low-temperature wort more.Inner heater functions to wort forced circulation
4.Whirlpool tun
At the end of the boil, the hopped wort settles to clarify in a vessel called a "whirlpool tun" which has is a tangential inlet of wort. Thus, a vortex is formed when the wort is infused along the arc inside surface, so that the more solid particles in the wort are separated out.
Specially designed whirlpool tun bottom accord with hot trub sedimentation characteristics, combined with specially designed hot trub collection zone, can make the hot trub more closely and be discharged directly no need for washing, avoid remixing hot trub into wort when we pump the wort to PHE.
5.Hot water tank(optional)
Hot water tank, called hot liquor tank in a brewery, is the buffer tank that contains hot water that will be used to sparge the grain bed during lautering to extract a maximum of sugars out of the malt. This hot water storage tank is almost always insulated and can be heated through steam or an electric coil.
Customers can combine freely according to their needs, of course our engineers will recommend the most suitable beer brewing system for you.

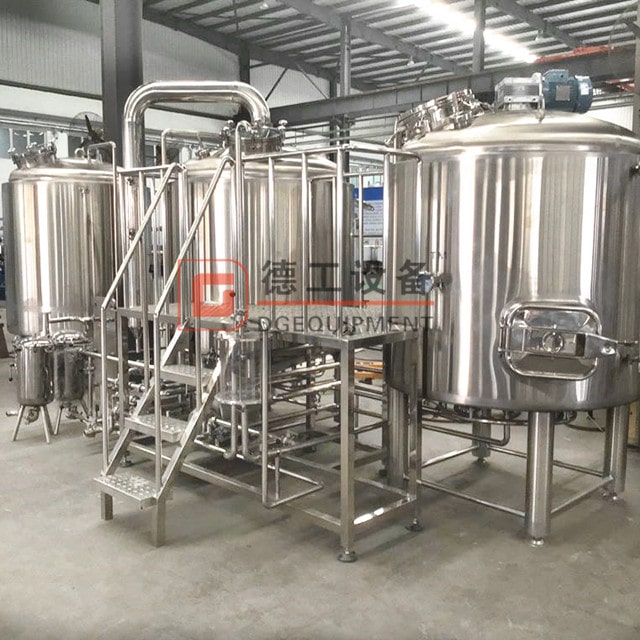

2-vessel:mash/lauter tun+boiling/whirlpool tun
Material:SUS316L or SUS304
Interior Shell: 2B/mirror plate; TH=3mm
Exterior Shell:2B/mirror/brushed plate; TH=2mm
Heating method:steam or direct fire
Dimple jacket for heat exchanger, polyurethane insulation,TH=80mm
Lauter plate:milling
Grain removal:side discharging or bottom discharging
Tank equips with manhole, light sight glass, washing tube, temperature sensor
achieve temperature control, 360 degree sanitory washing ball,material inlet and outlet etc;
Exhaust system:indoor or outdoor exhaust pipe and fan;
Plate heat exchanger: cooling form,capacity and piping meet requirements
Oxygenation system:oxygenation form, capacity and interface form meet requirement
Working platform：stainless steel304/316
Heating system: design capacity meet the requirement
Cooling system: design capacity meet the requirement
Accessories:cold water pump, hot water pump,, filter pump, whirlpool pump, wort pump, mixer, wort tester, hop adding device, saccharimeter,raker,spent grain recovery and transfer device, CIP system etc.

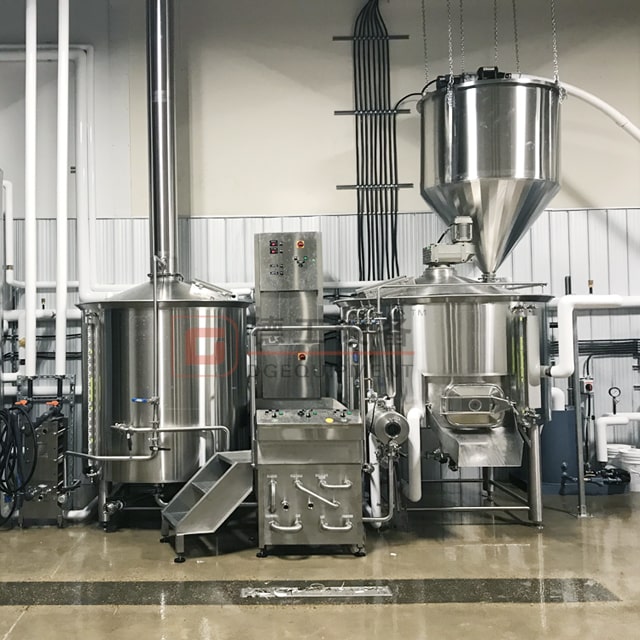

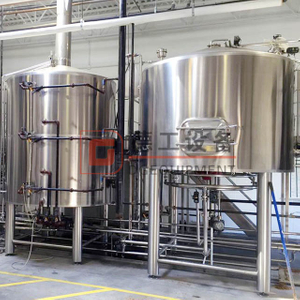

brewhouse system accessories

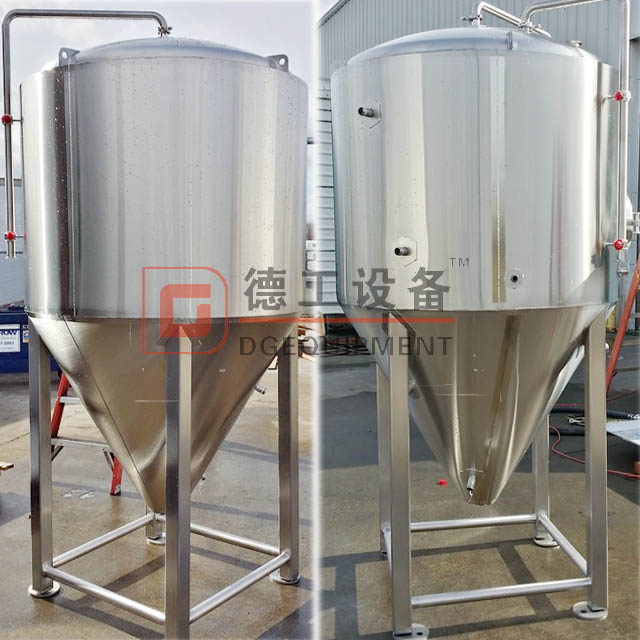

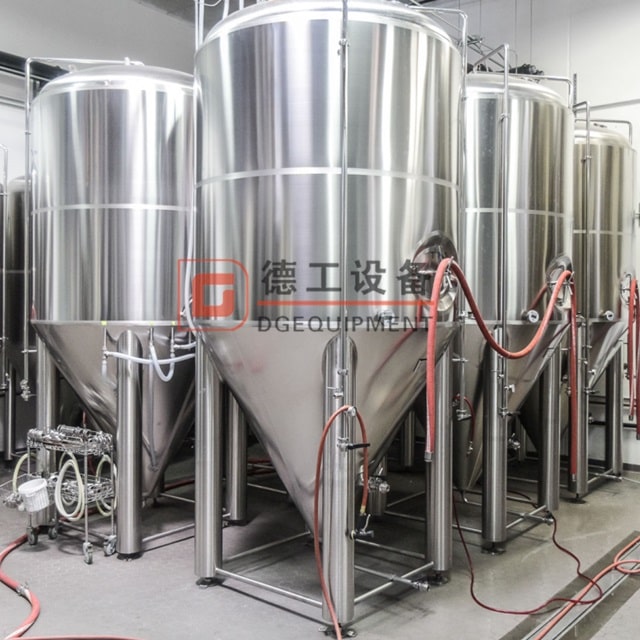

mirror conical fermentation tank
If you are interested in DEGONG brewery equipment, get in touch with me freely.
