Standard 2 Vessel configuration with HLT and Heat ex-changer and 10 BBL Hot Liquor Tank.
The heating method can be electric heating,direct fire heating and steam heating.
We can provide customized services according to customer requirements.
Brewhouses are comprised of several key pieces of brewing equipment. The mash tun, lauter tun, brew kettle,and whirlpool, in the skilled hand of the brew master, convert grain that has been milled through a specialty grain mill, into sweet liquid called “wort”. Wort is subsequently fermented and finished in specialized beer tanks called fermenters and brite tanks.
The brewhouse is both the heart and engine of the brewery where several critical processes in the creation of craft beer is performed. Brewhouses, along with other key pieces of brewing equipment, vary in capacity, features, and complexity, but all brewhouses share the need to wet grain, separate the wort from the grain, and boil the wort with a heating source. The three most common brewhouse heating methods are: steam, direct fire, electric.
7 BBL Steam heating Brewhouse equipment
|Brewhouse system configuration|
Standard 2 Vessel configuration with HLT and Heat ex-changer
10 BBL Hot Liquor Tank.
All piping(except piping for HLT to mash-tun)
Mash/Lauter tun, Kettle/Whirlpool,
Work platform with stairs and railing,
2 sanitary pumps,
Heat exchanger, rakes,
All vessels on steam systems jacketed,
Motor, Control Panel ,
Thermocouples, controllers,Transformers, Grist Hydrator.
Recommended steam generator.
All pumps and rakes variable speed for superior fluid control.
Side view of brewhouse system ( sight glasses,grain spent port... )

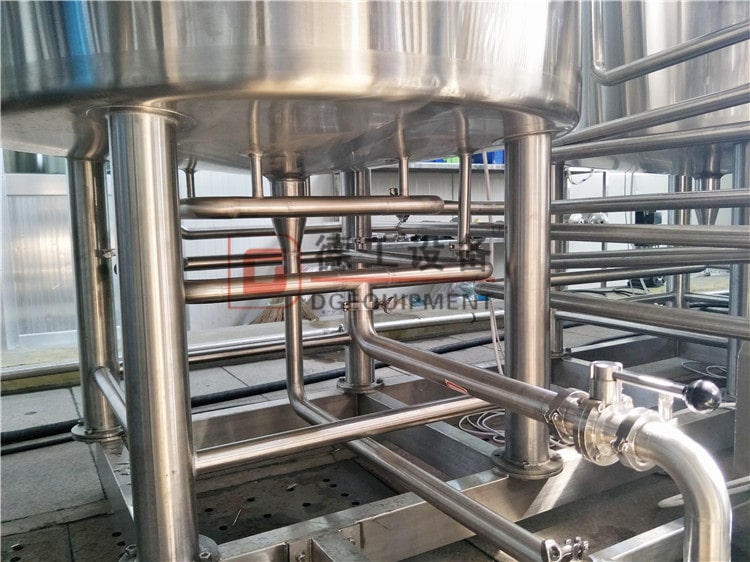

Brewhouse system pipeline detail
Pump and top manway

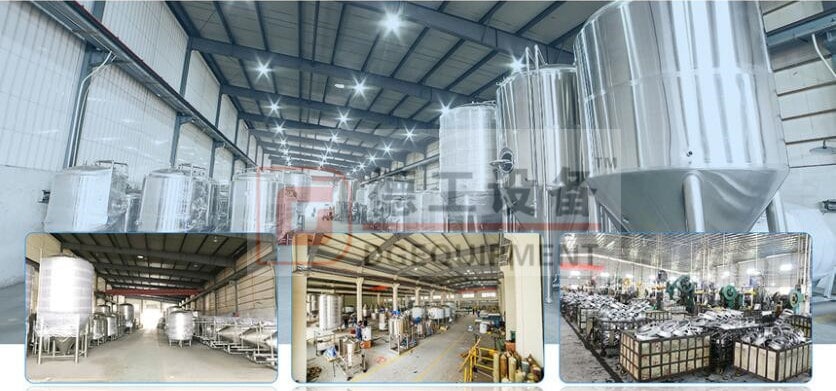

|DEGONG brief introduction|
a. All the materials touching with beer directly are all top quality food grade stainless steel.
b. We use the first class valves and manhole for our equipments.
c. All the materials we use is nonmagnetic.
d. The thickness of the material exact fit in with what shown in our quotation sheet.
e. Most importantly, our staff is always available for your needs and questions.
If you are interested in our craft beer brewery equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you.
