DGET-500L
DGET
8438400000
Breweries have classic packaging arrange consisting of brewing kettle,fermentation vessels and additional equipment.The brewery equipped with semiautomatic control panel.Staff training occurs during installation of equipment and test brews.
500L Microbrewery Specifications: |

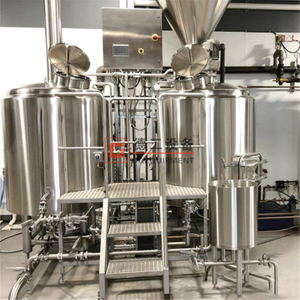

Our standard 500L brewhouse offering is a partially skid mounted system that includes a 500l steam fired brew kettle/whirlpool, pre-piped in our shop. The brew kettle is matched up with a 500l mash/lauter tun and 1000l hot liquor tank, allowing the brewer to make double batches in a day to increase production. This smaller yield brewhouse is perfect for smaller sized batches, special offerings, or seasonal beers.
Mash Tun / Lauter Tank
Brew Kettle / Whirlpool
Stainless Steel Work Platform with Handrails
1000L HLT
Fully Welded Sanitary Process Piping System
Complete Electrical Package
500L 2 vessels brewhouse
Mash Tun/Lauter Tank Assembly
All stainless steel 304 construction, dished top and bottom.
Fully TIG welded assembly. Internal welds are smoothed with external welds acid cleaned and re-grained. External welds are stripe buffed.
Internal mash grid assembly withwedge wire removable screens for ease of cleaning.
(1) Sealed access door.
(2) Sealed top man door access.
(3) Thermo-well installed with RTD for measuring temperature in Mash / Lauter Tun
(4) Fully welded steam jacket with rear exit protruding steam/condensate nipples on main body.
Leg assembly with standard anchor pads.
Polyurethane insulation with gauge polished stainless steel outer shell.
Brew Kettle/ Whirlpool Assembly:
All stainless steel T-304 construction, dished top and bottom.
(1) Sealed top man door access.
Leg assembly with standard anchor pads.
Polyurethane insulation with gauge polished stainless steel outer shell.
(2) Steam flue slip flange with condensation gutter and drain port.
Fully TIG welded assembly. Internal welds are smoothed with external welds acid cleaned and re-grained. External welds are stripe buffed.
(3) Fully welded steam jackets with rear exit protruding steam/condensate nipples. Two jackets are installed on the side circumference of the tank and one is installed on the bottom dish.
(4) Thermowell installed with RTD for measuring temperature in Brew Kettle.
Dish head,transfer pump,false bottom and spent grains door
1000L Hot Liquor Tank Assembly
Dished top and bottom jacket.
(1) Fully welded steam jackets with rear protruding steam/condensate nipples.
Fully TIG welded assembly. Internal welds are smoothed with external welds acid cleaned and re-grained. External welds are stripe buffed.
(1) Sealed top man door access.
(1) Thermo-well installed for your supplied temperature probe.
Leg assembly with standard anchor pads.
Polyurethane insulation with gauge polished stainless steel outer shell.
The HLT includes an electrically actuated steam valve that is pre-wired into our control panel for temperature control.
Hot liquor tank pump as a 220/380V 3 phase motor with all stainless steel recirculation piping installed to ensure consistent strike water temperatures.
Raker and top manway

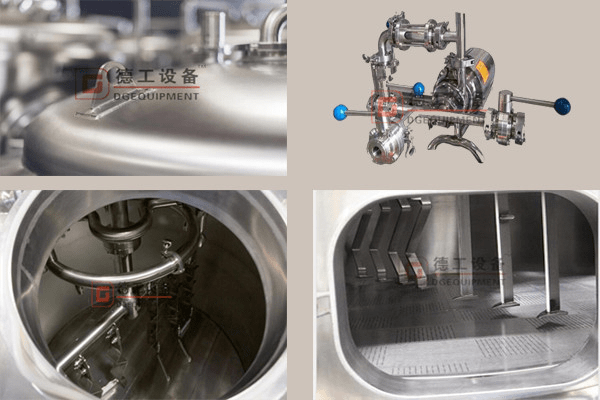

Sanitary Piping System
A. Stainless steel work platform with handrails.
B.Fully welded sanitary process piping package including:
All Sanitary Gaskets
Butterfly Valves
Site Glasses
Tri Clamps
(1) Transfer pump.
220V/380V 3 phase motor.
Pump mounted to the bottom of the access platform and complete with all piping connections.
(2) Dual stage all stainless-steel Mueller heat exchanger assembly mounted to the underside of the access platform. We do offer a single/double stage heat exchanger with our systems dependent of your specific needs.
(3) Grant/ Hop Back kettle complete with:
Built in float switches.
Removable wedge wire bottom screen with lift out handle.
Standard Control/Electrical package will include:
Stainless steel wash down electrical box to include:
Temperature readout for the Mash Tun, Brew Kettle & HLT.
Automated temperature control for the HLT.
VFD for main transfer pump.
Float switch controllers for the Grant/Hop back kettle.
VFD for the Hot Liquor Tank pump.
On/Off/Auto switch for the Transfer pump assembly.
Wiring diagram for operation of this system
Heating options of mash tun/brew kettle:
1. Steam heating
2. Natural gas heating
3. Electric heating (electric heater is placed in stainless steel cylinder)
Jacketed & Insulated 3*1000 liters Fermentation tanks
Jacketed & Insulated Fermenter Assembly
· greater than 25% headspace
· cylindro-conical design

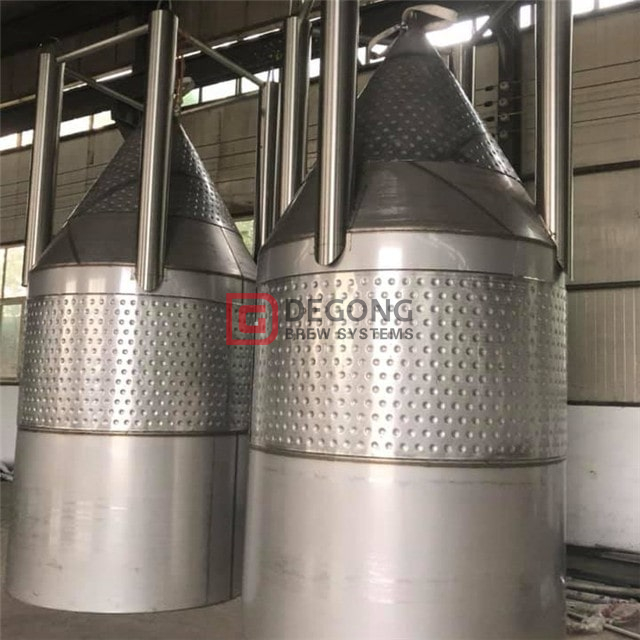

· multi-zone glycol dimpled cooling jackets
· slotted, rotary spray-ball CIP w/ 360° coverage
· CO2 blow-off arm
· hop dosing port, w/ easy-access ladder hooks
· rotating racking arm, w/ DIN fitting & easy-grip handle
· Sanitary thermowell
· optional spring-loaded RTD
· sample port with perlik style valve
· pressure / vacuum relief valve ("PRV")
· all butterfly valves included
· SUS 304 stainless steel, TIG weld construction
· reinforced stainless steel legs, w/ leveling foot pads
· pressure-rated shadowless manway
Horizontal beer lagering tank: |

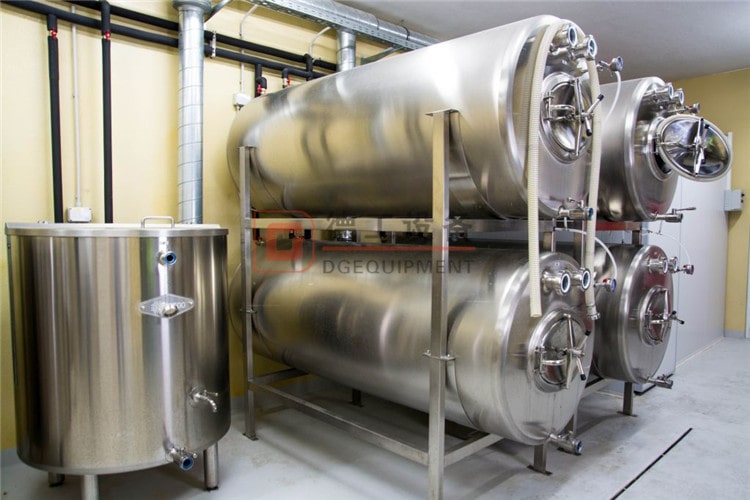

Horizontal beer lagering tank
Technical parameters
Non-insulated beer lagering tank
Food grade sanitary stainless steel 304
Design pressure: 3 bar Working pressure: 1.5-2 bar
Can be put on a stackable construction
Mirror polishing inside and 2B finish outside
With spraying ball for cleaning tanks
Thickness of material: 3.0mm
Pressure gauge
Carbonation stone
Insulation: N/A
Manhole on the front bottom
side service door
CIP and manometer connection fittings
Filling level indicator
With all components included such as valves, release valve, sample valve, thermometer, temperature probe, etc…
All our lagering tanks are customized as requested.
FAQ |
1. How long is your delivery lead time?
A: After 30-45 working days when we receiving your payment.
2. Could you calculate the shipping for me?
A: Yes, please kindly let us know which port is nearest your place.
3. What is your term of payment?
A: Our payment terms are both TT and L/C. 30% for advance payment after signing the contract and before manufacturing, 70% as balance payment after manufacturing all equipments and before delivery.
4. This is the first time I use this kind of machine, is it easy to operate?
A: There are English manual or guide video for showing how to use the machine;
If you still have any questions, we can contact by phone or email, etc;

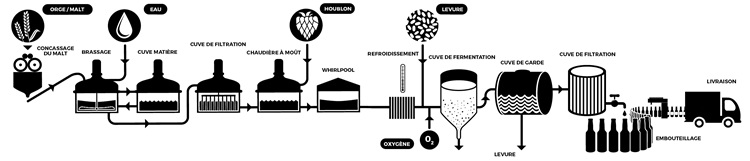

The brewing process
Cooperator |
Whether you are a start-up, a well-established craft brewery or a market leading brand – you can benefit from DGET in the brewery industry. Our catalog of high-quality equipment ranges from complete systems to process units to components.
Business partner

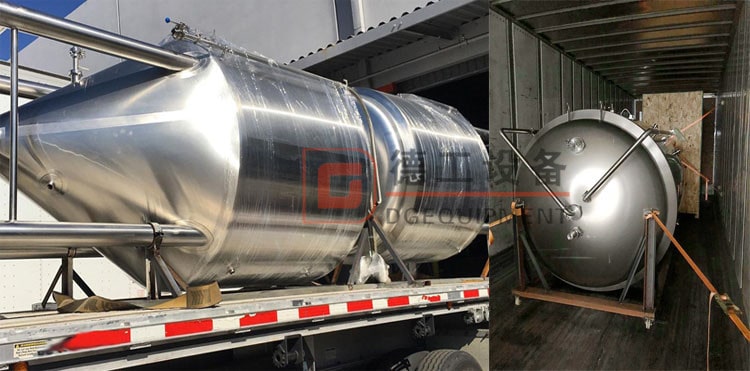

Packaging & Delivery |
