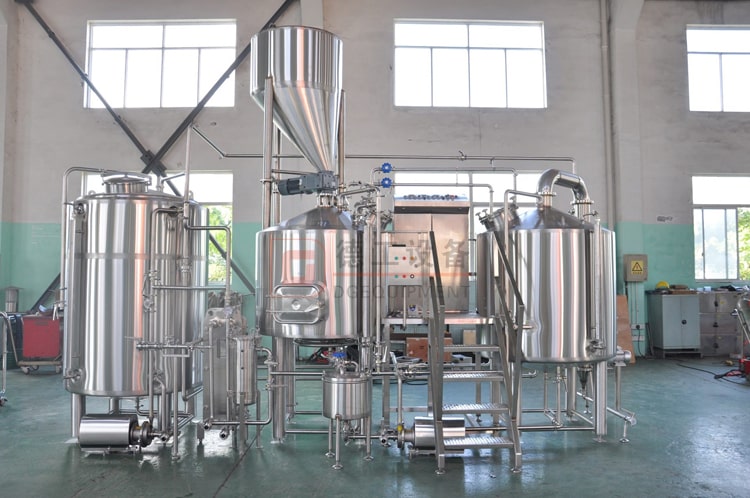

500L Complete Automated Craft Beer Brewing System Three Pot Beer Cooking Equipment with PED Certification

Our 500l brewing equipment is an excellent medium brew pub system!  This 500l brewing system is easily expandable as demand grows, and is an ideal brewing system for the beginning entrepreneur, restaurateur and artisan. Offering all the advantages of a fast and easy setup, our 10bbl brewery equipment comes with UL Listed Controls that meet the nationally recognized Standards for Safety, which keeps your brewers safe and avoids major hassles at inspection time.

Miller system

• Miller


• Malt screw auger

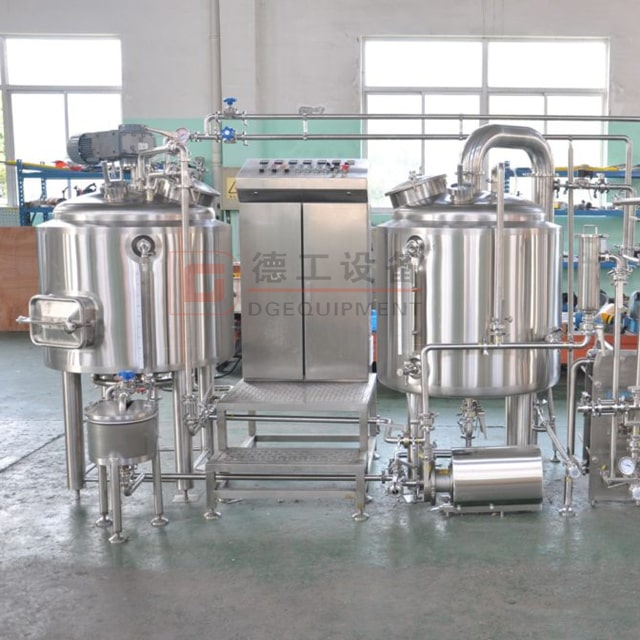

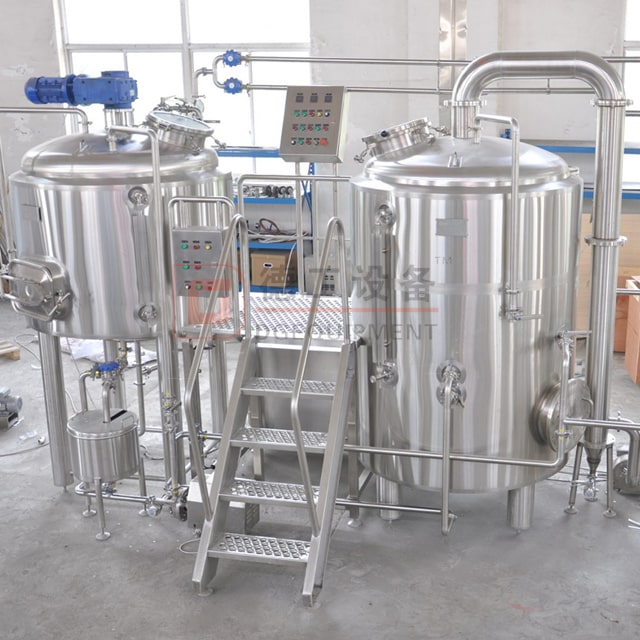

Beer brewhouse

DEGONG brewhouse offer everything that’s essential for best beer quality. An economical boiling system, a reliable lautering system and high-quality elements for the piping and frequency management of the pumps and motors. Our brew house unit designed in line with client demands and embody intensive levels of automation within the case of higher outputs.

3 vessels beer brewhouse:Mash/lauter tank+Boiling/whirlpool tank+hot liquid tank

Component

• Mash/lauter tank+Boiling/whirlpool tank+Hot liquid tank(Customized,It is just common configuration)

• Wort pump&Hot water pump:VFD Control,Siemens Brand

• Plate heat exchanger(Chiller),One stage or two stage(Customized)

• External wort Grant

• Wort aeration assembly

• Hops filter

• Operation platform

• Pipelines

• Steam heating/direct fire heating/electric heating




Mash&Lauter

Fermentation tank

The Fermentation Tank is created out of stainless-steel and it’s insulated in its exterior by polyurethane insulation material.The Fermentation Tank is given mark jackets to permit even cooling of the fermentation brew. DEGONG fermentation and storage tanks stand for maximum product quality and reliability. They comply with all applicable standards. Other quality features include generous and separately controllable cooling zones for perfect fermentation and storage. High-class surface finish and properties prevent areas that are inaccessible for cleaning and guarantee micro biologically perfect brewing.

Stainless steel beer fermentaiton tank-Unitank

Features:

• All fermenters are rated to 14.7 PSI (1 bar) operating pressure

• Two-zone glycol jacketing encompasses the 60-degree conical cone and sidewalls

• Top-mount manway (optional side-mount configurations available)

• Complete thermal insulation of side walls and cones

• Every fermenter is equipped with:

• racking arm

• pressure relief valve

• blow-off/ clean-in-place (CIP) tube

• CIP spray ball

• sample valve

• butterfly valves

• TC clamps, gaskets and clamps

• 90-degree elbows

• optional rupture disc assemblies available

Carbonation stone&Breathing valve&Sample valve&Temperature sensor,,,,,,ect

Cooling System

The cooling system is vital for the production of beer; it controls the Fermentation environment and keep the temperature ideal for yeast throughout the process of conversation of sugar into alcohol. The Refrigeration system is the key system within the fermentation section because it helps regulate and maintain the temperatures of the product during fermentation when heat is released as by product of the fermentation process.

• Glycol water tank

• Cold water tank

• Refrigeration unit

• Circulate pump

CIP System

CIP Unit is specifically designed for cleaning of system. The system is employed to clean and sanitize all the brewery equipment including brew house, fermentation tanks and bright beer tanks using specially engineered CIP Spray balls for optimum cleaning of internal surface. To optimize processes and ensure perfect cleaning, we connect CIP unit to the automatic control.

• Sterilization tank

• Acid tank

• Pump

Control System

Automated Brewery System has perpetually been a combination of each client requirement, so what if we can automate the process a bit more? Choose between semi-automatic and fully automatic control. The principle here is: the bigger the brewery, the higher the level of automation. Our control is based on the Siemens programmable logic controller and guarantees extremely simple operation. This is controlled via a touch screen.

• German TUV Certification Control Cabinet

• European standard

• Siemens,Schneider,Omron component

Dispensing Equipments

 Dispensing heads are available in a variety of finishes, with tower designs ranging from traditional to custom creations, there’s a style to fit virtually every decor and dispensing need

Wooden packing or Frame Packing to avoid demaging during transportation

After delivering the equipments to our customers, Degong will arrange special worker to do the track service,because we set up the marketing department for specially dealing with the feedback of customers for providing the satisfied service. Once Degong gets the feedback from customers, we will do our best to deal with it for you.

Why choose us:

1.Always delivery in time

2.Guarantee is 3 years

3.Install equipment freely

4.Real food grade SUS 304

5.Promise good pre service and after service
