7BBL Customized Stainless Steel 304 Automatic Steam Heating Conical Beer Brewing Tanks for Sale
Home » Brewery Equipment » Beer brewery equipment » 7BBL Customized Stainless Steel 304 Automatic Steam Heating Conical Beer Brewing Tanks for Sale

Product Detail

loading

Share to:
sharethis sharing button

7BBL Customized Stainless Steel 304 Automatic Steam Heating Conical Beer Brewing Tanks for Sale

DEGONG can design and manufacture beer brewing equipment for commercial used or restaurant/brewpub/bar used….All of brewer equipment is customized according to your requirement,such as material,brewhouse confirugration,heating method and so on.If you don’t know more about the beer production project,you can tell our engineer your application,your brewing plan…..so we can give you the most professional suggestions.
Thickness of material (mm):
Inner:3mm
Outer:2mm
Jacket:2mm
Insulation:
100mm polyurathane
Matrial:
Stainless steel or red copper
Heating method:
Steam heating
Gas heating
Electric heating
Control panel:
Semi-automatic
Full automatic
Availability:
Quantity:
Inquire Add to Basket

  • DGET-7BBL

  • DGET

  • 8438400000


Beer brewing equipment is used for brewing a variety of beer , such as ale,lager, IPA and so on. The raw material of beer brewing is four basic ingredients (water, malt, yeast, hops) and some auxiliary ingredients (sorghum, rice).

1000L beer brewing equipment is the most popular type in the market.Because it is not only suitable to private brewery,but also suitable to middle brewpub,restaurant.......



Features of 7BBL beer brewing equipment


Component of the brewing system


                                                                           Component
Malt Milling

  • Particle adjustable rolling crusher

  • Flexible or steel auger to directly lift the milled grain to mash tun
Brewhouse

  • Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination

  • Hot water tank and cold water tank for optional in special combinations

  • Stainless steel are popular because of easy maintenance and clean, copper cladding for optional

  • Two stages or single stage heat exchanger for wort cooling

  • Completely stainless steel integrated work platform

  • Sanitary and efficiency wort pump

  • All pipings and fittings

  • Grant /hop guns for filter or storage first wort

  • Wort oxygen system

  • Optional heating style of steam, electric and direct fire for brewhouse tanks
Fermentation

  • Standard stainless steel conical cylindrical fermentation tanks

  • Single size or double size as brewhouse

  • Tanks quantity is exactly calculated by fermentation cycle for various beers

  • All manhole, valves, pressure gauges, fittings etc are included
Beer Filter

  • Craft beer is no need filtration which will keg filling for quickly consumption

  • Plate-Frame or Candle type DE (diatomite earth) filter is used for clarify the beer
Bright Beer Tank

  • Standard stainless steel bright tanks for beer maturation, conditioning, service, carbonation

  • Single size or double size as fermenter

  • All manhole, valves, stone, gauges, fittings etc are included
Cooling System

  • Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing

  • Efficiency chillers or refrigerators with fryon to supply cooling energy

  • Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger

  • All pipes, fitting, insulation materials are included
Controlling Unit

  • Electrical controlling cabinet with temperature, on-off controlling thermocouple, solenoid valves etc are included

  • PLC with touch screen panel for special request

  • PLC control panel with Siemens,Omron,Schenider element,and accord with EU standard

  • VFD controlled reducer and wort pump



Beer Dispense

  • Keg filling and rinsing machine

  • Semiauto bottling machine with rinsing, filling, capping, labeling etc

  • Flash pasteurizer or tunnel pasteurizer is available
Other Facilities

  • Portable or fixed CIP system for cleaning the tanks

  • Steam boiler for brewhouse heating

  • Water treatment for brew water

  • Oil free air compressor

  • Brewery lab instruments for beer quality test


BREWHOUSE

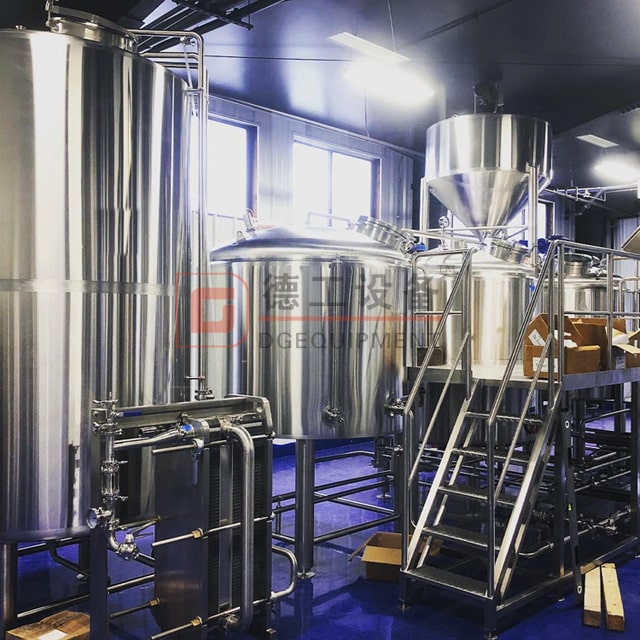

2 Vessels beer brewhouse:Mash/lauter tank+Boiling tank+whirlpool tank

未标f1

3 Vessels beer mashing system

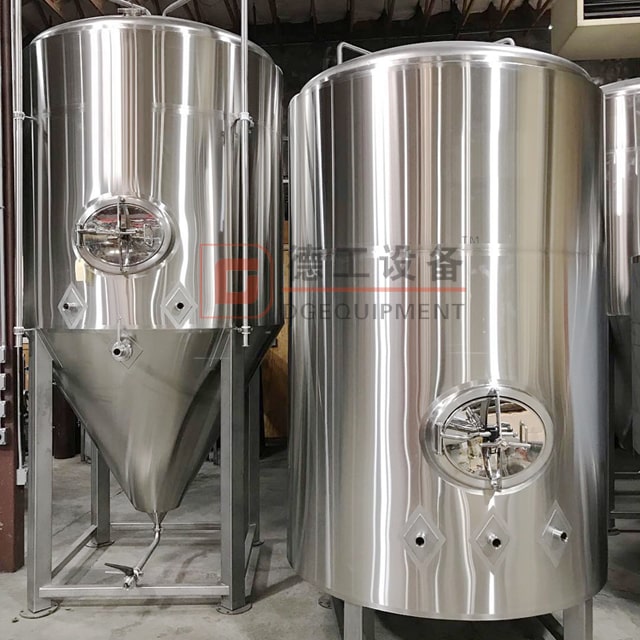

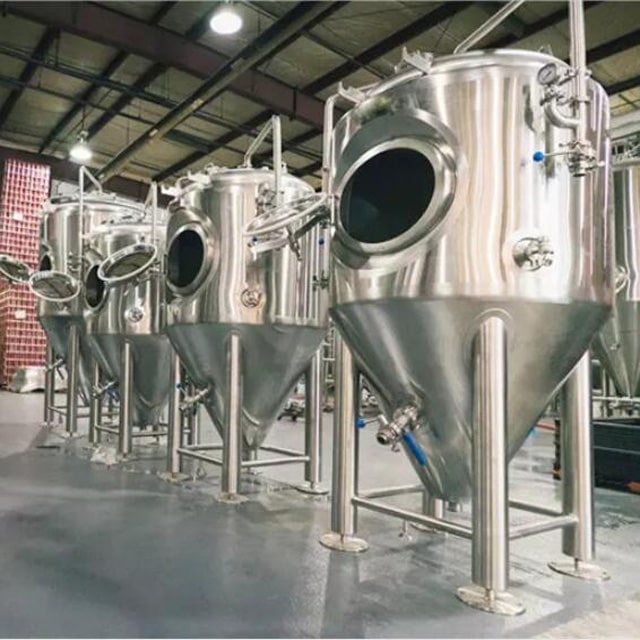

Fermentation tank-Unitank

Fermentation tank-Unitank

Bright beer tank

Bright beer tank

Mash&Lauter

Mash&Lauter


Features

  • 100% TIG welding with pure argon gas shield

  • More competitive price and better quality

  • CE, ISO, TUV approved equipment

  • More humanized design which allow you to operate easily

  • Compact design saving your space

  • All the materials touching the beer directly are all top quality food grade stainless steel.

  • We use the first rate valves and manholes for all our equipments.

  • I am here to guarantee all our customers that the materials are nonmagnetic.

  • The thickness of the material exactly fit in with what showed in the specification sheet.

  • If you are a new comer to the beer making field, Don’t worry, I will give you our professional recommendations. And the equipment must be top quality engineered.

  • Engineer is always available to make the relative 2D and 3D drawings for you for your reference.


Service

Pre-Service                                                                                               After-Service

Recommend brewery equipment according to                                          Help customer to install equipment.

customer's requirement.Design appropriate tank's                                    Train customer how to brew beer.

drawing and layout size drawing based on customer's

space.

1                   未标题-1-min副本


Certification

01


Contact us


Why choose us:

1.Always delivery in time

2.Guarantee is 3 years

3.Install equipment freely

4.Real food grade SUS 304

5.Promise good pre service and after service
