| Thickness of material (mm): | |
|---|---|
| Insulation: | |
| Material: | |
| fermentation tank Manhole: | |
| Quantity: | |
DGET-1000L
DGET
8438400000
Micro Brewery can be a good start of your own brewery business with the size from 500L to 20000L. The brewhouse comprising of 2 or more vessels is mounted on a stainless steel skid or on the floor with piping, pumps, platform, etc, which are pre-built for convenient installation on site.
Especially, we focus on your convenient running breweries, by learning your special specifications and realizing them on the brewing systems.
Food grade stainless steel microbrewery equipment
VFD grain raker & top manhole
Two stage plate heat exchanger and yeast add tank

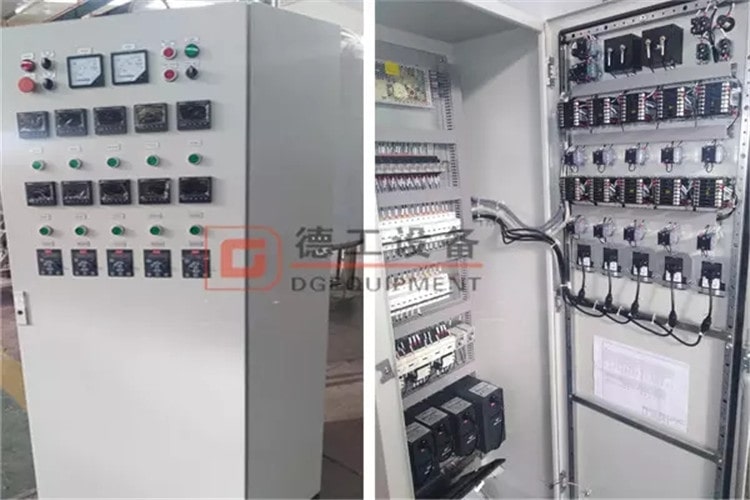

Semi auto control unit
（PLC with touch screen optional）
The heating method can be electric,steam and direct fire heating
| Fermentation tank features: |
CCT have a cooling jacket over the entire height of the cylindrical and conical part. ССT are warmed by polyurethane foam 70-100 mm thick. The external covering of CCT is made of food mirror stainless steel.
A set of beer fermentation tank
Basic technical parameters：
SS 304 construction
Internal shell: 3mm, External Shell :2mm；jacket shell:1.5mm
Top dished head with pressure vacuum relief valve
Top manway or side manhole
Dry Hopping port with cap
Sanitary rotary spray ball
PU foam insulated
Cooling jacket on cylinder and cone bottom
Side CIP arm assembly with bung valve and pressure gauge
Sanitary thermowell
Sample Valves
Rotating racking arm
60 degree cone bottom
Bottom discharge
Four legs adjustable feet
Carbonation Stone;Butterfly Valves;Solenoid Valve
| Our company: |
Whether you are a start-up, a well-established craft brewery or a market leading brand – you can benefit from DGET in the brewery industry. Our catalog of high-quality equipment ranges from complete systems to process units to components.

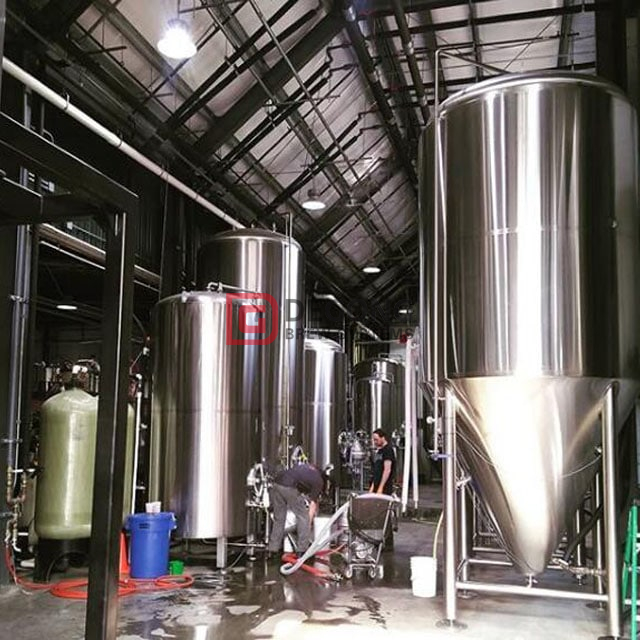

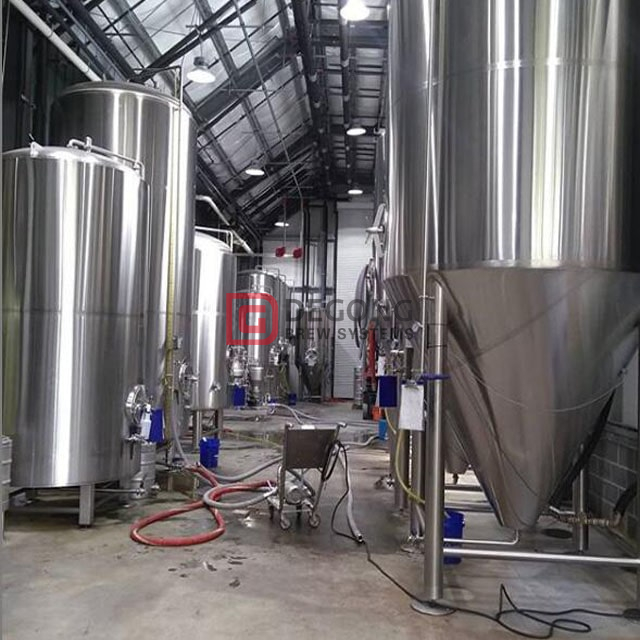

Client's Brewery Project
After-sale service:
1. We provide long-term after-sale service.
2. Owing to the quotation of our equipment is FOB price which excluded charges of door-to-door service. Thus, if necessary, we can appoint our technician to debug the
machine with air ticket, visa, accommodation and labor cost provided by your party. Or you can send your technician to our company to learn techniques.
3. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
| Packaging & Delivery |
Packaging Details: standard wooden package
Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.
Ready to ship
| Contact information: |
If you are interested in our craft beer equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you.
