500L commercial UL approved stainless steel micro beer brewery equipment for sale

500L stainless steel micro beer brewing equipment is mainly used for hotel, brewpub or restaurant. It is the best choice for beginners. Customers are allowed to customize their own brewery systems according to their requirements. Degong will fulfill our responsibilites to help you throughout the brewery project from design of the layout to installation and trainning. Our beer brewing equipment is CE ISO TUV UL PED approved.
Insulation:
Certificate:
Heating method:
Standard:
Pressure:
Availability:
Quantity:
  • DGET-500L

  • DEGONGET

  • 8438400000

500L commercial fully automated steel micro beer brewery equipment for sale


3D drawing of a complete set of 500L micro beer brewery equipment

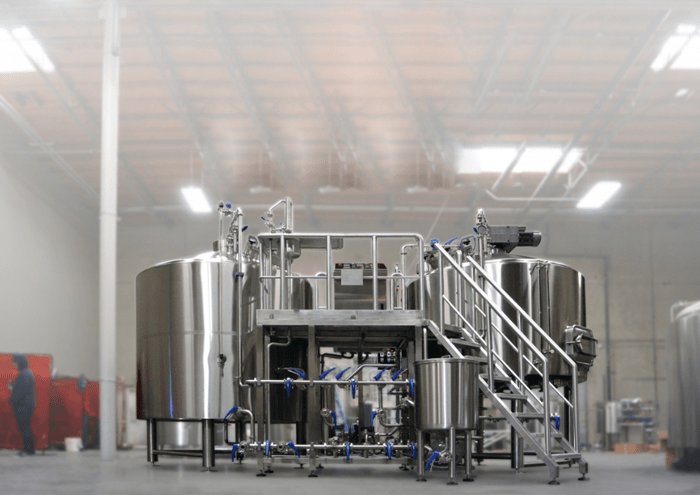

As the most popular brewery system for brewpub or hotel, 500L beer brewing equipment has been sold to almost every corner of the world by far, including Ireland, UK, Germany, Sweden, Belgium, Russia, USA, Chile, South Africa, Czech, etc... The configuration of one set of 500L beer brewing equipment may differ from the other since our brewing equipment is custom built. A complete set of 500L beer brewing equipment is consisted of milling system, brewhouse system, fermentation system, CIP system, cooling system and control system.

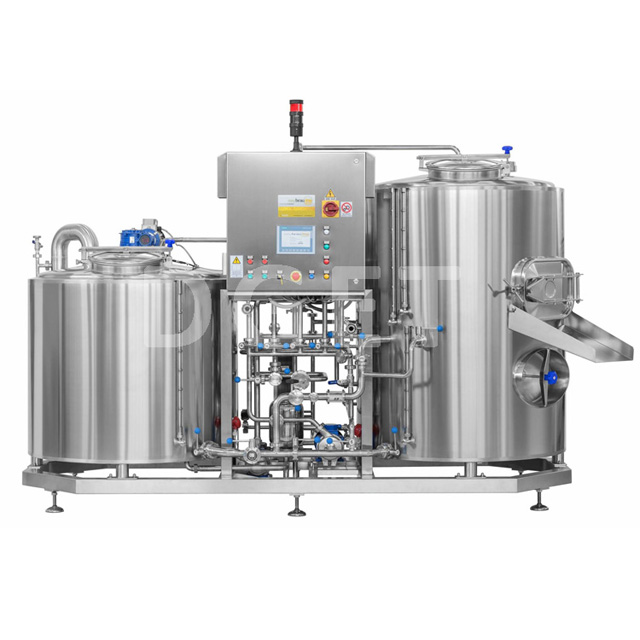

Beer brewhouse system of 500L beer brewery equipment



Mash/Lauter tun:


  • Stainless steel grist hydrator

  • Upper and lower jackets (Just for steam heated system)

  • CIP spray nozzles under false bottom

  • Fully insulated tank

  • Stainless steel material

  • SS CIP high low rotary spray ball with 360 of coverage

  • Interior light

  • Sparge ring assembly

  • Tempered glass top manhole

  • Side manhole for automatic spent grain out process

  • Automatic variable speed rake system and spent grain plow

  • SEW motor for rake system

  • Laser-cut falst bottom

  • Thickness: inner=3mm; outer=2mm; jacket=1.5mm


Mash/lauter tun


Mash/lauter tun


Kettle/whirlpool tank:


  • Upper and lower steam jackets

  • Tangential wort inlet

  • Fully insulated vessel

  • Stainless steel material

  • SS CIP high low rotary spray ball with 360 of coverage

  • Interior light

  • Tempered glass top manhole

  • Thickness: inner=3mm; outer=2mm; jacket=1.5mm

  • Thermowell assembled with RTD for sensoring the temperature inside the tank


Kettle.whirlpool


Wort pump


  • VFD speed control

  • Stainless steel sanitary pump

  • 3ton/hour


Control cabinet


  • Control the temperature of each brewhouse tank

  • Control on/off of the motors of raker and blender

  • Control on/off of steam solenoid valves


Working platform


  • Made out of stainless steel

  • In accordance with European standard


Heating exchanger


  • 1 stage or 2-stage type

  • Connected with sight glass, Venturi pipes, etc...

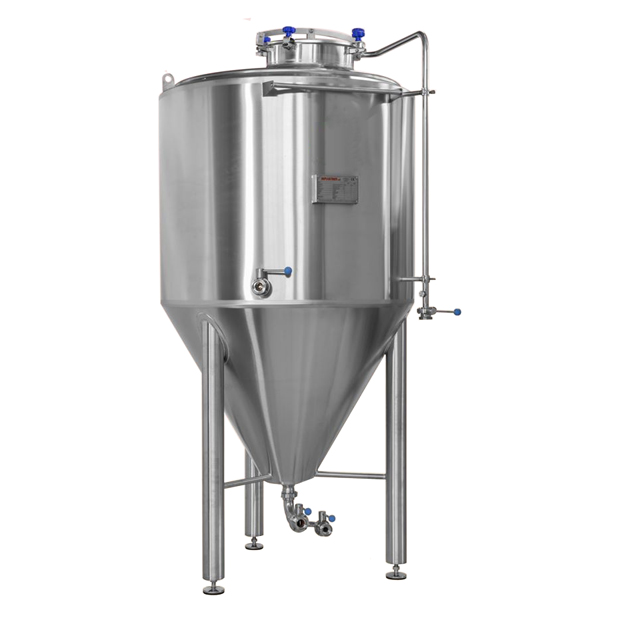

Beer fermentation tank of 1000L brewery system


  • 100% TIG welded with sanitary polished

  • 4 pcs of heavy duty stainless steel legs with leveling footpads

  • Thickness: inner=3mm; outer=2mm; jacket=1.5mm

  • Design pressure: 0.3MPa

  • Working pressure: 0.15-0.2MPa

  • Dual zone cooling jackets

  • Interior (2B) and exterior finish bright polish, sanitary surface

  • Tri clamp sanitary fittings

  • Pressure relief & vacuum valve

  • Dry hopping hole

  • Pressure gauge

  • Pressure bunging device

  • Side manhole

  • Temperature sensor

  • Thermowell with RTD sensor

  • Sample valve

  • Racking arm

  • Drain with butterfly valves

2000L fermenter_副本 (2)_副本-min


Certificates


Certificates

Our company has obtained CE ISO TUV certificate for our brewery systems


Why choose us


  • Our company’s advantages

We have a modernized standard factory and employ more than 100 employees. Our company is a high-tech enterprise which combines design, developing, selling and after-sale service as a whole.

  • Our company’s quality certification

We have got CE, PED, UL,ISO9001 (2008) and SGS certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.

  • Our company’s customer

Our customer segmentation is mainly focused on the Euramerican developed countries such as the USA, Canada, the United Kingdom, Australia and Russia, etc.

  • Choose us and get more benefits

Deliver innovative products in the market at a faster pace;Enhance the reliability of product’s quality;Decrease the total cost of the product effectively; Improve research personnel’s ability of creative design.


Customers reference


customers


customers


Where you can use the 1000L brewery system
