DGET-500L
DGET
8438400000
The change in brewhouses means much less manual labor for our brewers, better wort quality, and increased efficiency. With rakes that push grain out of the mash tun with a grain discharge pump, spent grain will be conveyed out of the building into bins without much effort.

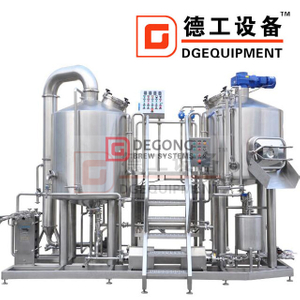

2 vessel brewery with HLT
We design and produce a line of brewing equipment to your specifications. To guarantee breweries’ reliable performance, we use quality stainless steel, fittings, and various parts, depending on our good craftsmanship, deep experience and technology in brewing industry. Especially, we focus on your convenient running breweries, by learning your special specifications and realizing them on the brewing systems.
| Main technical parameters of brewery equipment |
| Brewhouse unit | Mash/Lauter tun | Grain rake with VFD |
| Laser cutting V-wire False Bottom | ||
| Easy clean and detachable sparging spray ring | ||
| Steam Jacket heating | ||
| Boil /whirlpool tun | Steam Jacket on bottom | |
| Steam vent with condensate ring for kettle stack | ||
| Hot liquor tank | Steam Jacket heating |
Two vessels brewhouse on 500 liters includes:
Mash/lauter tun at 650 liters;
kettle/whirlpool tun at 650 liters;
Sanitary pipelines;
Pump for transfering water, mash and wort;
Remote control.
Working platform with stairs

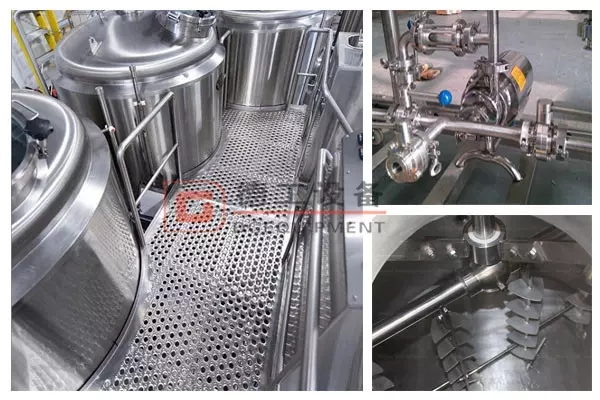

Working platform，pump and raker
The mash lauter tun is equipped with a gear motor with a mash mixer, a steam removal pipe or a flow-through steam condenser, an inspection hatch, lighting inside, a control panel for temperature pauses, two rotating washing balls with connection to a CIP-station.
The kettle is designed for mashing malt infusion method and boiling the wort with hops. If there is an additional mash ketle, mashing is also possible by the decoction mashing techniques. The kettle can also heat or boil water to wash all the equipment of the brewery.
Steam outlet pipe located in a place convenient for the client.
Equipping:
Mash mixer with gearmotor;
Grain raker;
Two rotary washing heads;
Inspection hatch;
Ventilation piping with gate.
Thermal insulation (polyurethane foam).
Filter plate
The kettle/whirlpool tun is equipped with an irrigation circuit for sparging the grains, a gearmotor, an inspection hatch, lighting inside the tun, two rotary washing heads with connection to the CIP-station, and a side hatch for unloading the grain.
Grain removal hatch and steam outlet pipe located in a place convenient for the client.
Equipping:
Sparging system;
Grain unloading hatch;
Two rotary washing heads;
Inspection hatch;
Ventilation piping with gate.
Thermal insulation (polyurethane foam).

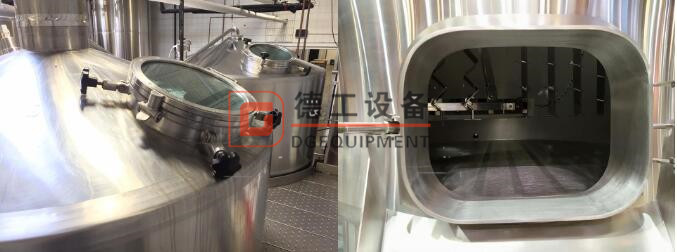

Dish head and spent grains port
Bright beer tanks vertical and horizontal execution.
Vertical beer tanks are designed for temporary reception and storage of beer after filtration before bottling.
Horizontal beer tanks are designed for ripening and natural clarification of beer.
Bright beer tanks have a cooling jacket over the entire height of the cylindrical part. Tanks are warmed by polyurethane foam 70-100mm thick. The external covering of tanks is made of food mirror stainless steel.
Vertical Bright beer tank
Horizontal Bright beer tank in cellar
Horizontal bright beer tank manhole
Tanks equipped with:
top or side inspection sealed hatch;
fermentation bung;
fittings for connecting CIP-station and carbon dioxide baloon;
one rotary washing head for vertical and 2-3 rotary washing head for horizontal execution;
valve for draining washing liquid;
tap for supply wort and beer drain;
sampling valve;
beer temperature sensor;
automatic valve (Italy) coolant supply.
The tanks is designed for internal pressure up to 2 atm (adjusted with a fermentation bung).
| About DGET |
Packing & Shipping of beer brewery equipment:
1. All tanks will be packaged with soft protection material and mounted on strong carbon steel frame
2. All accessories and spare parts will be packaged with separate box.
3. After loaded into containers, all equipments will be well fixed to the containers.
4.Transportation mode: ocean, railway or air transportation.
Service & Guarantee：
1. Free charge for consultation service before, during, and after sales.
2. Our professional engineers and technicians can customize the equipment, and we can provide beer production technology，equipment design, installation and debugging, and personnel training service;
3. Provide 2 years complete warrantee for tanks body and life-time maintenance service; All of the accessories and auxuliaries facilities are guaranteed for one year.
