1000L Professional automatic beer brewing equipment/ beer manufacturing machine supplies

1.The beer brewhouse contains four functions,mash,lauter,boiling and whirlpool.You can combine the functions in two tank or three tank freely.And we usually add a hot liquid tank and cold water tank to improving mashing efficiency.
2.The fermentation vessel is equipped with a separate cooling zone that can be individually controlled and fully insulated. Includes CIP tube and cleaning head. The materials and surface treatment used depend on the intended application and customer specifications.

Material:
Insulation:
Control system:
Electric component:
Heating method:
Quantity:
  • DGET-1000L
  • DGET
  • 8438400000



Specifications of beer brewing equipment


Specifications

Available capacity of 50L to 10000L system

SUS 304/SUS316/Copper clad,Inner Thickness=0.3mm,Outer thickness=0.2mm

Optional heating style of steam, electric and direct fire for brewhouse tanks

Internal 2B finishing, welds polishing to 0.4um

Cylindric and bottom with steam jacket–Max 3 bar pressure ensures 1°C/min heating speed.

PLC control panel with Siemens,Omron,Schenider element,and accord with EU standard

VFD controlled reducer and wort pump

Assembly sanitary rotary spray balls for cleaning

PU insulation,thickness:100mm

Temperature sensor(RTD) in a thermowell

Rake and mash agitator assembly with top/bottom reducer



Component of beer brewing equipment



                                                                               Mill System


01

Mill Machine

1 piece

500-800Kg/h;

Breaker Roll Type; Adjustable mill degree;

Power:2.2kw; Voltage:230V; Model:Fm-011;

Faster Roller Speed: 700rpm

Crushing Particle Size: Adjustable

Ratio of Magnetic Metal Material:≤0.003g/kg

Temperature of Rollers after Production:≤56℃

02

Malt screw  auger

1 piece

Capacity:1000kg-3000kg/h;

Power:1.5Kw;

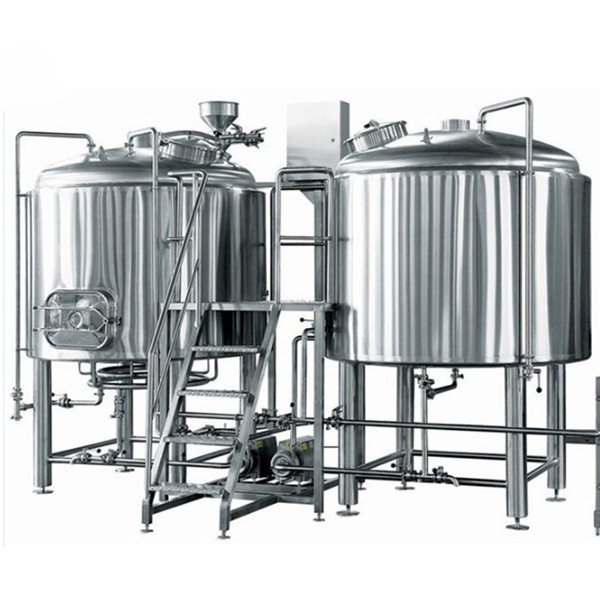

                                                                               Beer brewhouse

Basic information

1.The beer brewhouse contains four functions,mash,lauter,boiling and whirlpool.You can combine the functions in two tank or three tank freely.And we usually add a hot liquid tank and cold water tank to improving mashing efficiency.

2.Heating method,there are electric heating,steam heating and gas heating.For 10bbL beer brewhouse system,we often recommend steam heating.

Technical parameter

Useful capacity:1400L,total capacity:1000L

Heavy duty false botton with pillar support system

Fully insulated vessel

SS CIP High-flow rotary spray ball with 360 degree of coverage

Interior light

Sparge ring assembly

Top mahway(tempered glass)

Side manway for spent grain out

Gap of the sieve is 0.7mm

automatic spent grain removable system

Other component

1.SUS Plate heat exchanger

2.VFD motor of rake/agitator.VFD motor of wort pump

3.Pipelines&valve

4.ABB/Siemens motor

5.Platform

6.Oxygen system

7.Grant

8.Grist&mash in system

9.Yeast feedder

10.Hops filter


                  Beer fermentation tank

Basic information

The fermentation vessel is equipped with a separate cooling zone that can be individually controlled and fully insulated. Includes CIP tube and cleaning head. The materials and surface treatment used depend on the intended application and customer specifications.

Technical parameter

Stainless steel 304 sanitary construction

100% TIG welded and sanitary polished

Design pressure is 0.3MPa,using pressure is 0.15MPa

4 heavy duty stainless steel legs with adjustable height and leveling footpads

Interior:stainless steel 304,thickness 3mm

Interior treatment:Mirror polishing

Outerior:stainless steem 304,thickness 2mm

Jacket:stainless steel 304,thickess 1.5mm

Insulation:100mm Polyurethane

60 degree conical bottom

Heat exchanger area:5.89m2

Side mahole



                                                                  Cleaning system


01

Washing pump

3000l/h

1pc

SS anticorrosion pump, Power0.75KW lift:18m Rev:2880r/min

02

Alkali tank

Useful capacity200L

– 1pc



Inner surface treatment:  welds grinded to Ra 0.6µm.

Material all adopt the international standard of 304 stainless steel, all welding are argon protection single-sided, double-sided forming.



03

Sterilization tank

Useful capacity:200L

– 1pc



Stainless steel304, thickness: 2mm

Inner surface treatment:  welds grinded to Ra 0.6µm.

Material all adopt the international standard of 304 stainless steel, all welding are argon protection single-sided, double-sided forming.



04

Control box

– 1pc

Cabinet Material: Anti-power Plastic painting

Assembling Style: Wall mounted Type

Electrical Components: World wide brand CE

certificated

CIP pump on/off

Heating elecment on/off

Temperature controller for special request

Auto on/off Timer for heating for special request

VFD control for CIP pump for special request



                                                                                                      Cooling system


01

Glycol tank

– 1pc

1.Material: Inner(SUS304),thickness:3.0mm;

Outer:2.0mm(Stainless steel);

2.Insulation: Polyurethane-thickness 100mm.

3.Temperature mode: PT100 temperature probe,temperature transmitting, temperature control panel display

02

Cold water tank

- 1pc

1.Material: Inner(SUS304),thickness: 3.0mm;

2.External-Jacket(SUS 304 thickness: 1.5mm;

3.Cylinder (sharp type, SUS304), thickness: 2.0mm.

4. Inner surface treatment: welds grinded to Ra 0.4µm.

5. Insulation: Polyurethane-thickness 100 mm.

6. Temperature wayDouble metal thermometer

7. Outsourcing surface: Weld polishing processing

8. Jacket Pressure: design pressure 0.3 MPa, working pressure <0.2 MPa.

9.CIP 360 degrees Omni bearing cleaning

03

Refrigerating unit

-1pcs


Medium:Freon R-404A

Working voltage:230V


04

Circulate pump

– 2pcs

 Flow:3 m3/h, Lift:25m, Power:0.75KW;


Control system

01

Mashing control

Manual operate

Instrument

Semi-Auto-control

European standard

Siemens,Schneider,Omron component

1 set



Mixing, rotation, wort pump

02

Fermenting control

Temperature, pressure, lamp

03

Cooling control

Machine unit, pump, temperature

04

Cleaning control

Cleaning pump

05

Miller control



Pictures



1_副本fermenter_副本


DSC_9256副本



 Our equipment shows in customer's brewery



20190703163950605060

20190703164013131313

20190703164077337733

20190703164197319731

Delivery




FAQ


1.Electric power:It can be customized according to customer’s local condition.Such as 220V,230V,380V,430V; 50HZ or 60HZ;3 phases or single phase.



2.Price:Every customer has different requirement,so we need to confirm your requirement first,then give you price.Such as some customer require steam heating,some customer require electric heating;Some customer require 2 vessels brewhouse and some customer require 3 vessels brewhouse;Some customer require top manhole for fermentation tank and some customer require side manhole.So even both 1000L equipment,there price are different.So we need to confirm your detailed requirement first.



3.How to see if your company is trust?

We have sold many equipment to EURO.We can give you our customers contact information,you can listen to their advice or visit their brewery.



4.How should we do if we dont know how to brew beer and install equipment?

We will dispatch engineer to install equipment and teach you how to brew beer freely.


If you have interest,please get in touch with me freely.
