DGET-5BBL
DGET
8438400000
5barrel micro brewery equipment is very popular for restaurant/brewpub/microbrewery.DEGONG 5 Barrel brewing equipment will be designed and manufacturer based on highest Europe standard.We have sold many sets of brewing equipment in Europea,such as Germany,Belgium,Ireland,Sweden,Switzerland,Italy.........All of our electric components is accord with UL certifications,and the whole set of equipment will be accord with TUV certification.

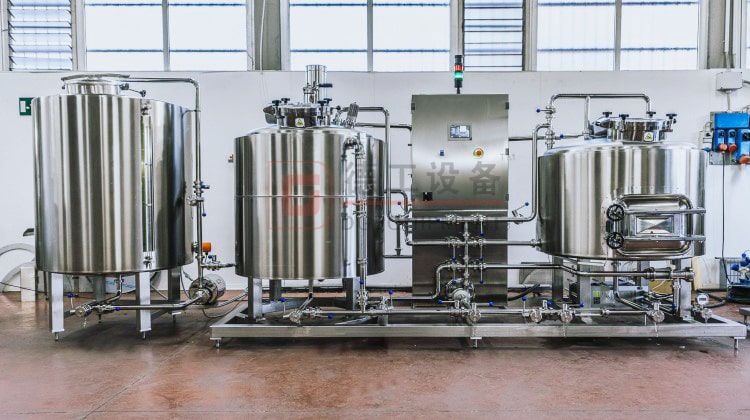

The brewhouse can be combined freely.Let take 2 vessels brewhouseas a reference.
5 bbl mash/lauter tun is a necessary addition to any 5 bbl brewing system. Mash/lauter Tuns are essential to the fermentation process and are where the complex starches are converted into fermentable sugars.

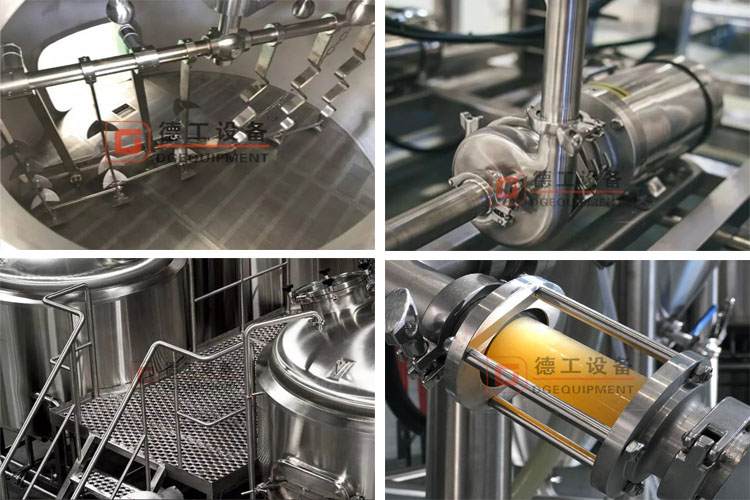

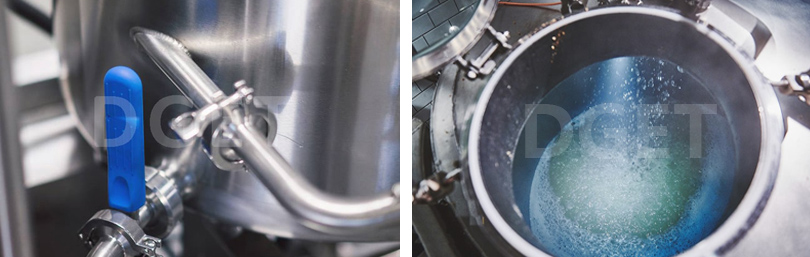

This 5 bbl insulated mash/lauter tun will help the brewer maintain a constant, even, mash temperature. The RAKES are used for better efficiency and ease of use, and the PLOW will help empty the mash tun by scraping the grains out of the side manway. The built in clean in place system (CIP spray ball) and rectangular manway will make this stainless insulated mash tun very easy to clean.
5bbl brew kettles/whirlpool tank are designed with enough capacity to allow for head space for foaming, evaporation, and shrinkage due to cooling. This 5 bbl brew kettle has the ability to both boiling and whirlpool, which will free up valuable floor space in your brewery and will save you money on brewing equipment. Conveniently sized, it does not need a platform, and is wide enough to accommodate 5 bbl and still be operational from the floor for an average sized person.
Normal construction of brewhouse
TWO VESSELS
| Mash/lauter tank+boiling/whirlpool | Two tank combination brewhouse can save much cost and space, which is usually built up in nano brewery and brewpub. The brewers can at least brew two batches in a workday.
|
THREE VESSELS
| Mash Tun, Lauter, Kettle/Whirlpool or Mash/Lauter Tank, Kettle, Whirlpool tun | Three vessel brewhouse will have higher brewing efficiency, with optional steam and electric heating, which can brew 2-4 batch beers per day. Usually applying to middle micro breweries.
|
FOUR VESSELS
| Mash tank, Lauter Tun, Brew Kettle, Whirlpool tun
| The advantage of a four vessel brewhouse is can maximize the brew efficiency of brew equipment, each brewing step can realize in a single tank. A brewer can brew six batches per day.
|
HLT and CLT Option: With or Without | ||
Features:
Standard features include:
304 SS or 316LSS or copper.
30% head space at least for each tank
Motorized mash mixers, lauter rakes and spent-grain plow
ABB Siemens motors/pumps on the whole system
Stainless steel process piping, work cabinet and control cabinet
Siemens/Schneider/Omron electric element
Grirst hydrator bowl with hot/cold liquor blending
Sight level indicators on fermenting system.
Insulated with a minimum of 100mm Chloride-Free PU Insulation.
Interior Finish: Overall polishing to 0.4 μm without dead corner
Adjustable Levelers provide a level tank regardless of floor slope;
Optional items include:
Wort grants
Dual-stage heat exchangers
Wort oxygenation assembly with wight glass
Hop backs
Flow meters/totalizers
Full skid mounting.
Delivery&Packing
Wooden packing or Frame Packing to avoid demaging during transportation
Service
After delivering the equipments to our customers, Degong will arrange special worker to do the track service,because we set up the marketing department for specially dealing with the feedback of customers for providing the satisfied service. Once Degong gets the feedback from customers, we will do our best to deal with it for you.
Certification
Contact us
Why choose us:
1.Always delivery in time
2.Guarantee is 3 years
3.Install equipment freely
4.Real food grade SUS 304
5.Promise good pre service and after service
