1000L Fresh Bright/gravity Beer Produce Equipment Craft Complete Beer Brewery for Commercial Used

DEGONG 1000L beer brewing equipment is one of the most popular models.The brewing system can be used to make different kinds of beer, such as bright beer or dark beer, ale or lager...The brewery equipment can be designed according to the different needs of customers, such as heating method,mashing system tanks' combination.

1000L model is popular because its production scale can be adjusted according to the number of tanks, which is applicable to a large range. Many public places(such as bars )and small or medium-sized breweries choose to use 1000L equipment

Miller system

• Miller


• Malt screw auger

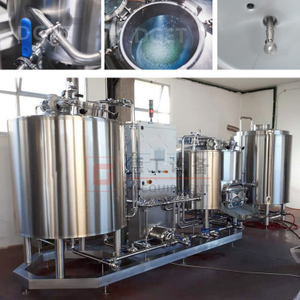

Beer brewhouse

1.Material:Inner(SUS304),thickness:3.0mm; Out(SUS304),thinckness:2.0mm;

2. External-Jacket(SUS 304 thickness: 2.0mm;

3. Cylinder (sharp type, SUS304), thickness: 3.0mm.

4. Inner surface treatment: welds grinded to Ra 0.4µm without dead corner.

5. 100% TIG welding with pure argon gas shield

6.  Insulation: Polyurethane-thickness 80 mm.

7. Dished top and conical bottom

8. Glass top manhole

9. Temperature way：Double metal thermometer

10. Outsourcing surface: Weld polishing processing

11. Jacket Pressure: design pressure 0.3 MPa, working pressure <0.2 MPa.

12. Top mounted 360° coverage CIP spraying ball and port

TC Easy clean

13. Stainless steel laser cutting False Bottom/Filter

14. Thermo well for high accuracy temperature sensor

15. 4pcs completely SUS304 heavy duty legs with leveling

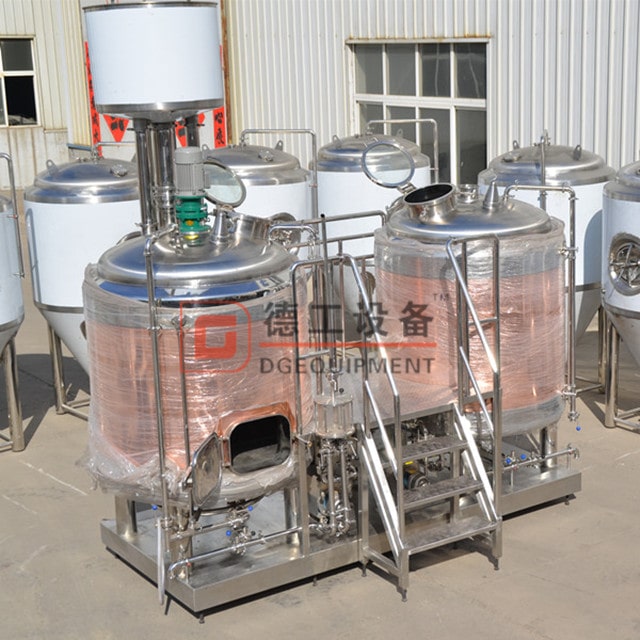

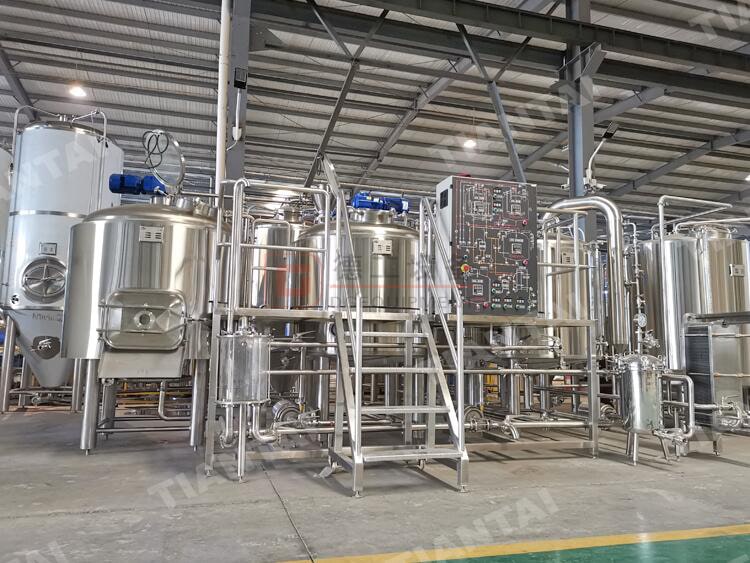

3 vessels beer brewhouse:Mash/lauter tank+Boiling/whirlpool tank+hot liquid tank

Component

• Beer Brewing tanks(2-vessels,3-vessels,4-vessels)


• Wort pump&Hot water pump:VFD Control,Siemens Brand

• Plate heat exchanger(Chiller),One stage or two stage(Customized)

• External wort Grant

• Wort aeration assembly

• Hops filter

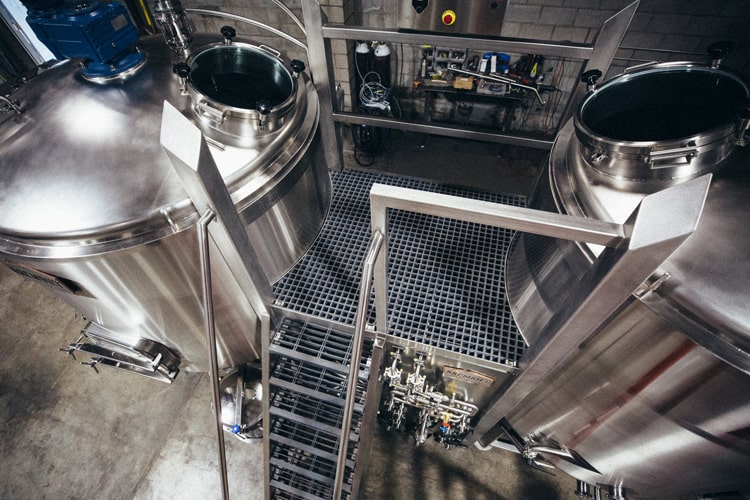

• Operation platform

Mash&Lauter

Fermentation tank

1. Material Inner (SUS304)thickness: 3.0mm; Outer(SUS304)thickness:2.0mm

2. External-Jacket(SUS304) thickness: 1.5mm;

3. Oval head cone bottom, thickness: 3.0mm.

4. Heat exchange area：2.75㎡

5. Equipment with : cone 60°resist compression design，dripping

6. 100% TIG welding with pure argon gas shield

7. Interior Finish: Sanitary 2B finish, Pickled and Passivity; (8K Mirror finish optional)

8. Exterior Finish: Oil brushed finish（2B, 8K Mirror finish optional)

9. Interior full polished to 0.2~0.4 μm without dead corner

10. Insulated with high density Polyurethane foam 100mm

Stainless steel beer fermentaiton tank-Unitank

Features:

• Stringent tank leakage test by water and pressured gas

• Stringent Jacket leakage test by water and pressured gas

• Sanitary top mounted manway

• TC connected CIP arm with 360° coverage spraying ball

• Mechinical regulation valves on CIP arm


• Full sanitary metallic sealed sampling valve

• Mechanical safe valve PVRV 2 bar on top

• Hydraulic shock pressure gauge on CIP arm

• Rotating racking arm and port on cone with butterfly valve

• Tri clamp discharge arm with butterfly valve

• Thermowell for high accuracy temperature sensor

• 4pcs completely SUS304 heavy duty legs with leveling

• pad and legs support

• Complete valves, fittings and all parts

• Dry hopping port 4'' TC with solid end cap

• Sanitary level tube and valves TC for special request

Carbonation stone&Breathing valve&Sample valve&Temperature sensor,,,,,,ect

Cooling System

The cooling system is vital for the production of beer; it controls the Fermentation environment and keep the temperature ideal for yeast throughout the process of conversation of sugar into alcohol. The Refrigeration system is the key system within the fermentation section because it helps regulate and maintain the temperatures of the product during fermentation when heat is released as by product of the fermentation process.

• Glycol water tank

• Cold water tank

• Refrigeration unit

• Circulate pump

CIP System

CIP Unit is specifically designed for cleaning of system. The system is employed to clean and sanitize all the brewery equipment including brew house, fermentation tanks and bright beer tanks using specially engineered CIP Spray balls for optimum cleaning of internal surface. To optimize processes and ensure perfect cleaning, we connect CIP unit to the automatic control.

• Sterilization tank

• Acid tank

• Pump

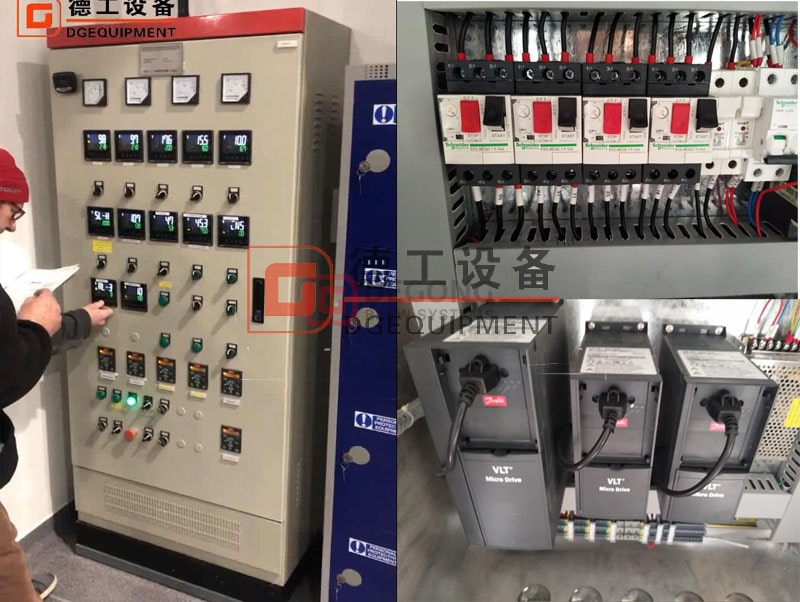

Control System

Automated Brewery System has perpetually been a combination of each client requirement, so what if we can automate the process a bit more? Choose between semi-automatic and fully automatic control. The principle here is: the bigger the brewery, the higher the level of automation. Our control is based on the Siemens programmable logic controller and guarantees extremely simple operation. This is controlled via a touch screen.

• German TUV Certification Control Cabinet

• European standard

• Siemens,Schneider,Omron component

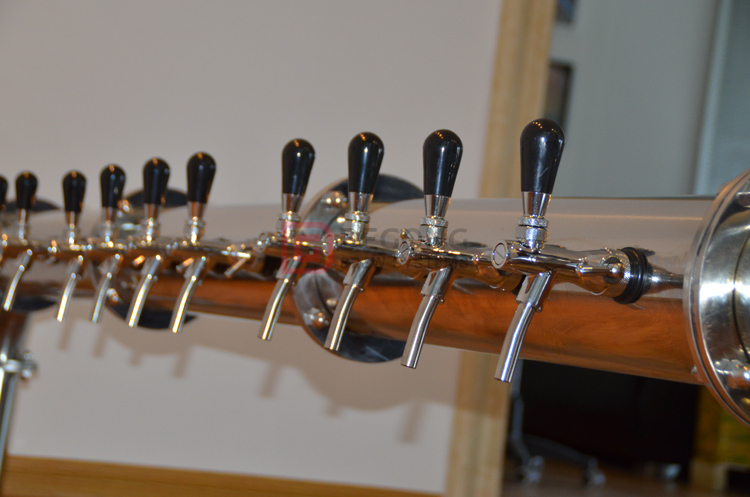

Dispensing Equipments

 Dispensing heads are available in a variety of finishes, with tower designs ranging from traditional to custom creations, there’s a style to fit virtually every decor and dispensing need

Wooden packing or Frame Packing to avoid demaging during transportation

After delivering the equipments to our customers, Degong will arrange special worker to do the track service,because we set up the marketing department for specially dealing with the feedback of customers for providing the satisfied service. Once Degong gets the feedback from customers, we will do our best to deal with it for you.

Why choose us:

1.Always delivery in time

2.Guarantee is 3 years

3.Install equipment freely

4.Real food grade SUS 304

5.Promise good pre service and after service
