DGET-300L
DGET
8438400000
DEGONG Equipment Technology Co.,Ltd is a professional beer brewing manufacturer,which is proudly designed and built at our facility. From concept to completion you can count on our exceptional services to make your dream brewery reality!

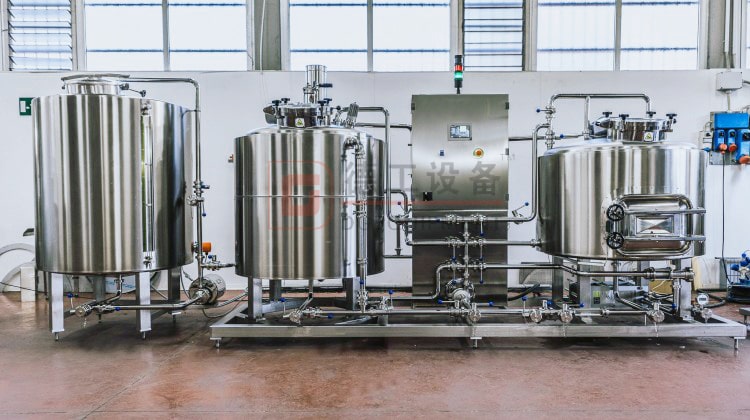

Introduction of 300L beer mashing system/brewhouse
The 3bbl brewing system is very popular for home brewing equipment or small brewpub/restaurant/hotel.The brewhouse assembly consists of two main vessels, a frame, staircase, service platform, railing, control panel, wort cooler as well as mash, wort and hot water pumps, a mash agitator and rake arms. Different technological parts of the brewhouse are linked by stainless steel piping and all the necessary valves, servo drives, low meters, safety valves, sight glasses, lighting, etc.
Component of the 300L brewhouse
Mash Tun/Lauter Tank
32” inner diameter all stainless steel T-304 construction, dished top and bottom.
Fully TIG welded assembly. Internal welds are smoothed with external welds acid cleaned and re-grained. External welds are stripe buffed.
Internal mash grid assembly with (4) wedge wire removable screens for ease of cleaning.
sealed access door.
sealed top man door access.
Thermo-well installed with RTD for measuring temperature in Mash / Lauter Tun
Fully welded steam jacket with rear exit protruding steam/condensate nipples on main body(If steam heating)
Brew Kettle/ Whirlpool Assembly:
32” inner diameter all stainless steel T-304 construction, dished top and bottom.
sealed top man door access.
2” mineral wool insulation with 14 gauge polished stainless steel outer shell.
8” diameter steam flue slip flange with condensation gutter and drain port.
Fully TIG welded assembly. Internal welds are smoothed with external welds acid cleaned and re-grained. External welds are stripe buffed.
Fully welded steam jackets with rear exit protruding steam/condensate nipples(If steam heating).
Thermowell installed with RTD for measuring temperature in Brew Kettle.
Other necessary items:
Hot liquid tank:Normal double :size of brewhouse(Optional)
Pumps: Lautering pump and whirlpooling/castout pump of VFD, HL pump
Piping: Tri-Clamp or DIN standard pre-built
Heat exchanger: 2-step or 1 step, with fittings such as thermometers, venturi aeration unit, etc
Brewhouse control: VFD, switches etc, Automatic Temp. control, etc
Platform:European standards
Rarker&VFD Siemens pump&Platform&sight glass

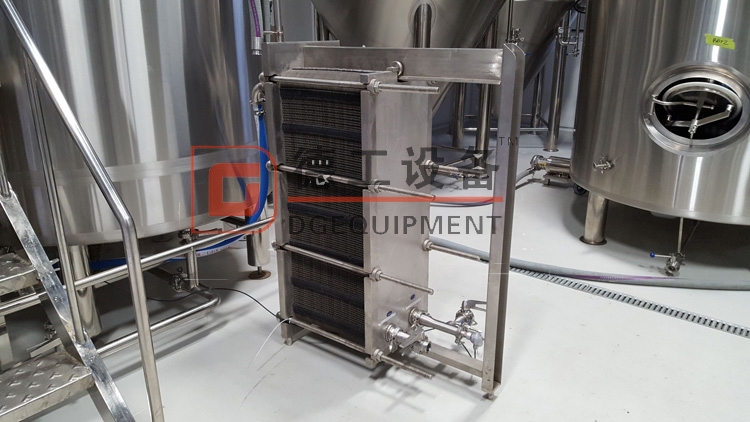

Plate heat exchanger
Mashing&lautering
Delivery&Packing
We will choose Wooden case to protect the equipment from being damaged in transit.If the equipment's height exceed the container's height,we will put down the equipment and fix it by iron frame.
Service
1.Design suitable brewing system and system's connection layout accrodging to customer's brewery.
2.Dispatch technical engineer to customer's country to install equipment
3.Debug the brewing equipment after installation
4.Teach customer how to use the machine and how to brew beer
Why choose us
1.Use the stainless steel plate made by the Chinese best-known stainless steel manufacturing enterprise, quality of steel plate is approved by Chinese testing organizations.
2. Use the Chinese famous brand YUANAN pump (ABB motor), use the wrold famous brand SIEMENS motor, ABB SIEMENS are both the world famous companies. Quality is guaranteed.
3. CIP tank with Insulation is more safe, which can prevent workers from being scalded.Take automatic temperature controlling system to control temperature, self powering off system prevents electric heating coil from dry heating.
4. Control system uses electric appliances of world famous brand, Schneider, Omron, Danfoss frequency converter ensure the stable runing of the whole system.
5. steam solenoid valve, solenoid valves for fermenters take first or second class brand of Chinese to ensure the stability of brewing and fermentation system
6. Warranty period 3 years
