5 Barrel 5BBL Stainless Steel Electric Mash Brew Kettle Micro Brewery Beer Brewing Equipment for Sale

DEGONG design and manufacture complete beer brewing equipment, all brewing systems can be designed according to customer’s requirement.We also can recommend a best brewing system to the customers who don't know much about the beer industry based on their brewing plan.

Thickness of material (mm):
Insulation:
Heating method:
Construction:
Material:
Quantity:
  • DGET- 5BBL
  • DGET
  • 8438400000


Although there is no fixed configuration for beer brewing equipment, the six  basic systems are basically the same: malt crusher,beer mashing system, fermentation system, cooling system, control system, and cleaning system. But each customer's specific configuration of each system is different.

QQ图片20180314134103 750-min


Beer mashing system: among all the systems,the configuration of beer mashing system is the most different. One hundred customers may have one hundred different requirements. The beer mashing system is composed of four functions, namely: mash, lauter, boiling and whirlpool. These four functions can be completed in different single tank or combined into 2 or 3 tanks,so we have 2/3/4 vessels beer mashing system.

Beer mashing is a process that requires heating. This process can be achieved by electric heating, gas heating or steam heating. Customers can choose the appropriate heating method according to their specific conditions.

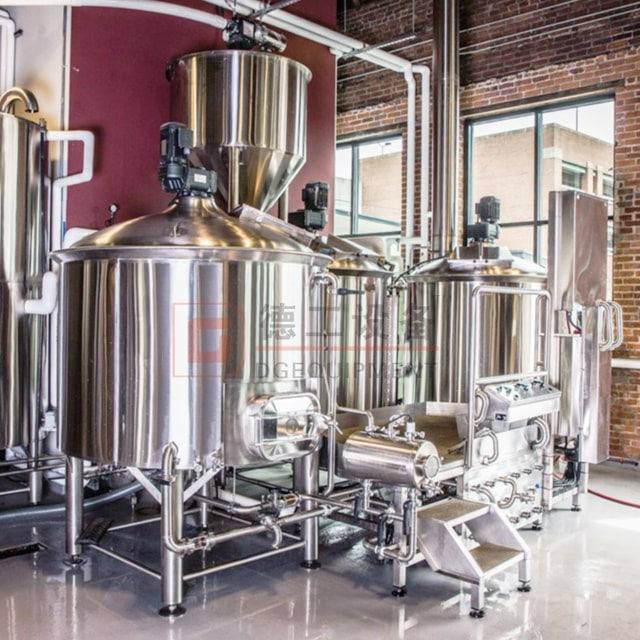

5BBL Beer mashing system


Fermentation system: some customers only need fermentation tanks, while some customers also need bright beer tanks for later storage and maturation. The quantity requested by each customer is different.

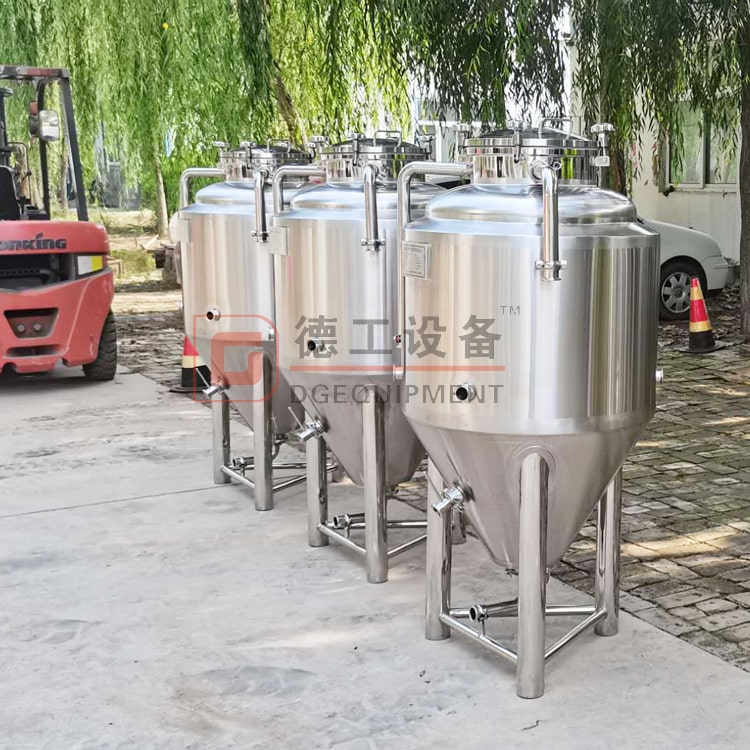

5BBL beer fermenter


Malt crusher: the requirement is that the malt should be crushed within half an hour.  The required raw materials are different according to different beer brewing methods,, so we will configure it according to the specific requirements of customers.

Cooling system&CIP system&control system: CIP and control cabinet are determined according to the mashing system and fermentation system. We generally determine the configuration of the mashing system and the number of fermentation tanks, and then we can recommend the appropriate cooling system, CIP and control cabinets.

未标题-1-min


The whole set brewing equipment component

System

Components

Capacity

Specification

Milling System

Miller

300-500 KG/H

Double Roller,Noise<60db

Brewhouse System

Mash/Lauter tun

5BBL

Mashing Process:Decoction.Infusion.Multi-step infusion
Heating source:Steam,Electric,Gas
SUS304/Red copper

Remarks: For smaller pub brewery equipment, we offer Combination 2-vessel brewhouse:

Mash/Kettle + Lauter tun/Whirlpool Combined.

Brew Kettle/
Whirlpool Tank

5BBL

Hot Water Tank

10BBL

Heat exchanger

7 SQM

Stainless steel plate

Fermentation System



Fermentation Tank

5BBL / 10BBL

Top manway/Side manway
Drying hop port to brew IPA
Dimple Plate Cooling jacket
Carbonation port to fill CO2

All necessary accessories on tank’s body,including breathing valve,Cleaning ball,sample valve,temperature sensor,pressure gauge,mechanical regulation valve

Bright beer tank

5BBL / 10BBL

Cooling System

Glycol Water tank

According to quantity of fermentation tank

Equiped with PU level indicator

Chiller

According to glycol water tank

UL/CE certified electric elements,Copeland compressor

Pump

3T


Cleaning System

Sterilization Tank

100L

SUS304 full welded

Alkali Tank

100L

Pump

3T

Control System

Control Cabinet

PID / PLC

Manual/Semi-automatic/Automatic

Optional

Auger System

Grain Case

Grist Hydrator

Piping flow panel for Brewhouse



PS: All the specifications can be customized according to your requests.If you have to know more details,welcome to contact me freely
