| Thickness of material (mm): | |
|---|---|
| Insulation: | |
| Matrial: | |
| Control panel: | |
| Conical bottom: | |
| Quantity: | |
DGET-1000L 2000l 4000L
DGET
8438400000
Carbonating a full batch of beer with a carbonating stone in a brite tank provides for much quicker carbonation. The carbonating stone increases the surface area contact with the beer by producing tiny bubbles of CO2, which are more easily absorbed into the beer.

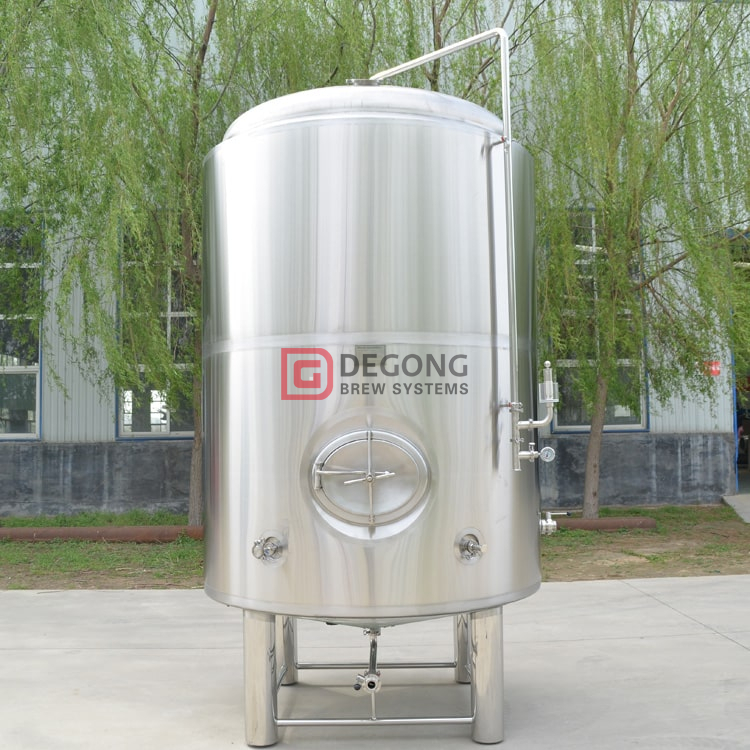

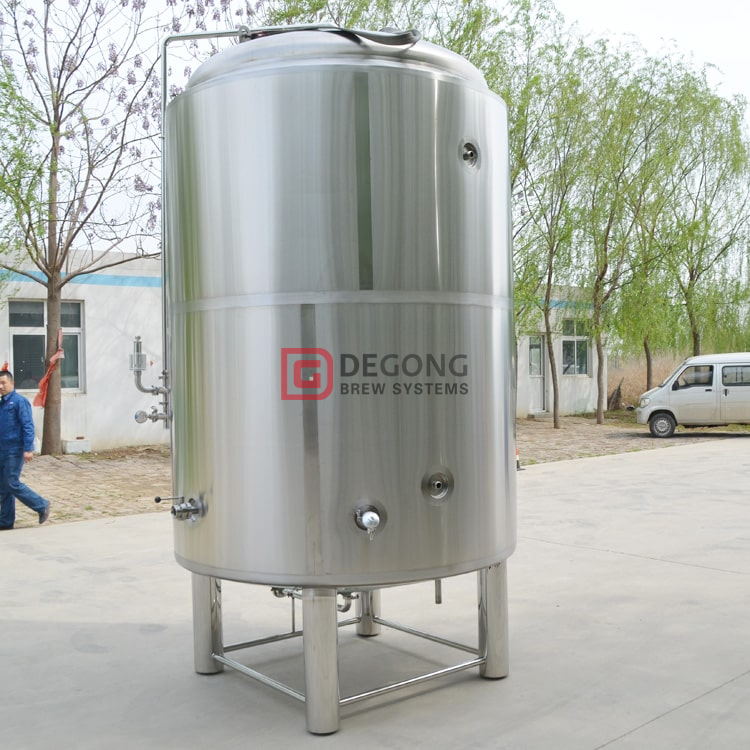

Bright beer tank/beer storage tank/beer service tank/BBT
| What is a Bright beer tank |
BBT Often called a “brite” beer tank, serving tank or secondary tank, a bright tank is the vessel in which beer is placed after primary fermentation and filtering, so it can further mature, clarify and carbonate, as well as be stored for kegging, bottling, canning and packaging.
| Main features of bright beer tank |
Inner Shell: 3mm, 304 Stainless Steel
Outer Shell: 2mm,304 Stainless Steel
Inner shell design pressure 29PSI(2bar), testing pressure 29PSI(2bar), designed to suit all types of craft breweries.
Inner cooling jacket design pressure 29psi (2 bar).
25% headspace
Minimum 3 inch Thermal Polyurethane Insulation with both cone and shell coolant jackets.
Chloride ion barrier paint on the out surface of the inner shell to prevent any potential corrosion to ensure longevity.
Tank inner side is polished within 0.6µm sanitary finish.
Tank outside is 2B stainless steel plate(optional brushed stainless, #4 finish).
Shell and bottom cone cooling jacket for better temperature control.
Pillow Plate on shell body and cone; Omega laser welded and inflated.
Hook outside on the shell for ladders.
Other customization possibly available upon request.
Main Components of bright beer tank |

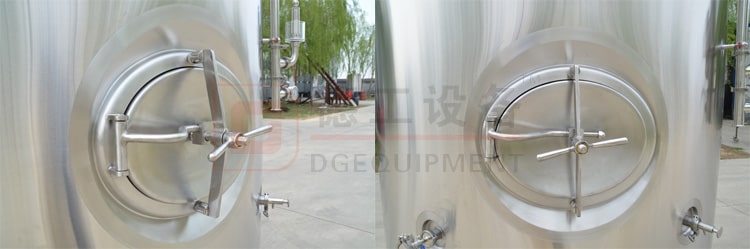

Manhole on the top head or side (standard).
Level Indicator (standard) for inner tank.
Vacuum/Pressure combined valve. Tank top fittings, pressure gauge.
Pressure keeping valve with sight glass for controlling and monitoring fermenting process.
Built in rotary spray ball within the inner tank for cleaning.
Sanitary sampling valve, with the shortest connection on the tank, easily CIP cleanable.
Manual ball valve for easy glycol changing over thus temperature control.
Racking arm for beer out on the cone
Other customization possible upon request.(such as carbonation stone,hops adding hole or others)

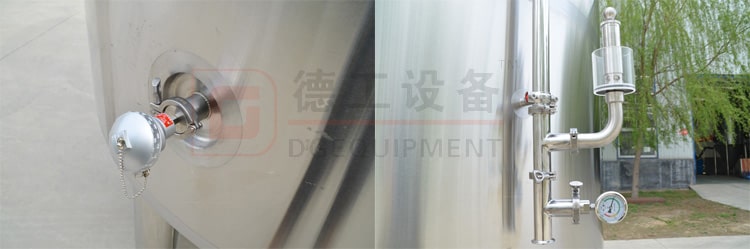

thermometer&pressure gauge&mechinery regulating valve
Carbonation stone&sample valve

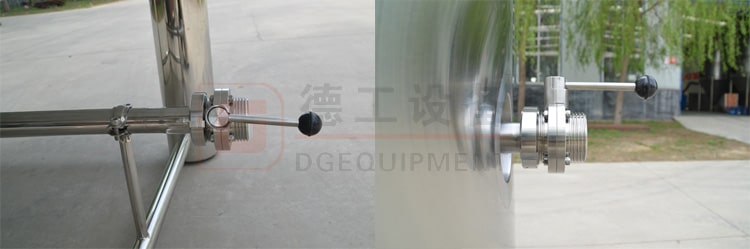

DIN VALVE
| Engineer install equipment and teach how to brew |
| Delivery&Packing |
The packing will be wooden case or iron frame according to the LCL OR FCL,to asure the tanks will not be destroyed during shipment.
| Contact us |
If you want to know more knowledge about beer brewing or you want to buy beer equipment,welcome to get in touch with me.
