20BBL 2500L Commerical Use High Automation Professional Large Brewery Equipment for Wheat/barley/sorghum Beer

DEGONG is a professional beer brewing equipment manufacturer,which can provide best brewing equipment with most suitable price and highest quality.The price of the brewery equipment is related to many factors,such as capacity,configuration,quantity......DEGONG can give you the most professnional suggestions combined with your budget and output plan,and help you to choose a best complete beer brewing system.
Thickness of material (mm):
Insulation:
Heating method:
Construction:
Material:
Quantity:
  • DGET- 2500L 20BBL
  • DGET
  • 8438400000


DEGONG is a professional beer brewing equipment manufacturer,which can provide best brewing equipment with most suitable price and highest quality.The price of the brewery equipment is related to many factors,such as capacity,configuration,quantity......DEGONG can give you the most professnional suggestions combined with your budget and output plan,and help you to choose a best complete beer brewing system.


20BBL beer brewing equipment standard configuration


Combined 3-Vessels Brewhouse System:
1*20BBL Mash/Lauter Tun

1*20BBL Whirlpool Tun

1*20BBL Kettle Tun

1*40BBL Hot Liquor Tank

2*3T wort pumps

1*30m2 plate heat exchanger

1*Hops filter

1*Aeration device

1*External wort grant (optional)

1*Brew kettle condensate collector (optional)

1*Grist case/hopper (optional)

1*Hop back (optional)



Glycol Jacketed Conical Fermentation Tank:
20BBL Fermentation Tank(Quantity is customized)

20BBL Bright beer tank(Quantity is customized)


Cooling Unit:

Glycol Water Tank(customized according to detailed configuration)

Chiller(customized according to detailed configuration)

Centrifugal Pump


Controlling Unit:
Brewery Instrumental Control Cabinet(PLC or PID,Automatic or Semi-auto)

Cleaning Unit:
Portable CIP Cart



Milling Unit:

800kg/h Malt miller

Flexible auger

Grain silo(Optional)



Other auxiliary system:

Bottling line

Canning line

Diatomite Filter

Water treatment device

Pasteurization machine

Keg filling machine&keg washing machine


750 套图2-min2


750 FV 细节-min



DEGONG Brewing equipment feature


1.Material:Inner(SUS304),thickness:3.0mm; Jacket(SUS304),thicknes:2.0mm

2. Out(SUS304),thinckness:2.0mm;

3. 25%-30% head space

4. Inner surface treatment: welds grinded to Ra 0.4µm without dead corner.

5. 100% TIG welding with pure argon gas shield

6. Insulation: Polyurethane-thickness 100 mm.

7. Dished top and conical bottom

8.Temperature way:Double metal thermometer

9. Outsourcing surface: Weld polishing processing

10.Top mounted 360° coverage CIP spraying ball and port

11. Thermo well for high accuracy temperature sensor

12. 4pcs completely SUS304 heavy duty legs with leveling

13.Design Pressure:0.3mpa,Working pressure:0.15mpa

14.Dual/triple dimple jackets provide high heating efficiency

15.SS304 sanitary hard pipe, butterfly valves, fittings

16.VFD control pumps,motor

17.Electronic components are Siemens,Omron,Schneider,Danfoss brand

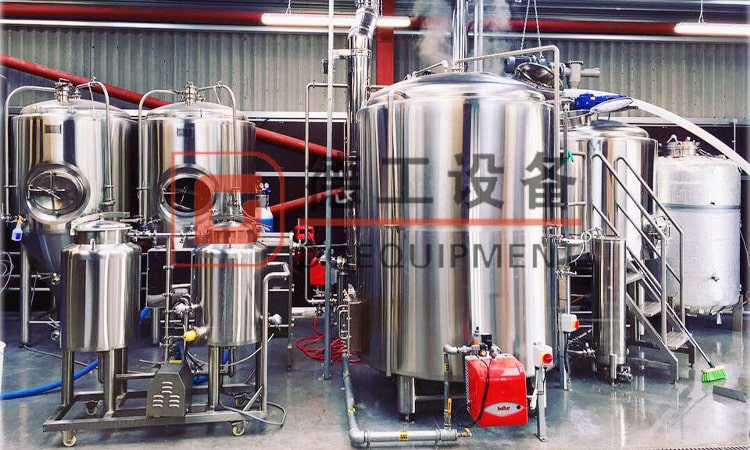

750 套图 -min2

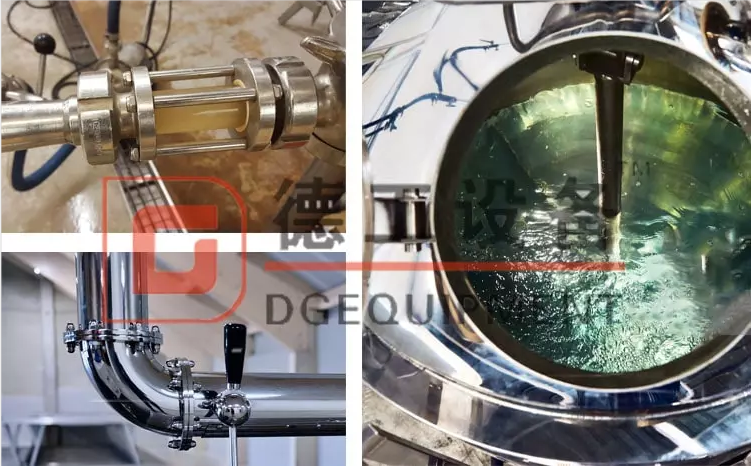

QQ截图20200810170937


Contact information



company introduction_副本-min


Weather you want to brew craft beer or brew commercial/industrial beer,weather you want to start a new beer brewery project or expand your brewing scale.No matter what you want to brew lager or ale, stout beer or light beer,barley beer or wheat beer,fruit beer or corn beer,low concentration beer or high concentration beer....DEGONG brewing equipment always can meet your requirement.



If you want to know more details,welcome to contact me.
