3BBL Small Scale Electric Heating Beer Brewing System Mirco Brewery Equipment

Beer mashing is one of the most important processes in wort preparation.During mashing, the water is thoroughly mixed with the malt.Under the action of various enzymes, the soluble substance in malt was completely leached out, and the wort was fermented into beer under the action of fermentation.

Thickness of material (mm):
output:
Material:
Heating method:
Insulation:
Quantity:
  • DGET-3BBL
  • DEGONG
  • 8438400000

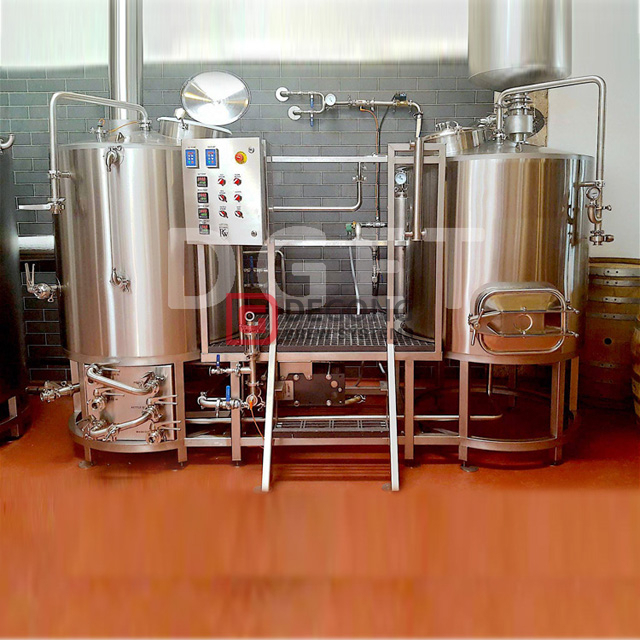

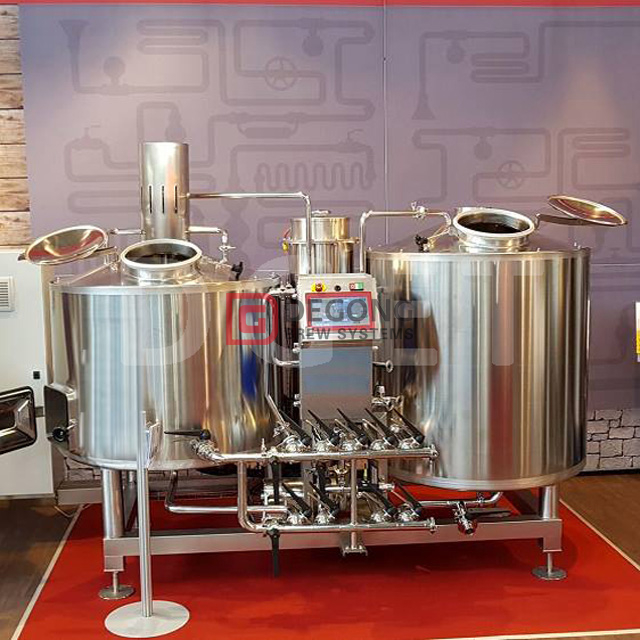

Beer mashing system introduction


Beer mashing is one of the most important processes in wort preparation.During mashing, the water is thoroughly mixed with the malt.Under the action of various enzymes, the soluble substance in malt was completely leached out, and the wort was fermented into beer under the action of fermentation.

Electric supply:3phase/380(220, 415,440…)v/50 (60)HZ

Single Phase/ 220(110, 240…)v/50(60)Hz;Customized

Component:Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination

Hot water tank and cold water tank for optional in special combinations

Heating method:electric heating,direct fire heating and steam heating.

Material:Stainless steel are popular because of easy maintenance and clean, copper cladding for optional

Other items:Steam/gas/diesel steam boiler,VFD pump,Siemens control panel, flex grist auger,Plate heat exchanger,Oxygen system,pipes,platform


3


Features of mash sytem:

Interior Finish: Overall polishing to 0.4~0.6 μm without dead corner

Heavy duty false bottom with 0.7mm gap of the sieve

SS CIP High-flow rotary spray ball with 360 degree of coverage

Sparge arm assembly

Grist hydrator

Raker with VFD motor in Lauter tank

Agitator with VFD motor in boiling tank


1560631_1563848597260423_2964591005416908677_n

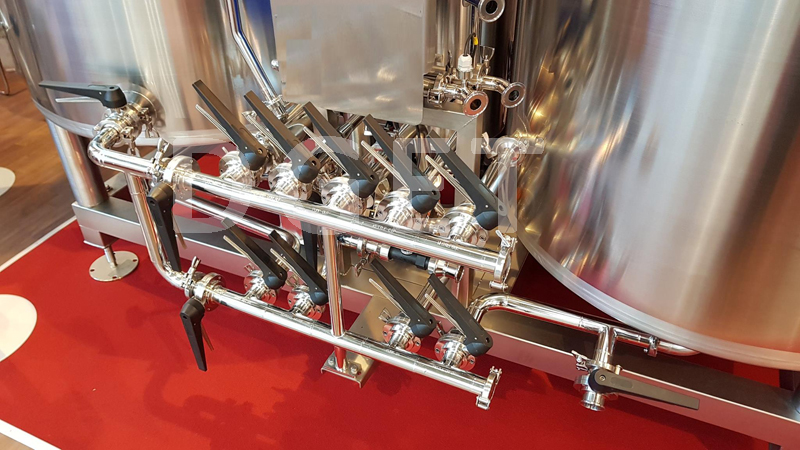

21753208_139229753353492_2412993955010490335_o

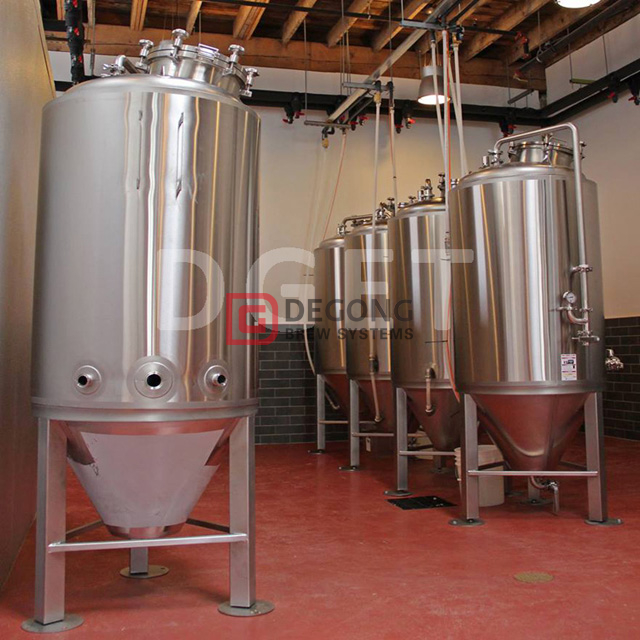

Fermentation tank introduction

Fermentation tanks, or more commonly fermenters, are key components in beer brewing.Fermenters are specialized tanks designed to precisely control temperature and maintain the optimal conditions for fermentation, which occurs once the wort has been transferred from the brewhouse to the fermenter; a conical-bottom design is highly recommended for fermenters allowing for easier yeast harvesting.


ggggtgww


Features of fermentation tank

•Inner:SS304.TH=3.0mm      Outer:SS304.TH=2.0mm

•Vessel Pressure: 1.5 bar / 3.0 bar

•Insulation: Polyurethane-thickness100 mm.

•Interior Finish: Overall polishing to 0.4~0.6 μm without dead corner

•Full sanitary sampling valve

•Breathing valve on the top of tank

•Mechanical relief valve 2 bar on CIP arm

•Shockproof pressure gauge on CIP arm

•Dry hopping port with solid end cap

•Thermowell for high accuracy temperature sensor

•Raking arm

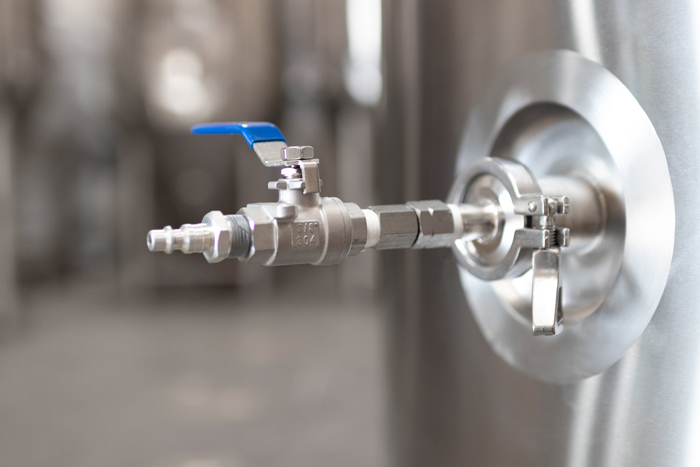

•carbonation stone

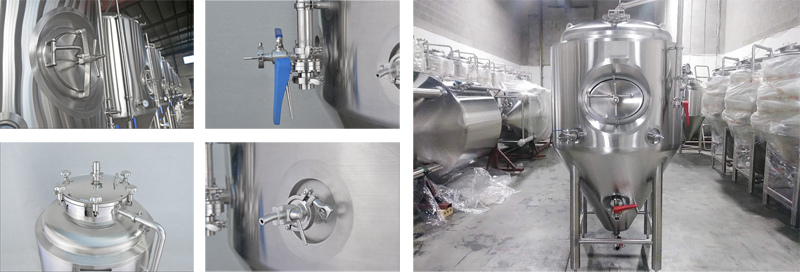

未标661

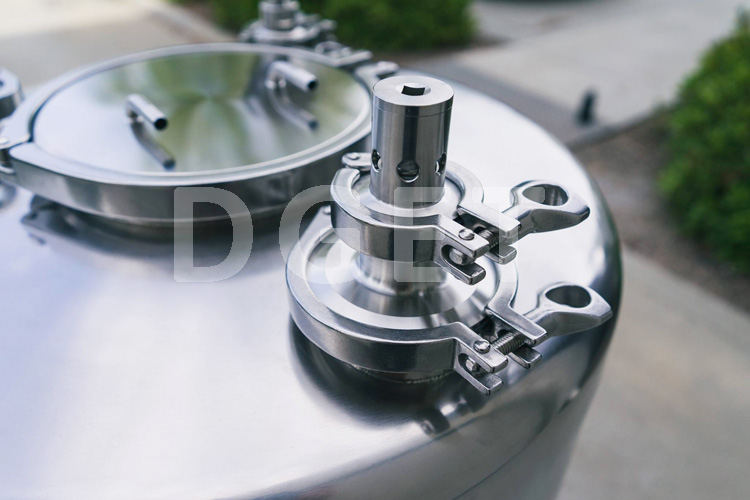

18152113_o


Carb+Stone1


Company

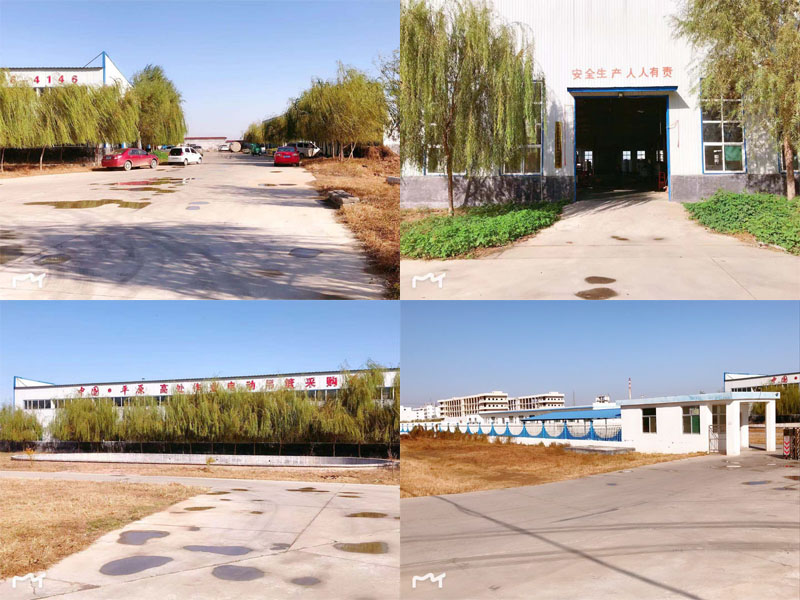

工厂1

Factory

renzheng

CE&TUV&ISO



WHY Choose us


HEAT CONTROL: Our commercial grade stainless steel brewing systems for sale provide the ability to control heat from 0 to 100% (either in 1% increments on our Advanced panel, or infinitely adjustable with the dial on our basic panels.

SAFETY: We provide GFCI breakers that meet the NEC requirements for protection of human life on each element circuit for safety and better reliability in a wet brewery environment.

EASY TO CLEAN: Our systems have sanitary construction with food grade valves, sanitary welds and tri clamp fittings. Spend less time cleaning, and more time brewing delicious brew.

DURABILITY: Our brewing systems are engineered to commercial standards and are built to last.

WORT PROTECTION: Our Ultra-Low watt density elements, plus our ability to lower the element's power (which makes the watt density proportionally lower with our 0-100% adjustment), there is no scorching or off flavors.

LOW COST TO VENT THE STEAM:With our stainless steel commercial grade brew kettles, you use a low cost condensate stack or steam condenser to vent the steam. Steam MUST be properly ventilated to avoid serious mold and potential health safety issues in your building.
