DEGT-2500L
DEGT
8438400000
The main raw materials for brewing beer are malt, hops, yeast and water. Mash plays an important role in the brewing process. Mash directly affects the cost of beer production and also affects the quality of beer. At the same time, mash is also affected by temperature, time, pH and so on.

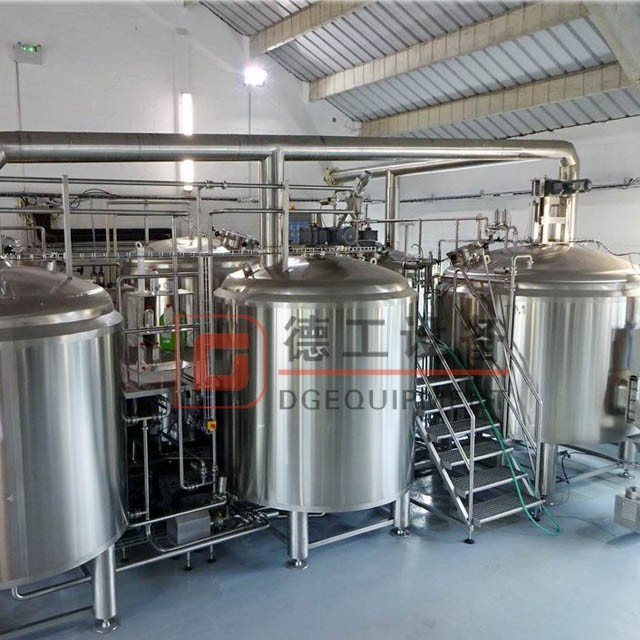

4-vessel brewhouse unit
The mash unit ( brewhouse unit) is one important part for 2500L beer brewing system. Generally it is combined vessels of the mash tun, lauter tun, boiling tun and whirlpool tun.
But You can also compose your own, in the following ways:
2-vessel brewhouse: Mash/Lauter Tun ( with false bottom)+ Boiling/Whirlpool Tun
3-vessel brewhouse: Mash Tun + Lauter Tun + Boiling/whirlpool tun
4-vessel brewhouse: Mash Tun + Lauter Tun +Boiling tun + Whirlpool tun
can be steam heating, electric heating and direct fire heating.
The steam heating need a boiler,there is electric boiler, gas boiler and diesel boiler.The electric heating need electric heating tube.
The steam heating mash unit is quite popular for most of micro and commercial beer brewery plant exceed 500L. Compared with electric heating, it is more easily to get better quality wort with steam heating. As we know the steam will circulated around the kettle instead of contacted with wort directly. Besides, the heating strength can be easily controlled by adjusting the flow and pressure of steam.
Interior Shell: SUS304/316 full welded; TH=3mm
Exterior Shell:SUS304/316 full welded; TH=2mm
100mm polyurethane for insulation
Acid washing and passivating the Interior finish to 0.4um
Speed adjustable grain rake (scraper blade for optional)
False Bottom/Filter
Steam condenser with spray nozzles
Completely stainless steel work platform
20 m2 Two stages or single stage plate heat exchanger
PLC control panel
Wort pump & hot water tank
Stainless steel 304/316 operation platform
Mash system details
If you want to know about 2500L brewhouse unit, please get in touch with me freely.
