| Material: | |
|---|---|
| Manhole: | |
| Jacket: | |
| Quantity: | |
DEGT-1200L
DEGT
8438400000
1200L brewery equipment brief introduction
Beer brewery equipment feature:
Installation and training service offered by profession engineer.
Brewhouse Combination Diversification
Decoction, infusion, multi-step infusion mashing can be realized.
Electric, Steam, Gas directly fire heating source for optional
Mirror polishing and wire drawing SUS 304 for optional, thickness: 3-4mm
Rational layout, Humanized design and convenient operation
The welding and polishing:
We make sure the 100% TIG welding with pure argon gas shield. We use the central system of argon, instead of ordinary gas cylinder. The argon will help to reduce the oxygenation. After welding, they will be polished to arrive to 0.4 μm without dead corner firstly, then do acid pickling and passivation.

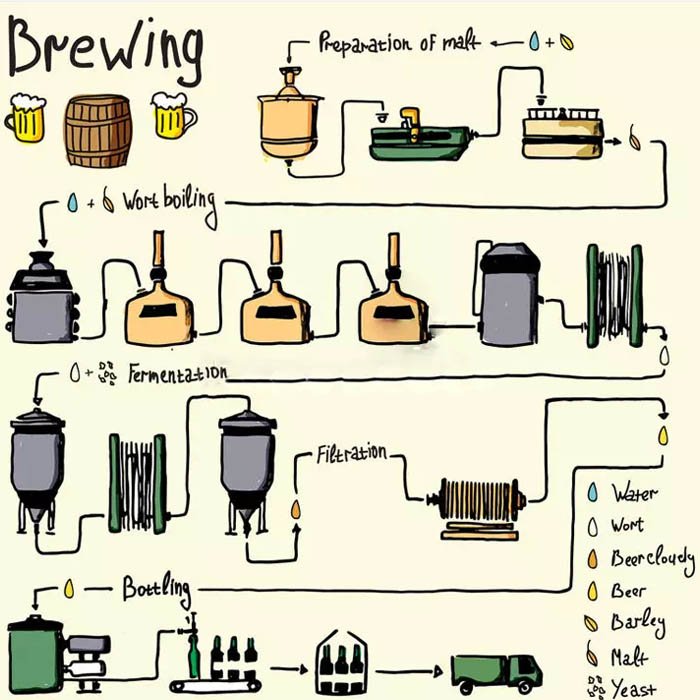

Brewing process:
Mill→brewhouse unit→fermentation tank→bright beer tank→filtration→bottling→beer
Mill unit:
Malt is ground in the grain mill, the griat is manually introtuced through the access hatch.Malt and grain raw materials can be well dissolved after being crushed, and the crushing quality plays an important role in the composition of wort.

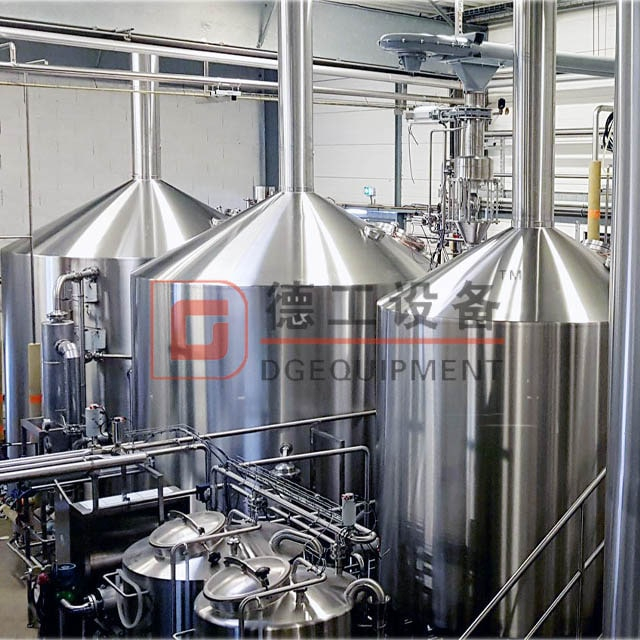

Brewhouse unit:
(1200L 3-vessel, Heating method can be steam heating, electric heating and direct fire heating )
Mash/lauter tun + Boiling/whirlpool tun + Hot water tank:
Material: stainless steel 304
Inner surface treatment:welds grinded to 0.6μm.
Insulation: Polyurethane-thickness 100mm
Temperature way:Double matal thermometer
Outsourcing surface: Weld polishing processing
CIP 360 degrees Omni bearing cleaning
Fermentation vessel
(According to the specification of tank types, the corresponding specification and model of sanitary clamp joint would be equipped)
Configuration: Fermentation tank + Bright beer tank(also can be horizontal large tank) + Yeast adding tank+Accessories

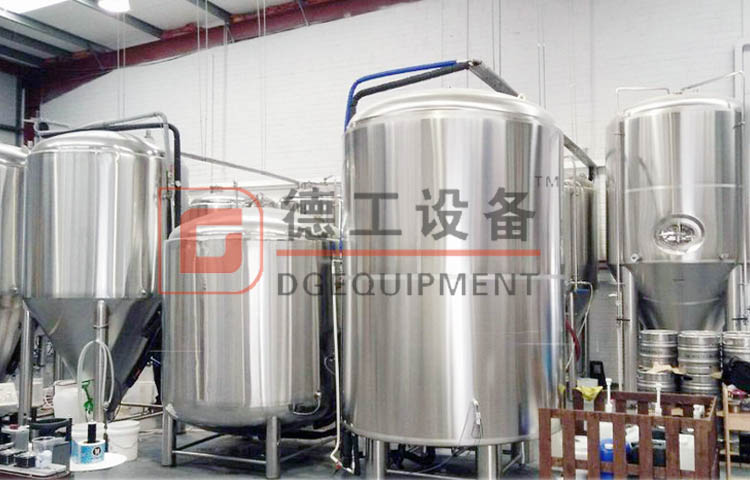

Fermentation tank + bright beer tank
horizontal large tank
Cooling system
(glycol tank + refrigeration unit)
Glycol cooling system
Function: Used for cooling wort in heat exchanger when it finished the mashing in brewhouse, and cooling wort in fermentation tank in the fermenting period.
Component: Ice water tank, solenoid valve, glycol water ump, stainless pipeline and etc.
Cooling method: Two stage cooling (Glycol water and tap water work cooling).
Control method: Automatically by PLC controller cabinet.
Control system
(automatic or semi-automatic)
Electrical controlling cabinet with temperature, on-off controlling for brewhouse
Electrical controlling cabinet with temperature, on-off controlling for cooling parts
Temperature controller, thermocouple, solenoid valves etc are included
PLC with touch screen panel for special request
If you want to order brewery equipment, please get in touch with me any time.
